Oxygen Sensors - Rear (LGX)

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

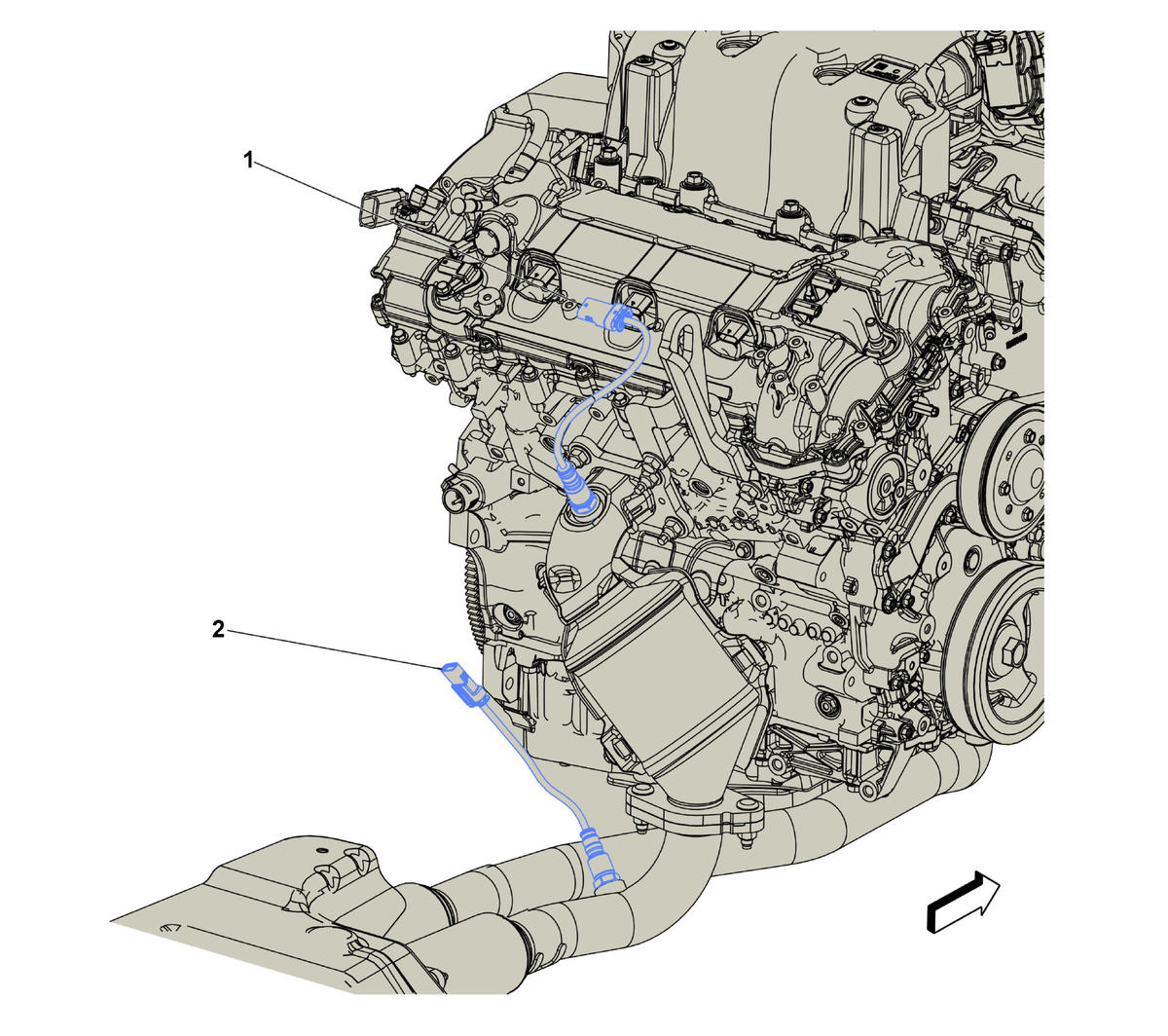

GM4341296Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Items
1. B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LGX) B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LGX)
2. B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LGX) B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LGX)
