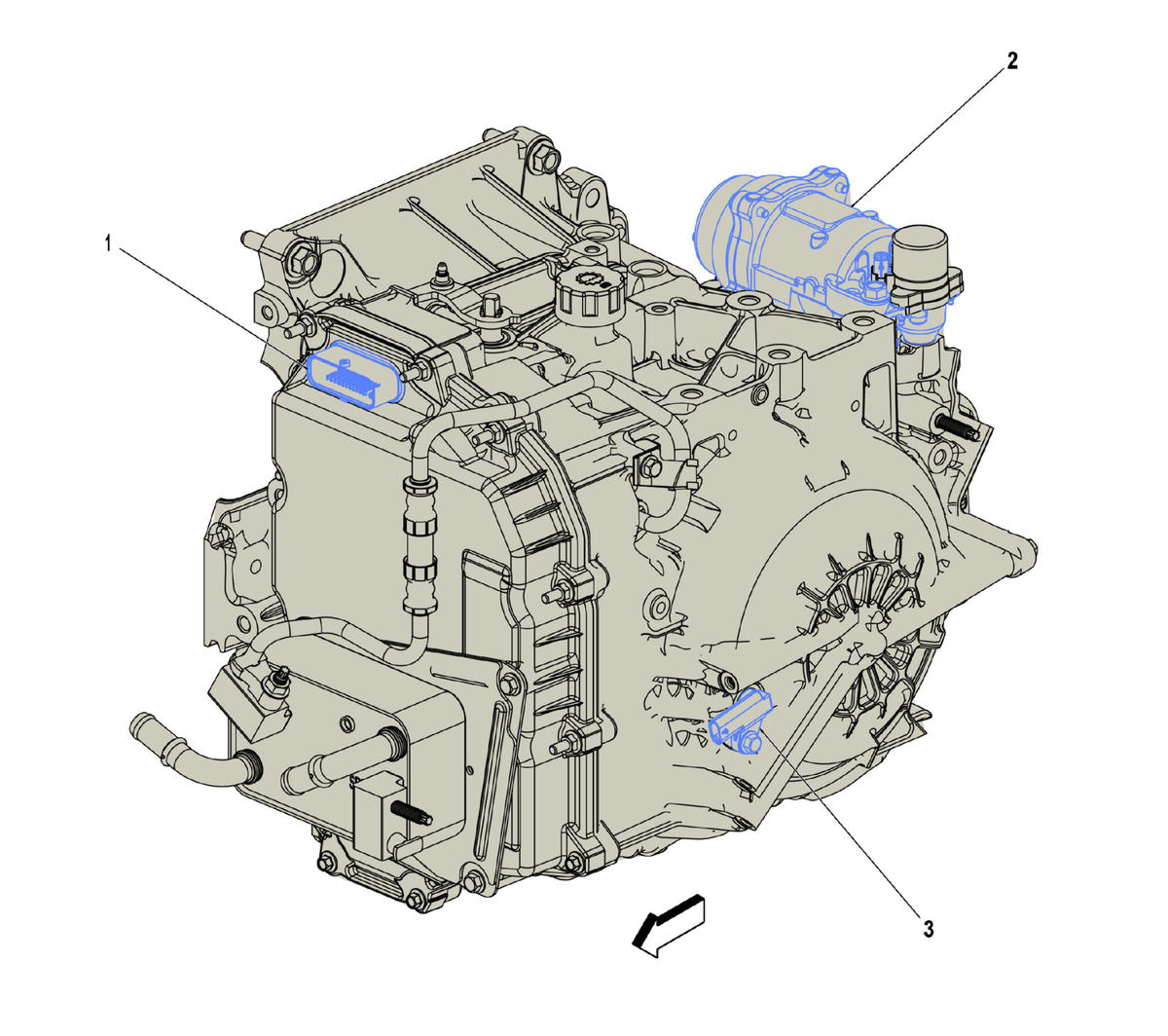

Left Side of Transmission Components
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. T12 Automatic Transmission Assembly T12 Automatic Transmission Assembly X1 (LGX) , or T12 Automatic Transmission Assembly X1 (LSY) , or T12 Automatic Transmission Assembly X2 , or T12 Automatic Transmission Assembly X3 |
| 2. B280 Automatic Transmission Accumulator Solenoid Valve (M2D) |
| 3. B14E Transmission Input/Intermediate Shaft Speed Sensor |
