Engine Components - Front (LGX)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

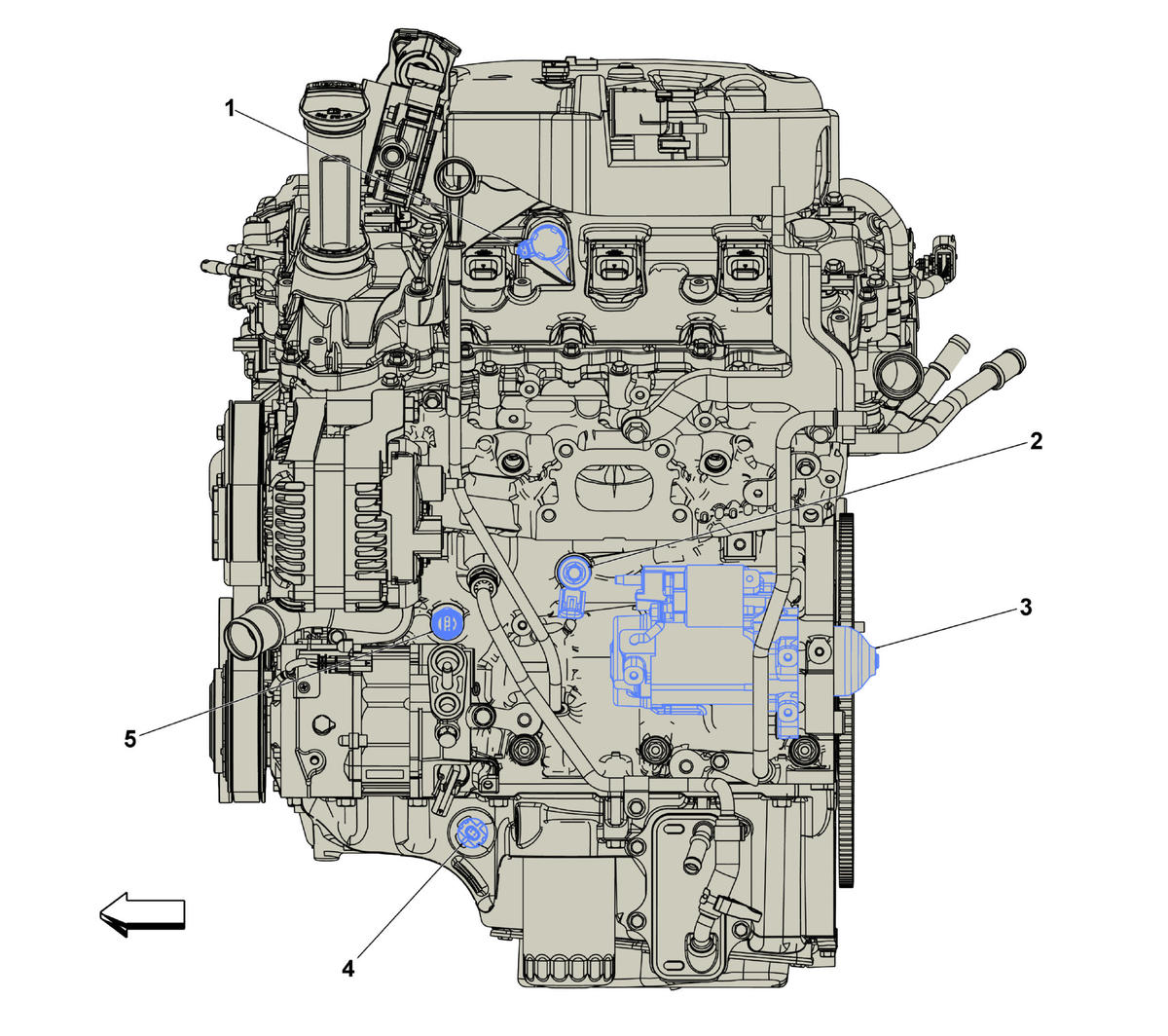

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. Q83B Valve Lifter Oil Solenoid Valve - Bank 2 (LGX) Q83B Valve Lifter Oil Solenoid Valve - Bank 2 (LGX) |
| 2. B68B Knock Sensor 2 B68B Knock Sensor 2 (LGX) |
| 3. M64 Starter Motor M64 Starter Motor X1 , or M64 Starter Motor X2 |
| 4. B35 Engine Oil Level Switch B35 Engine Oil Level Switch (LGX) |
| 5. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor |
