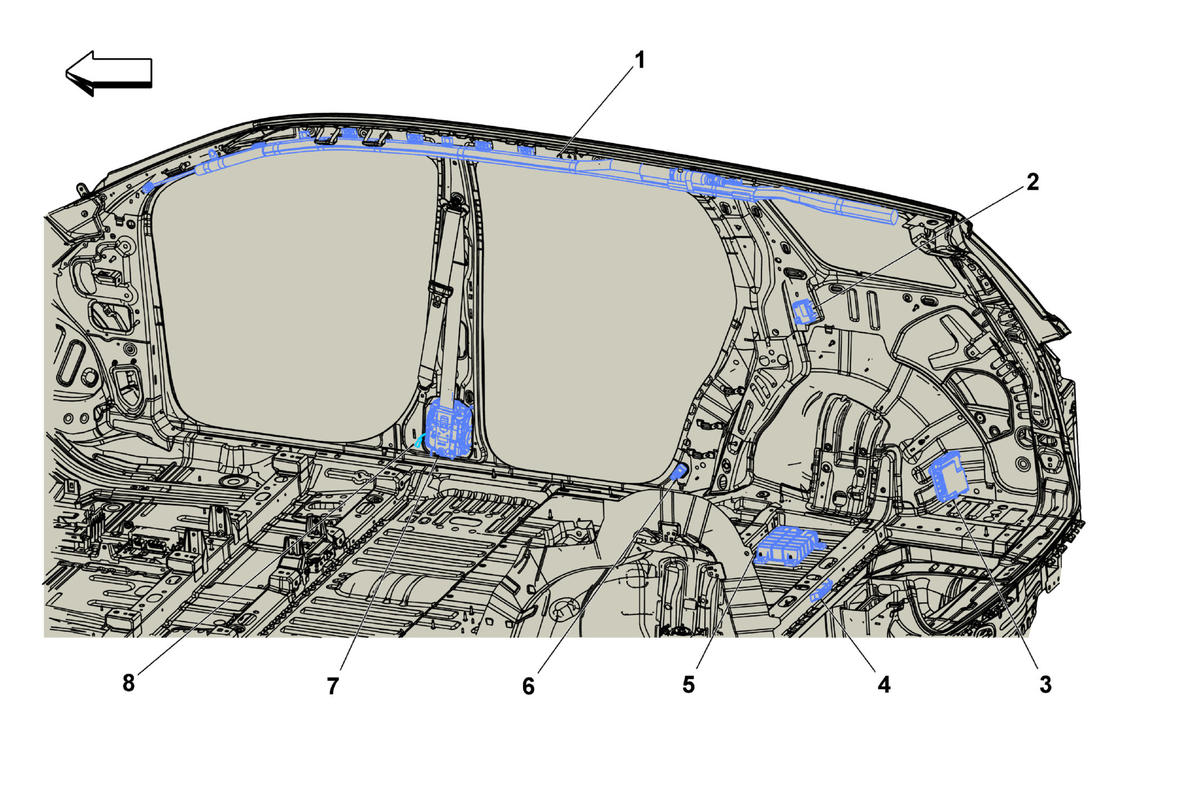

Right Rear Side of Passenger Components
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. F105R Roof Rail Air Bag - Right F105R Roof Rail Air Bag - Right |
| 2. K77 Remote Control Door Lock Receiver K77 Remote Control Door Lock Receiver |
| 3. K84 Keyless Entry Control Module K84 Keyless Entry Control Module X1 , or K84 Keyless Entry Control Module X2 |
| 4. T10E Keyless Entry Antenna - Rear Compartment T10E Keyless Entry Antenna - Rear Compartment |
| 5. K19 Suspension Control Module (F45/F48) K19 Suspension Control Module (F45) |
| 6. B63RR Side Impact Sensor - Right Rear B63RR Side Impact Sensor - Right Rear |
| 7. F112P Seat Belt Retractor Pretensioner - Passenger F112P Seat Belt Retractor Pretensioner - Passenger |
| 8. B61P Seat Belt Tension Sensor - Passenger (AL0) B61P Seat Belt Tension Sensor - Passenger (ALO) |
