Passenger Seat Components
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

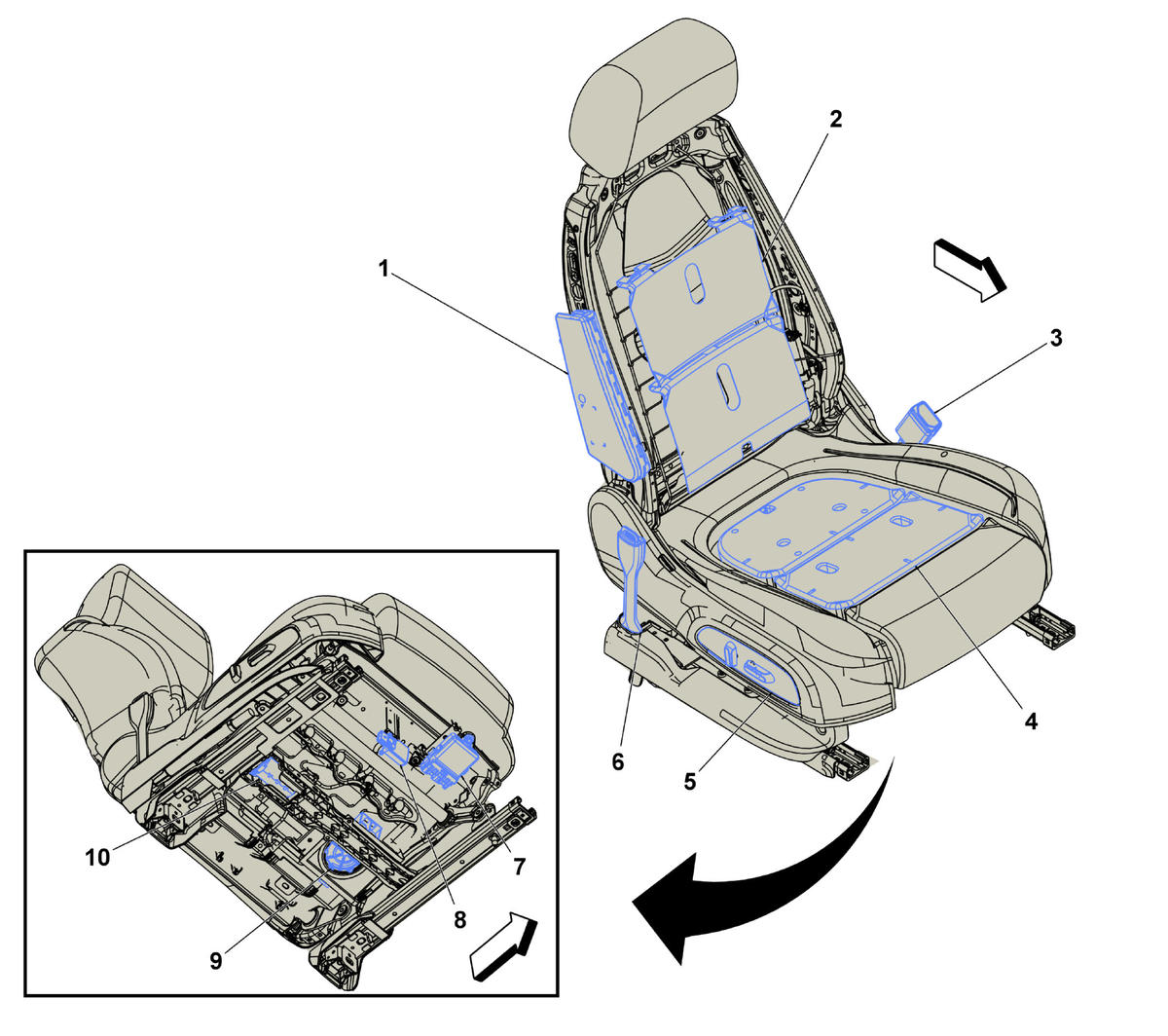

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. F106P Seat Side Air Bag - Passenger F106P Seat Side Air Bag - Passenger |
| 2. E14C Seat Heating Element - Passenger Back (KA1) E14C Seat Heating Element - Passenger Back (KA1) |
| 3. B153P Seat Belt Buckle - Passenger |
| 4. E14D Seat Heating Element - Passenger Cushion (KA1) |
| 5. S64P Seat Adjuster Switch - Passenger (AH8) S64P Seat Adjuster Switch - Passenger |
| 6. F113P Seat Belt Anchor Pretensioner - Passenger F113P Seat Belt Anchor Pretensioner - Passenger |
| 7. K29F Seat Heating Control Module - Front (KA1) |
| 8. K85 Passenger Presence Module (AL0) K85 Passenger Presence Module |
| 9. M73D Seat Blower Motor - Passenger Cushion (KU9) M73D Seat Blower Motor - Passenger Cushion (KU9) |
| 10. M51P Seat Horizontal Motor - Passenger (AH8) M51P Seat Horizontal Motor - Passenger (A7K) |
