Headliner Components
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

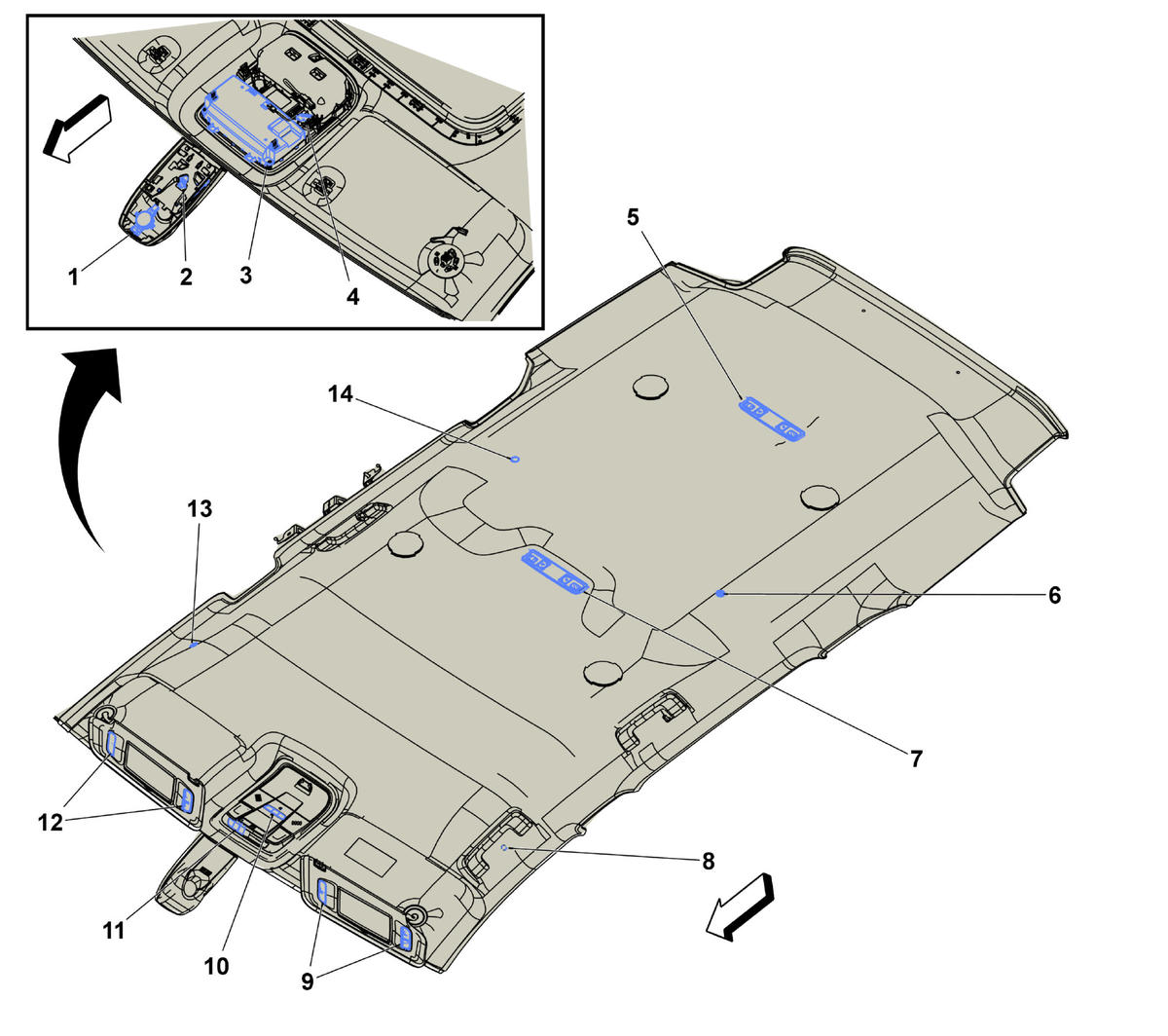

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. B160 Windshield Temperature and Inside Moisture Sensor (ASV) B160 Windshield Temperature and Inside Moisture Sensor (ASV) |
| 2. B174W Frontview Camera - Windshield (UEU/UGN) B174W Frontview Camera - Windshield (UEU/UGN) |
| 3. S48B Multifunction Switch - Overhead Console S48B Multifunction Switch - Overhead Console |
| 4. B24 Mobile Telephone Microphone B24 Mobile Telephone Microphone |
| 5. E37R Dome/Reading Lamps - Rear E37R Dome/Reading Lamps - Rear |
| 6. B77RR Radio Volume Compensator Interior Noise Microphone - Right Rear (NKC) B77RR Radio Volume Compensator Interior Noise Microphone - Right Rear (NKC) |
| 7. E37M Dome/Reading Lamps - Middle E37M Dome/Reading Lamps - Middle |
| 8. B77RF Radio Volume Compensator Interior Noise Microphone - Right Front (NKC) B77RF Radio Volume Compensator Interior Noise Microphone - Right Front (NKC) |
| 9. A3R Sunshade - Right A3R Sunshade - Right |
| 10. S25 Garage Door Opener (UG1) S25 Garage Door Opener (UG1) |
| 11. A98 Front Overhead Console Assembly |
| 12. A3L Sunshade - Left A3L Sunshade - Left |
| 13. B77LF Radio Volume Compensator Interior Noise Microphone - Left Front (NKC) B77LF Radio Volume Compensator Interior Noise Microphone - Left Front (NKC) |
| 14. B77LR Radio Volume Compensator Interior Noise Microphone - Left Rear (NKC) B77LR Radio Volume Compensator Interior Noise Microphone - Left Rear (NKC) |
