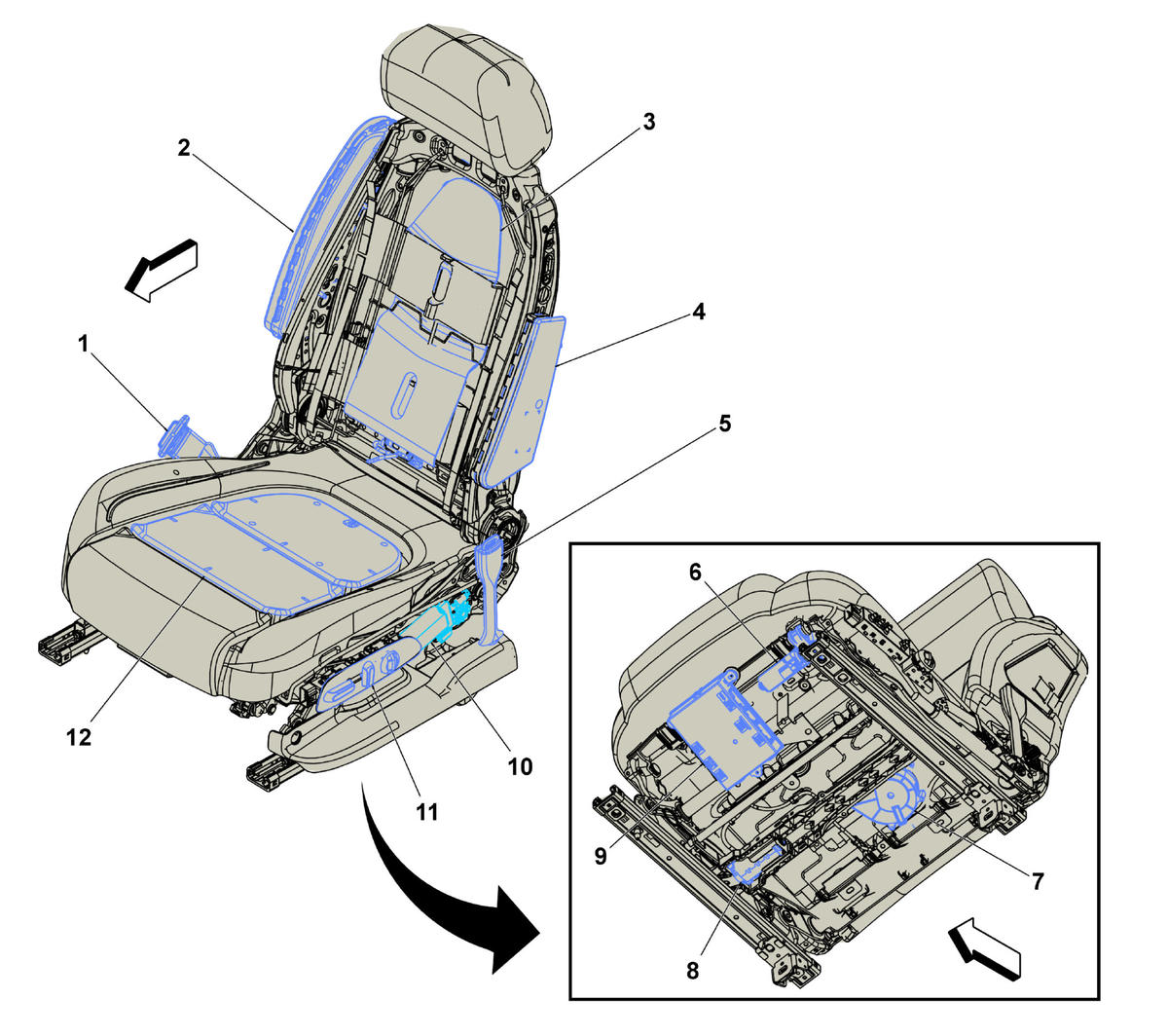

Driver Seat Components

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callouts items in the following chart represent components shown in graphic above.

Items
1. B153D Seat Belt Buckle - Driver B153D Seat Belt Buckle - Driver
2. F106DA Seat Side Air Bag - Driver Inboard F106DA Seat Side Air Bag - Driver Inboard
3. E14A Seat Heating Element - Driver Back (KA1) E14A Seat Heating Element - Driver Back (KA1)
4. F106D Seat Side Air Bag - Driver F106D Seat Side Air Bag - Driver
5. F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver X1 , or F113D Seat Belt Anchor Pretensioner - Driver X2
6. M50D Seat Front Vertical Motor - Driver (AHT) M50D Seat Front Vertical Motor - Driver (AHT)
7. M73C Seat Blower Motor - Driver Cushion (KU9) M73C Seat Blower Motor - Driver Cushion (KU9)
8. M51D Seat Horizontal Motor - Driver (AHT) M51D Seat Horizontal Motor - Driver
9. K40 Seat Memory Control Module K40 Seat Memory Control Module X1 (AAB) , or K40 Seat Memory Control Module X2 (AAB) , or K40 Seat Memory Control Module X3 , or K40 Seat Memory Control Module X5 , or K40 Seat Memory Control Module X6 (AAB)
10. M55D Seat Rear Vertical Motor - Driver (AHT) M55D Seat Rear Vertical Motor - Driver (AHT)
11. S64D Seat Adjuster Switch - Driver (AHT) S64D Seat Adjuster Switch - Driver (AHT)
12. E14B Seat Heating Element - Driver Cushion (KA1) E14B Seat Heating Element - Driver Cushion (KA1)
