Rear of Vehicle Components
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

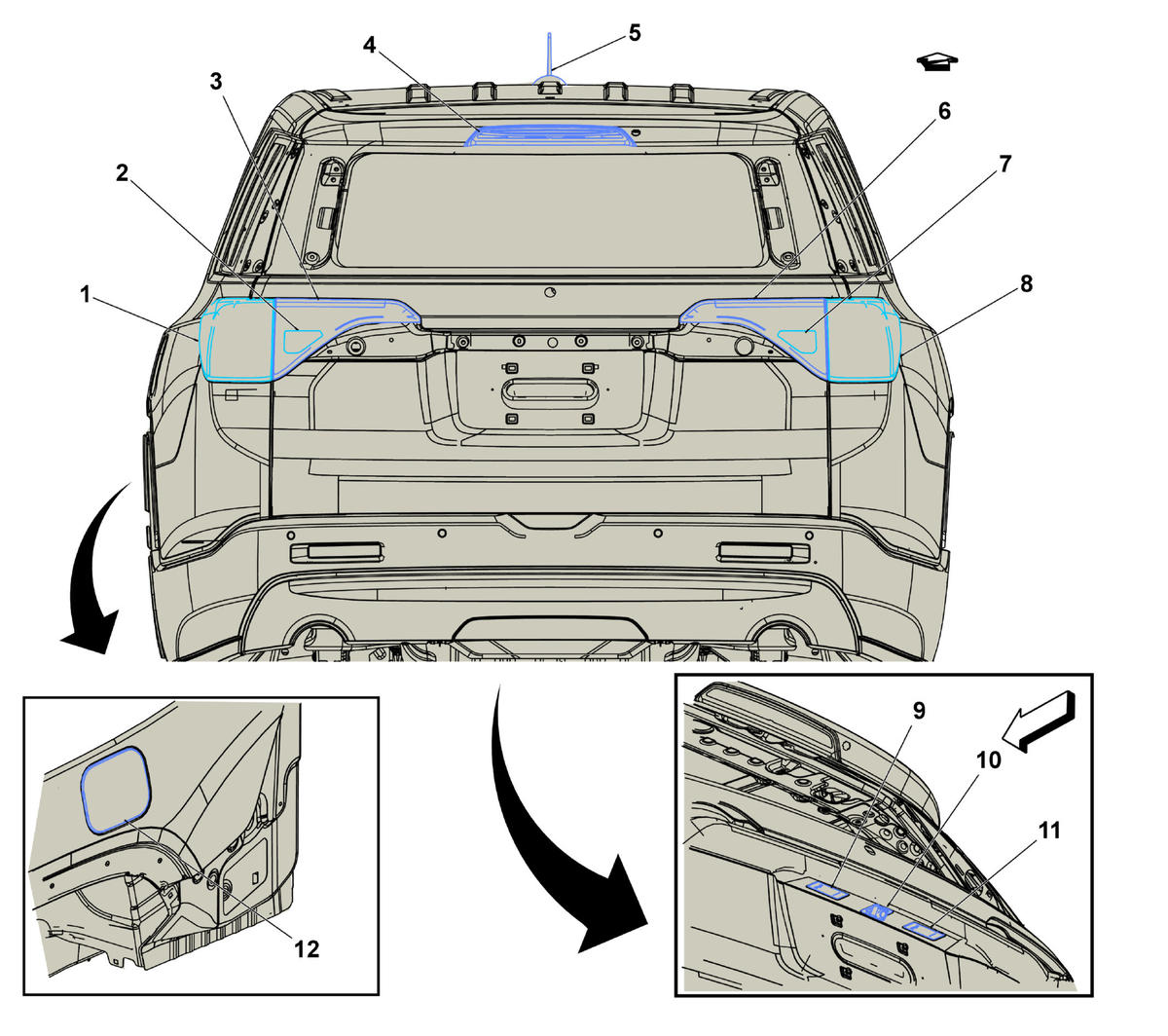

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. E42L Tail Lamp Assembly - Left |
| 2. E5A Backup Lamp - Left |
| 3. E43L Liftgate Tail Lamp Assembly - Left |
| 4. E6 Center High Mounted Stop Lamp E6 Center High Mounted Stop Lamp |
| 5. T2RR Antenna - Roof Rear |
| 6. E43R Liftgate Tail Lamp Assembly - Right |
| 7. E5B Backup Lamp - Right |
| 8. E43R Liftgate Tail Lamp Assembly - Right |
| 9. E7L License Plate Lamp - Left |
| 10. B87 Rearview Camera (UVC) B352 Video Display Inside Rearview Mirror Camera (DRZ) , or B87 Rearview Camera (UV2)B87 Rearview Camera (UVB) |
| 11. E7R License Plate Lamp - Right |
| 12. M97 Fuel Fill Door Lock Actuator (N08) M97 Fuel Fill Door Lock Actuator (N08) |
