Rear Fascia Components
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

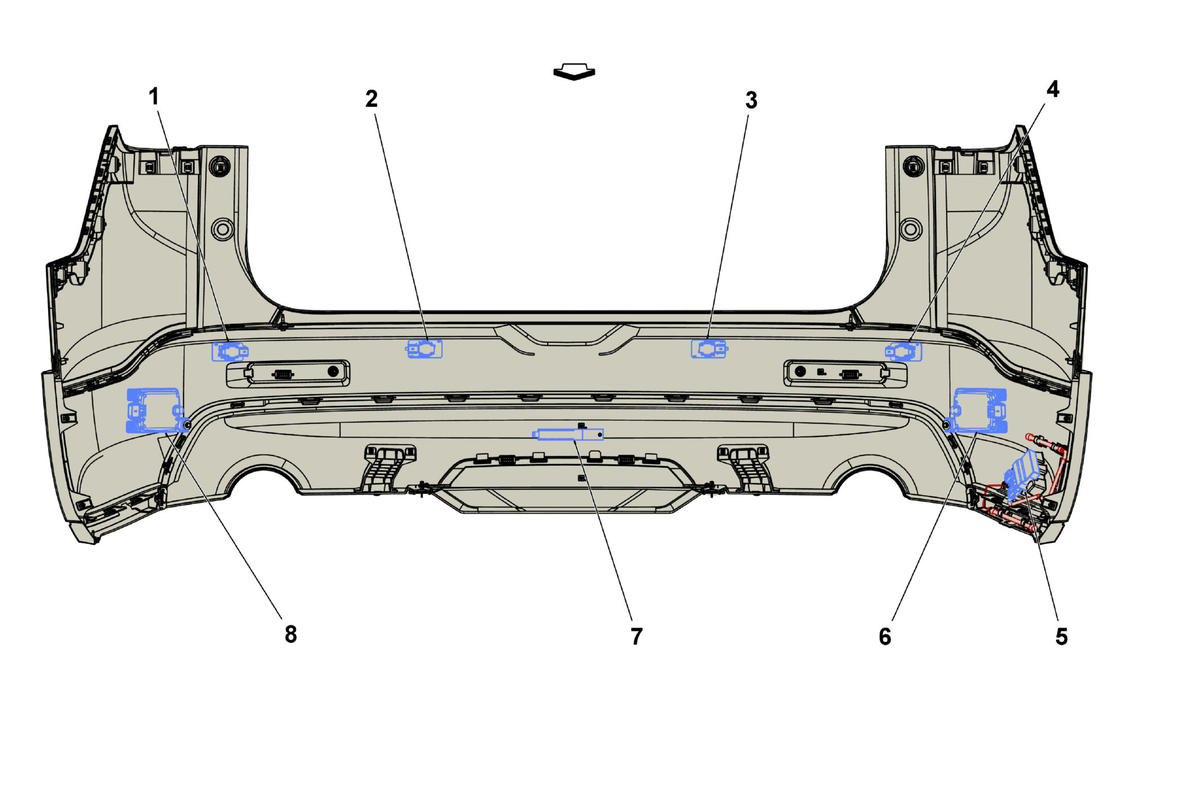

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. B306H Parking Assist Sensor - Rear Right Outer (UD5/UD7) B306H Parking Assist Sensor - Rear Right Outer (UD5/UD7) |
| 2. B306G Parking Assist Sensor - Rear Right Middle (UD5/UD7) B306G Parking Assist Sensor - Rear Right Middle (UD5/UD7) |
| 3. B306F Parking Assist Sensor - Rear Left Middle (UD5/UD7) B306F Parking Assist Sensor - Rear Left Middle (UD5/UD7) |
| 4. B306E Parking Assist Sensor - Rear Left Outer (UD5/UD7) B306E Parking Assist Sensor - Rear Left Outer (UD5/UD7) |
| 5. K171 Hands-Free Liftgate Sensor Control Module (TC2) K171 Hands-Free Liftgate Sensor Control Module (TC2) |
| 6. B218L Side Object Sensor Module - Left (UKC) B218L Side Object Sensor Module - Left (UKC) |
| 7. T10G Keyless Entry Antenna - Rear Fascia T10G Keyless Entry Antenna - Rear Fascia |
| 8. B218R Side Object Sensor Module - Right (UKC) B218R Side Object Sensor Module - Right (UKC) |
