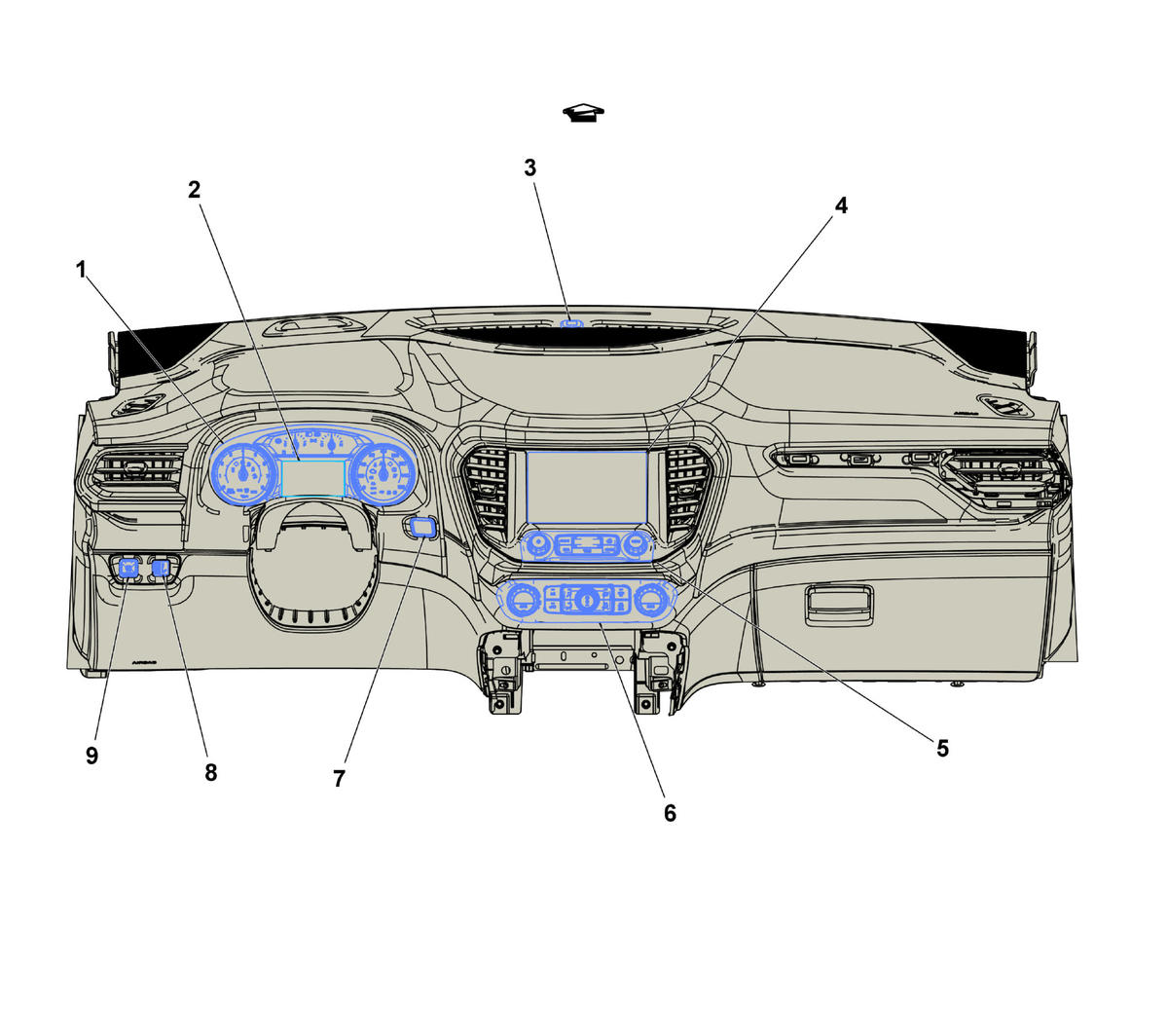

Front of the Instrument Panel Components
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. P16 Instrument Cluster P16 Instrument Cluster X1 , or P16 Instrument Cluster X2 |
| 2. P9 Driver Information Center Display |
| 3. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 4. P17 Info Display Module P17 Info Display Module X1 , or P17 Info Display Module X2 (-(IOS/IOT/IOU)) , or P17 Info Display Module X2 (IOS/IOT/IOU) |
| 5. A22 Radio Controls (IOB) |
| 6. A26 HVAC Controls |
| 7. S38 Ignition Mode Switch S38 Ignition Mode Switch |
| 8. S36 Instrument Panel Dimmer Switch S36 Instrument Panel Dimmer Switch |
| 9. B80 Park Brake Switch (J77) B80 Park Brake Switch (J77) |
