Below Left Side of the Instrument Panel Components

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
GM4341317Courtesy of GENERAL MOTORS COMPANY

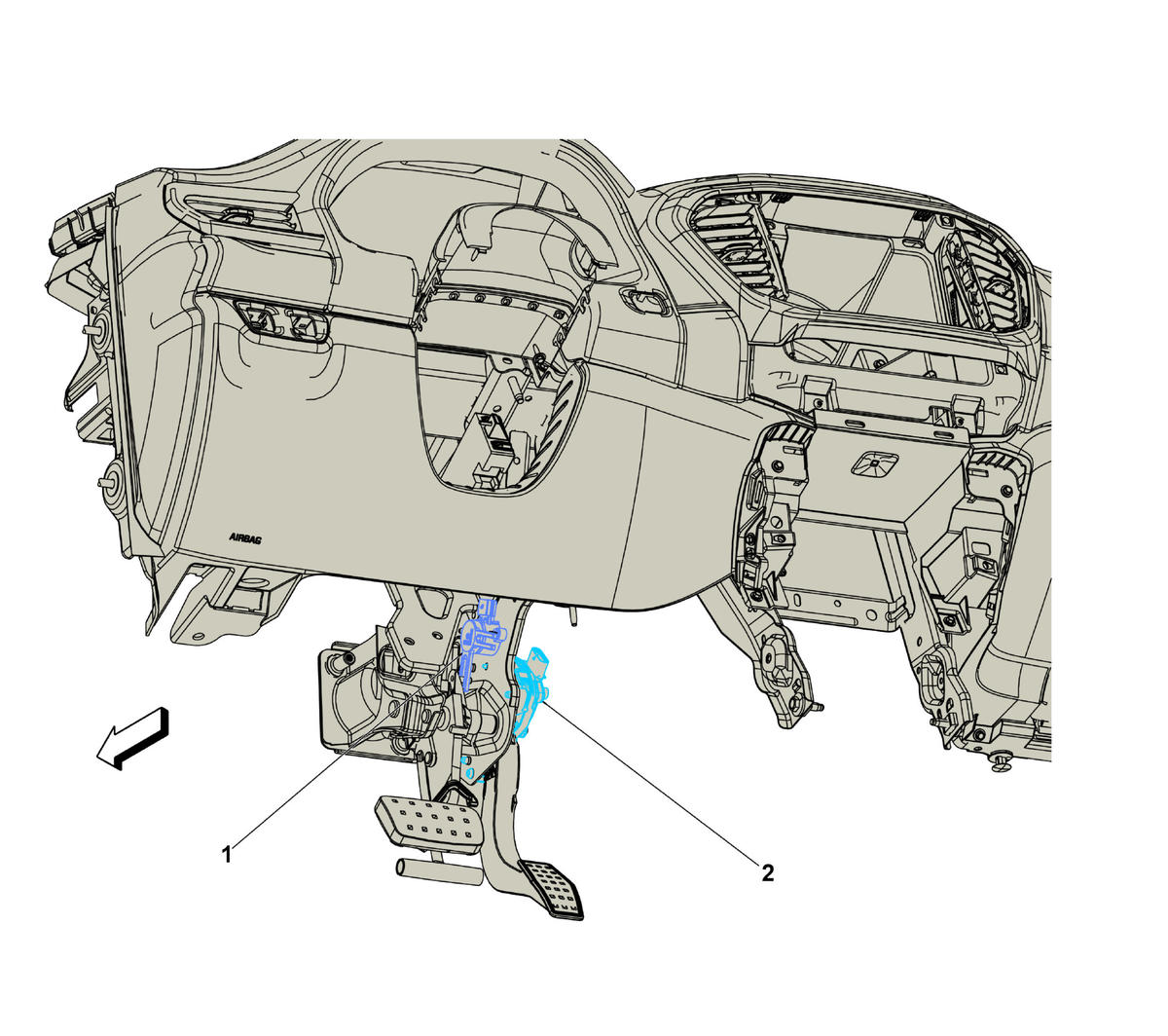

NOTE: Callouts items in the following chart represent components shown in graphic above.
Items
1. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor
2. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
