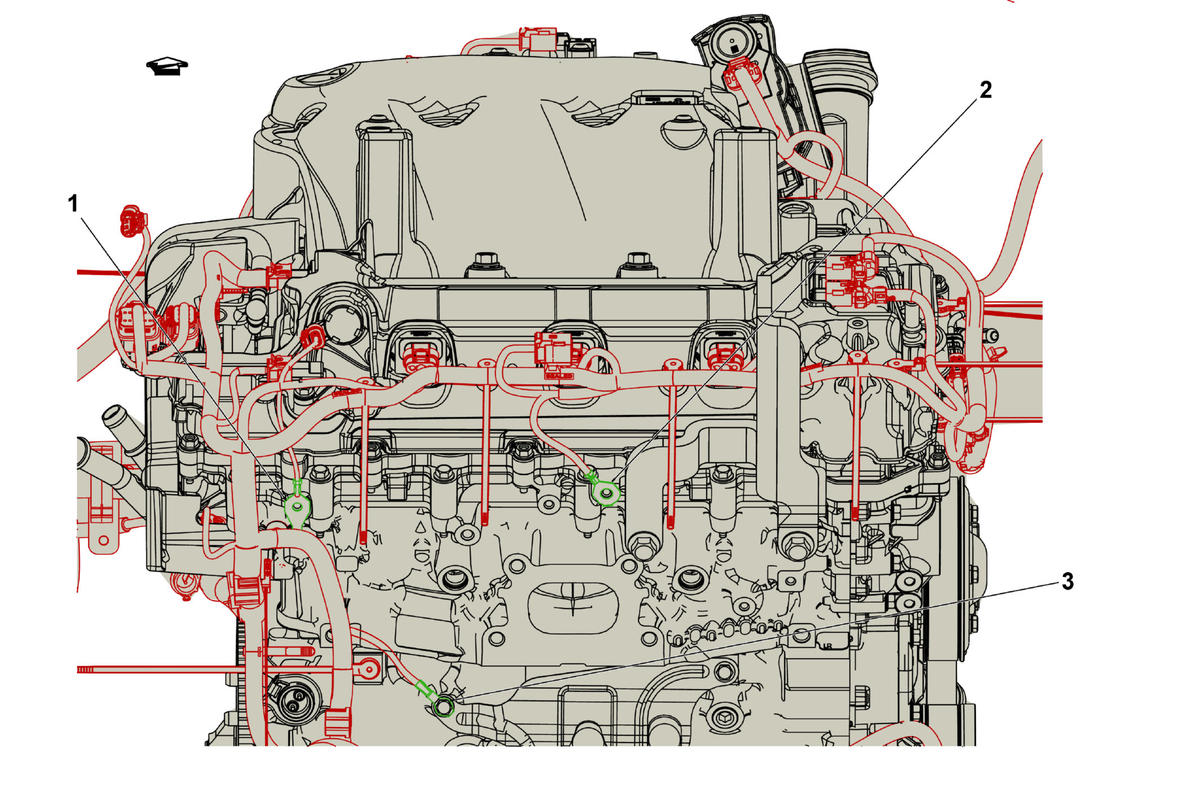

G106 (LGX), and G110 (LGX)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:
Callouts items in the following chart represent components shown in graphic above.
| Items |
| 1. G110 Engine Harness |
| 2. G106 Engine Harness |
| 3. G104 Battery Harness |
