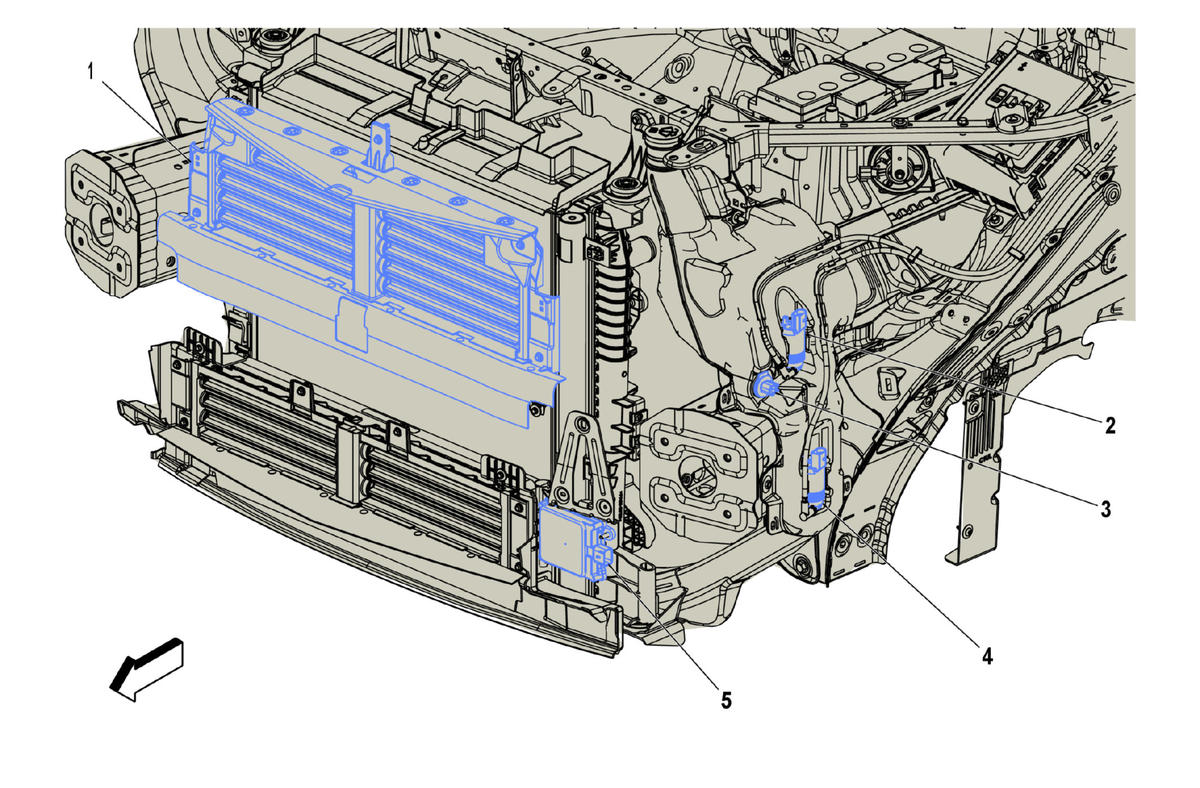

Left Front of Engine Compartment Components
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. M96A Active Grille Air Shutter 1 Actuator (WMI) M96A Active Grille Air Shutter 1 Actuator (WMI) |
| 2. G19 Rear Window Washer Pump G19 Rear Window Washer Pump |
| 3. B118B Windshield Washer Fluid Level Switch B118B Windshield Washer Fluid Level Switch |
| 4. G24 Windshield Washer Pump G24 Windshield Washer Pump |
| 5. B233B Radar Sensor Module - Long Range (UGN) B233B Radar Sensor Module - Long Range (UGN) |
