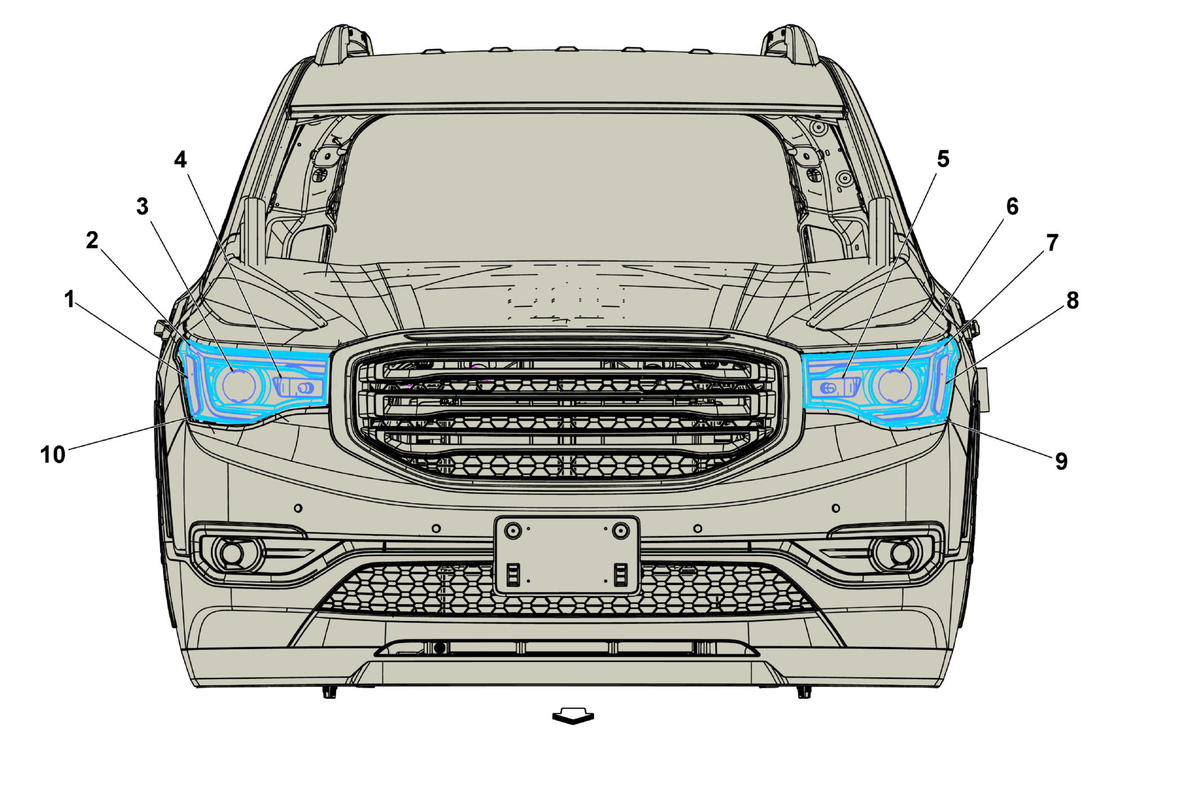

Front of Vehicle Components
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. E2RF Side Marker Lamp - Right Front |
| 2. E4AD Park/Daytime Running Lamp - Right |
| 3. E4H Headlamp - Right Low Beam |
| 4. E4P Park/Turn Signal Lamp - Right |
| 5. E4N Park/Turn Signal Lamp - Left |
| 6. E4G Headlamp - Left Low Beam |
| 7. E4AC Park/Daytime Running Lamp - Left |
| 8. E2LF Side Marker Lamp - Left Front |
| 9. E13LA Headlamp Assembly - Left |
| 10. E13RA Headlamp Assembly - Right |
