Front Fascia Components
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

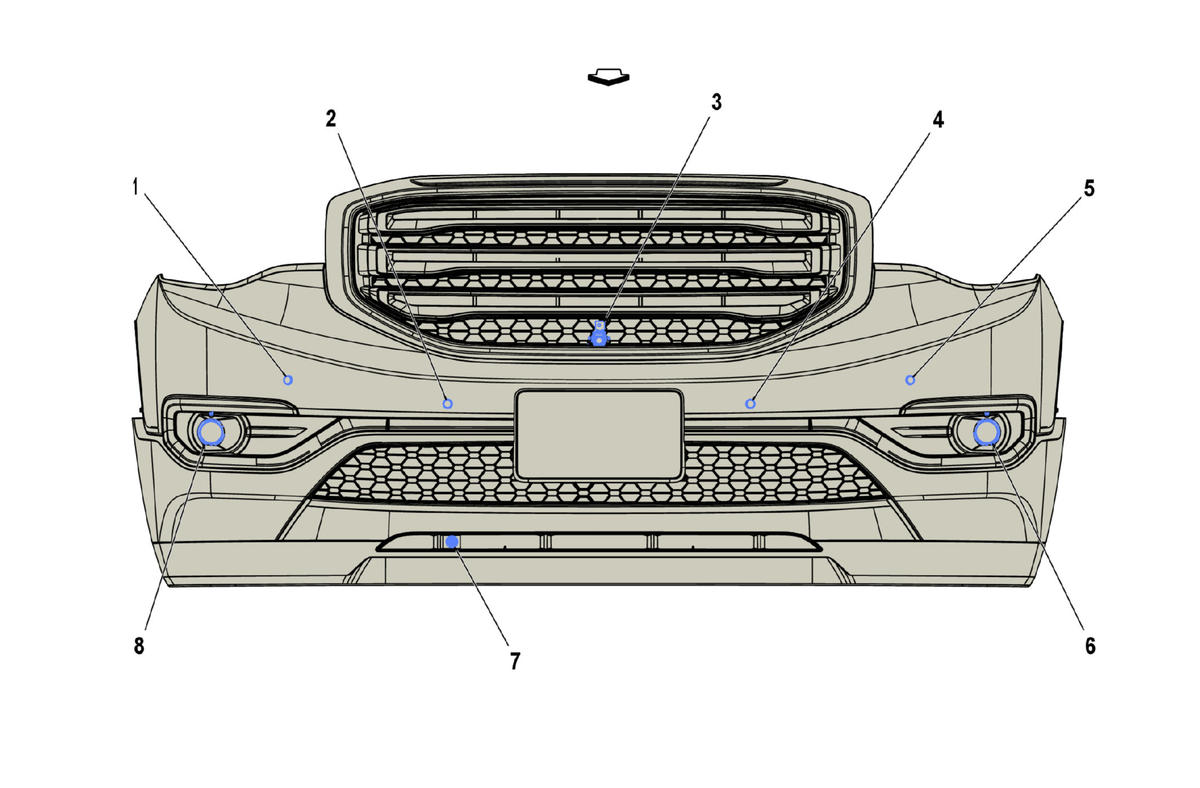

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. B306D Parking Assist Sensor - Front Right Outer (UD5) B306D Parking Assist Sensor - Front Right Outer (UD5) |
| 2. B306C Parking Assist Sensor - Front Right Middle (UD5) B306C Parking Assist Sensor - Front Right Middle (UD5) |
| 3. B174F Frontview Camera - Fascia (UV2) |
| 4. B306B Parking Assist Sensor - Front Left Middle (UD5) |
| 5. B306A Parking Assist Sensor - Front Left Outer (UD5) B306A Parking Assist Sensor - Front Left Outer (UD5) |
| 6. E29LF Fog Lamp - Left Front (T3Y) E29LF Fog Lamp - Left Front (T3Y) |
| 7. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor |
| 8. E29RF Fog Lamp - Right Front (T3Y) E29RF Fog Lamp - Right Front (T3Y) |
