Right Rear Door Components
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

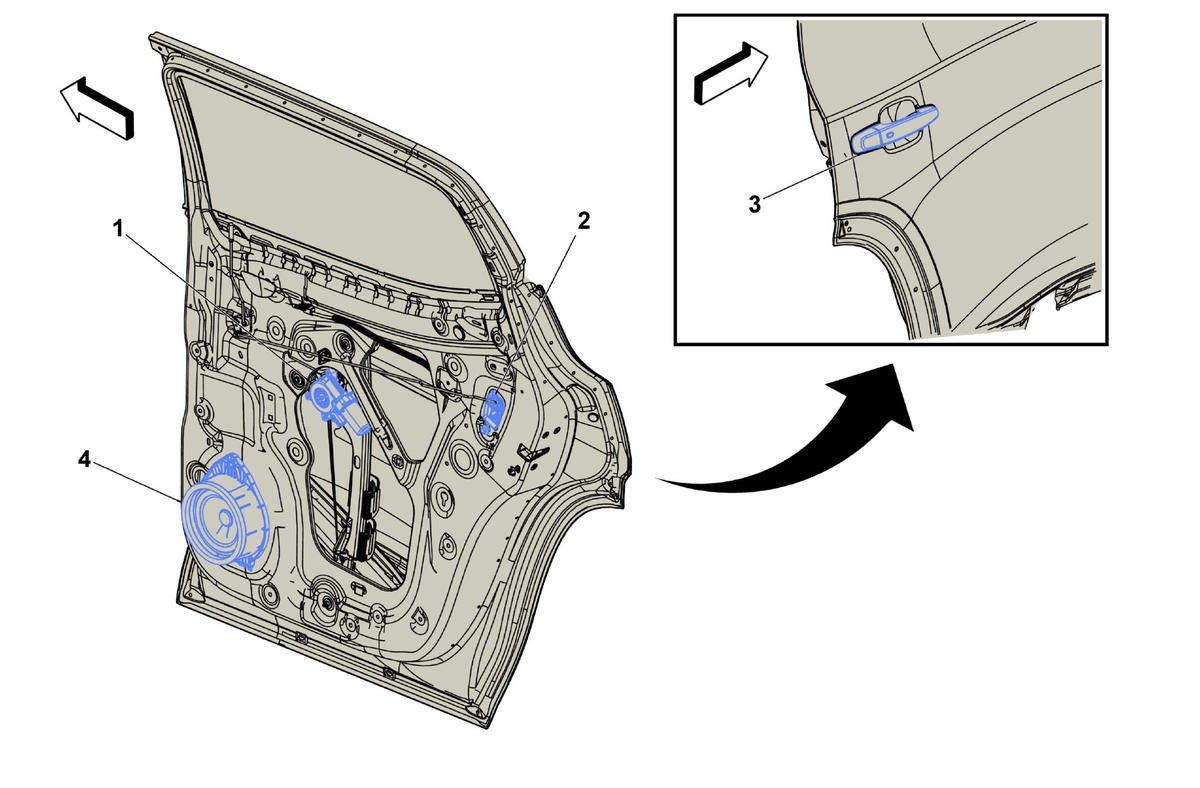

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. M74RR Window Motor - Right Rear (AEQ) M74RR Window Motor - Right Rear (AEQ) |
| 2. A23RR Door Latch Assembly - Right Rear A23RR Door Latch Assembly - Right Rear |
| 3. A24RR Door Handle Assembly - Right Rear Exterior (ATH/ATS) A24RR Door Handle Assembly - Right Rear Exterior (ATH/ATS) |
| 4. P19AM Speaker - Right Rear Door P19AM Speaker - Right Rear Door (UQA) , or P19AM Speaker - Right Rear Door (UQF) |
