Passenger Door Components

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

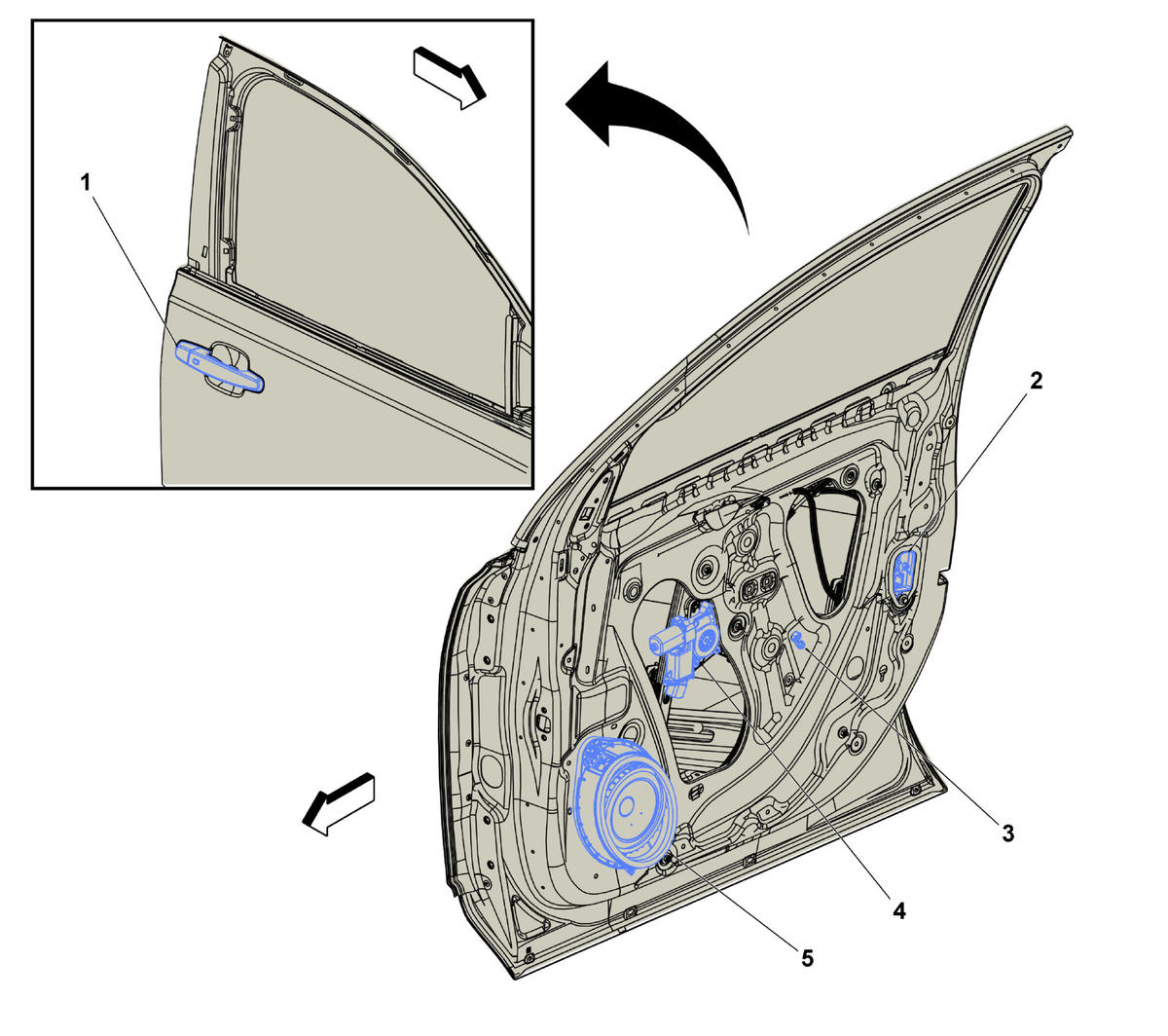

NOTE: Callouts items in the following chart represent components shown in graphic above.

Items
1. A24P Door Handle Assembly - Passenger Exterior (ATH/ATS) A24P Door Handle Assembly - Passenger Exterior (ATH/ATS)
2. A23P Door Latch Assembly - Passenger (AED) A23P Door Latch Assembly - Passenger (AED)
3. B63RF Side Impact Sensor - Right Front B63RF Side Impact Sensor - Right Front
4. M74P Window Motor - Passenger (AED) M74P Window Motor - Passenger (AED)
5. P19AH Speaker - Right Front Door P19AH Speaker - Right Front Door (UQA) , or P19AH Speaker - Right Front Door (UQF)
