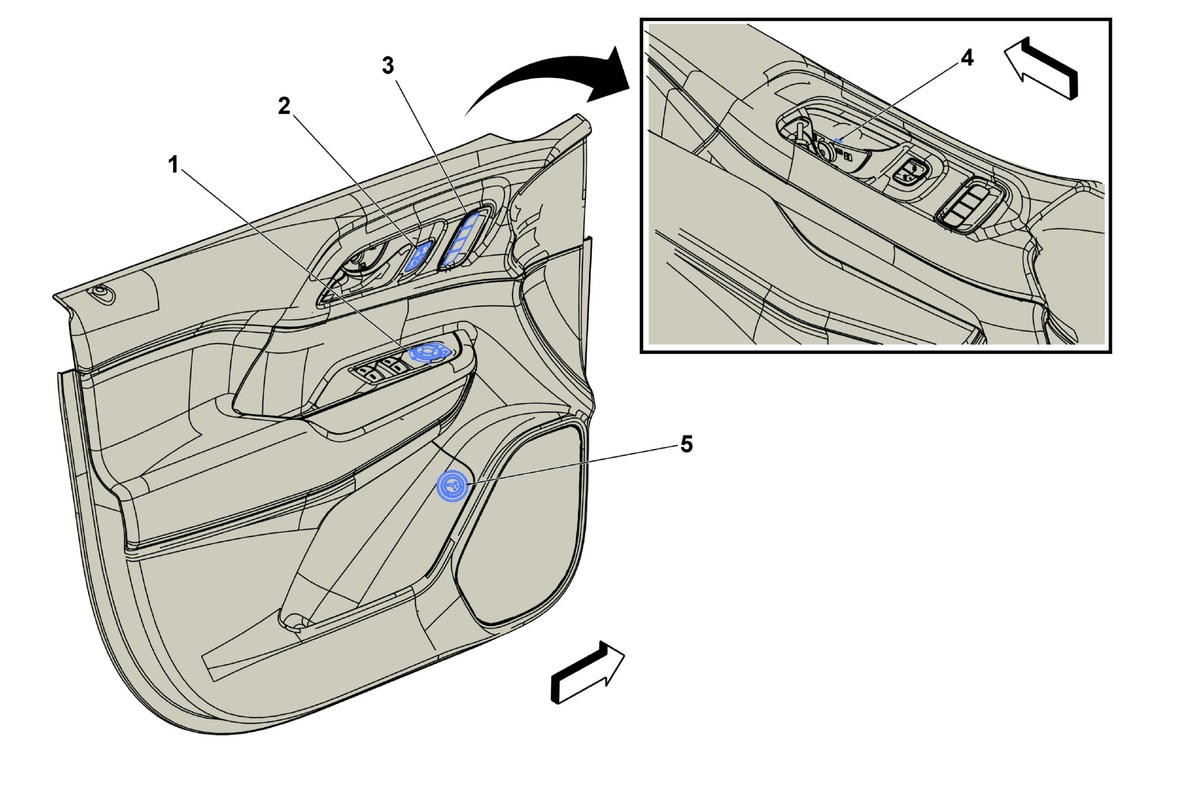

Driver Door Trim Components
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. S79D Window Switch - Driver S79D Window Switch - Driver |
| 2. S13D Door Lock Switch - Driver S13D Door Lock Switch - Driver |
| 3. S47D Seat Memory Switch - Driver (AAB) S47D Seat Memory Switch - Driver (AAB) |
| 4. E63D Flood Lamp - Driver Door Handle E63D Flood Lamp - Driver Door Handle |
| 5. S45B Liftgate Control Switch - Interior (TB5) S45B Liftgate Control Switch - Interior (TB5) |
