Driver Door Components
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

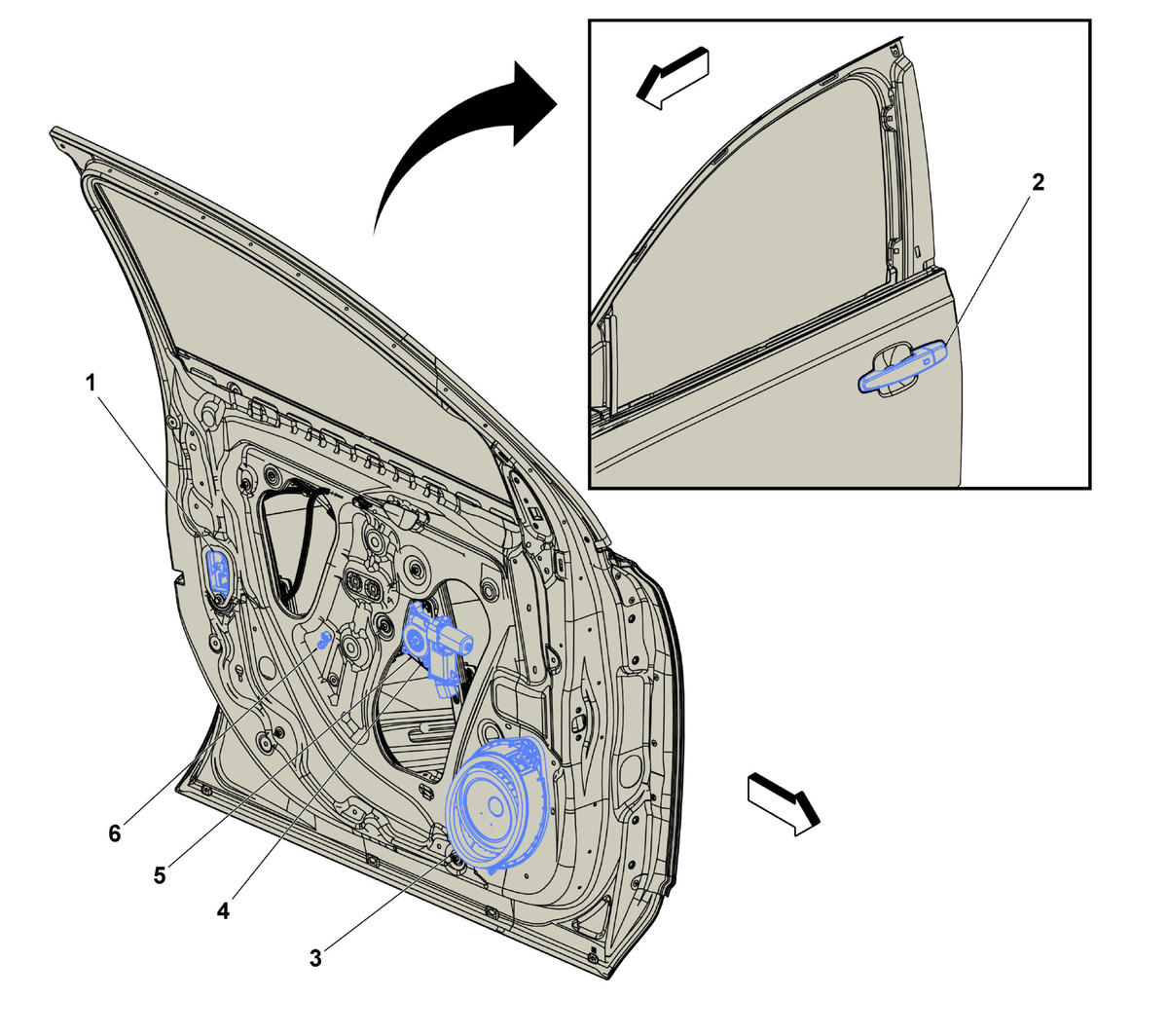

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. A23D Door Latch Assembly - Driver (AEC/AXG) A23D Door Latch Assembly - Driver (AEC/AXD) |
| 2. A24D Door Handle Assembly - Driver Exterior (ATH/ATS) A24D Door Handle Assembly - Driver Exterior (ATH/ATS) |
| 3. P19AG Speaker - Left Front Door P19AG Speaker - Left Front Door (UQA) , or P19AG Speaker - Left Front Door (UQF) |
| 4. M35D Window Motor Module - Driver (AXG) M35D Window Motor Module - Driver (AXG) |
| 5. M74D Window Motor - Driver |
| 6. B63LF Side Impact Sensor - Left Front B63LF Side Impact Sensor - Left Front |
