Windshield Multifunction Sensor Mount Bracket Cover Insert Replacement (With UEU)

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

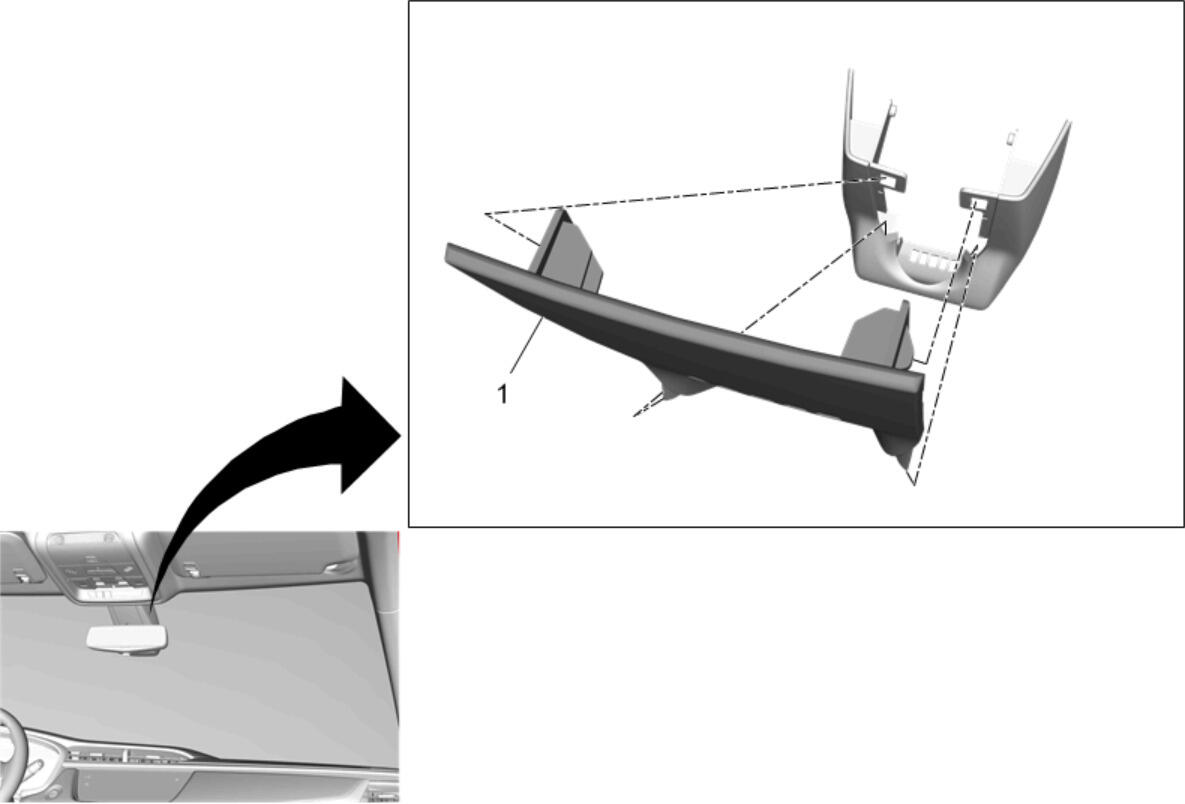

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
1	Windshield Multifunction Sensor Mount Bracket Cover Insert WARNING: While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal. Procedure Using a plastic trim tool, carefully pry downward on the cover to release from windshield. Squeeze tabs on insert and pull apart from cover. NOTE: The windshield multifunction sensor mount bracket cover and cover insert has to be removed as a single unit from the windshield surface to prevent damage to mirror.

Callout

Component Name

Windshield Multifunction Sensor Mount Bracket Cover Insert

WARNING:

While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal.

Procedure

Using a plastic trim tool, carefully pry downward on the cover to release from windshield.
Squeeze tabs on insert and pull apart from cover.

NOTE:

The windshield multifunction sensor mount bracket cover and cover insert has to be removed as a single unit from the windshield surface to prevent damage to mirror.
