Radio Bracket Replacement

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

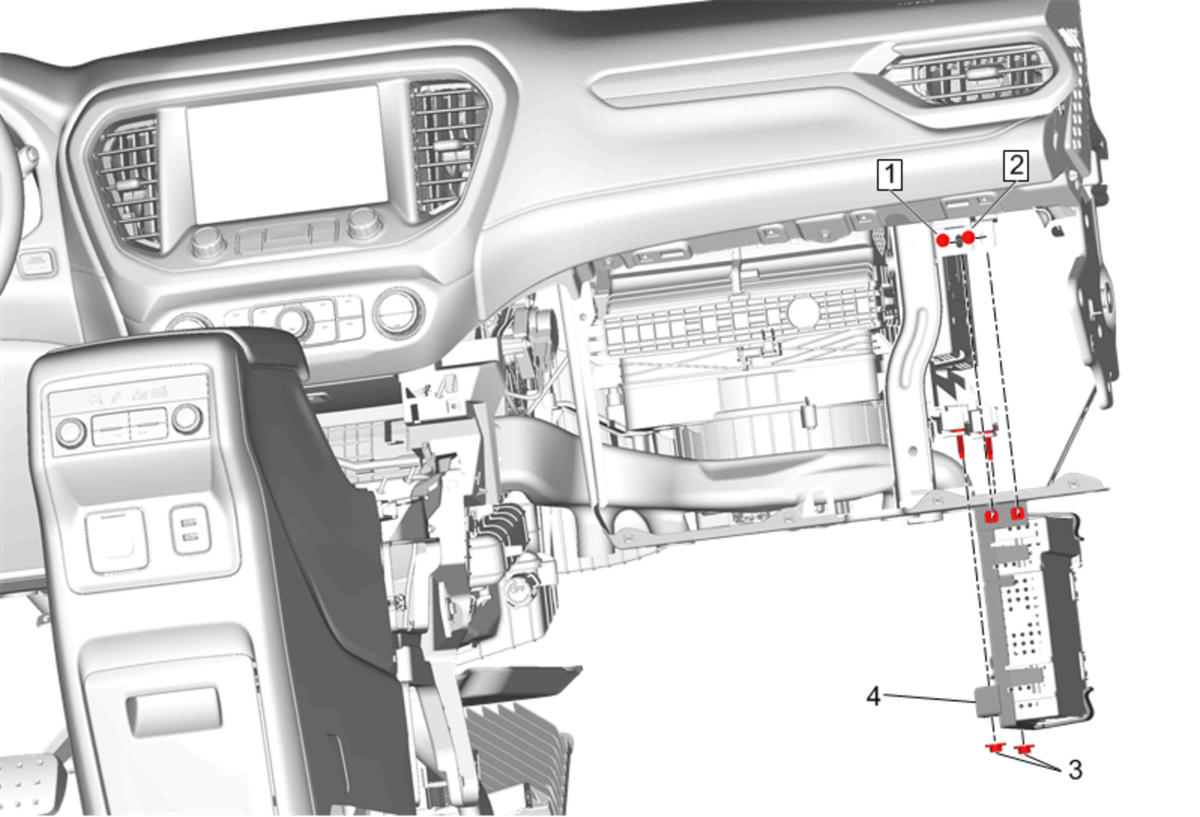

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Instrument Panel Compartment Replacement Instrument Panel Insulator Replacement - Right Side
1	Radio Bracket Bolt CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Human Machine Interface Control Module Bracket Bolt Tighten 2.5 N.m (22 lb in)
3	Radio Bracket Nut [2x] Tighten 9 N.m (80 lb in)
4	Radio Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary.
