Instrument Panel Insulator Replacement - Left Side
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:

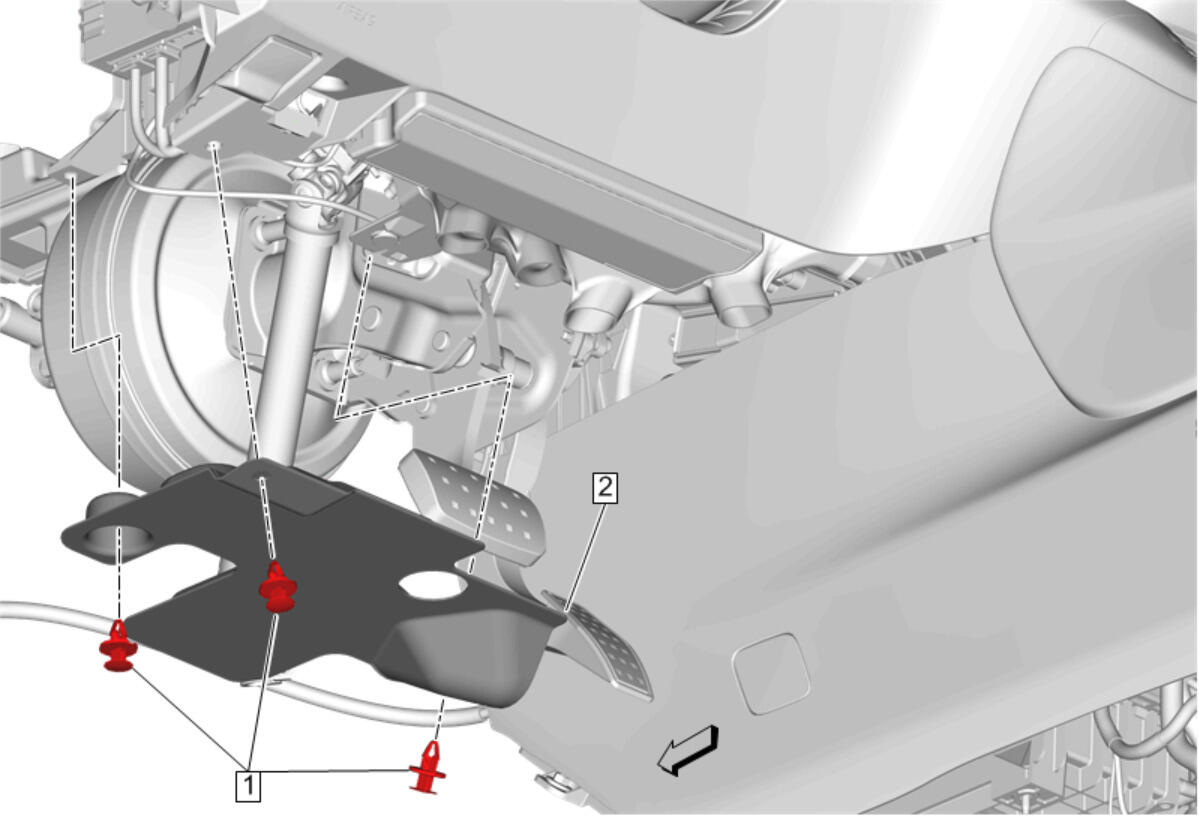

Callouts items in the following chart represent components shown in graphic above.
| Callout |
Component Name |
| 1 |
Instrument Panel Lower Insulator Retainer [3x]
Procedure
Use a flat-bladed plastic tool to remove the push-in retainers. |
| 2 |
Instrument Panel Insulator |
