Front Side Door Sill Garnish Molding Replacement

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

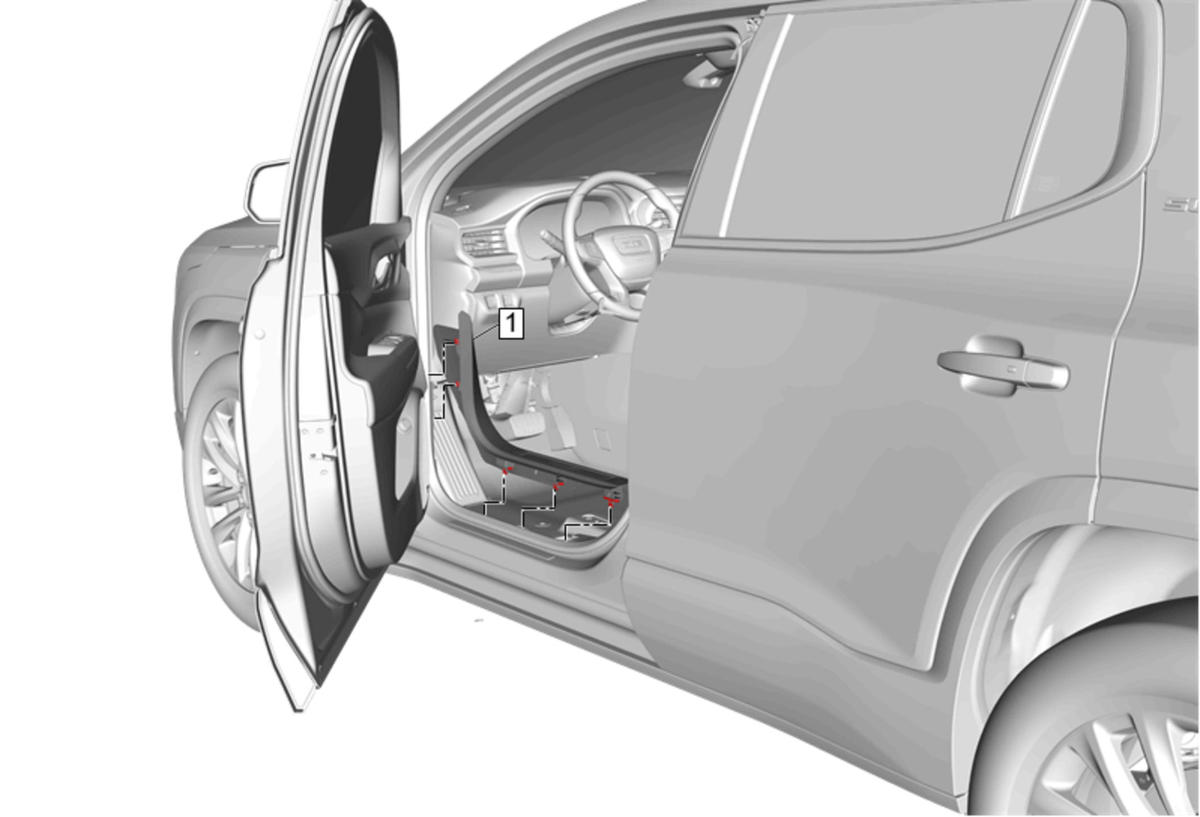

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
1	Front Side Door Sill Garnish Molding Procedure Starting at the rear of the garnish molding, pull upward at the B-Pillar joint to disengage garnish molding. Work your way forward disengaging all of the garnish molding clips then pull rearward to disengage the clip on the forward vertical wall. Reposition the front floor panel carpet as needed.

Callout

Component Name

Front Side Door Sill Garnish Molding

Procedure

Starting at the rear of the garnish molding, pull upward at the B-Pillar joint to disengage garnish molding.
Work your way forward disengaging all of the garnish molding clips then pull rearward to disengage the clip on the forward vertical wall.
Reposition the front floor panel carpet as needed.
