Center Pillar Upper Trim Panel Replacement

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

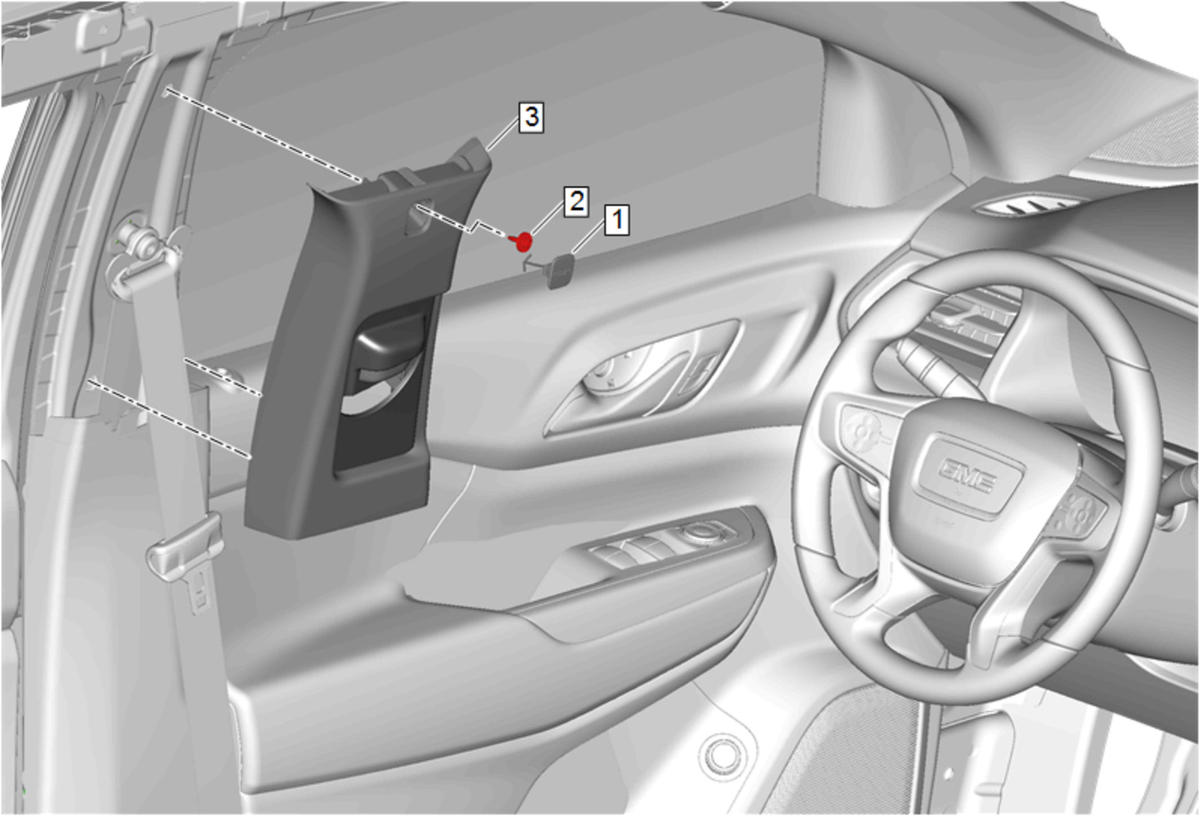

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Disable the SIR system. SIR Disabling and Enabling
1	Center Pillar Upper Trim Panel Bolt Cap
2	Center Pillar Upper Garnish Molding Bolt CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
3	Center Pillar Upper Trim Panel Procedure Pull the trim panel toward the inside of the vehicle to disengage the retainers. When replacing the center pillar upper trim panel, feed the seat belt through the panel. Enable the SIR System. SIR Disabling and Enabling
