Section 8 (Engine Controls And Fuel - 1.5L (LYX) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics (LYX-NTM)
>>

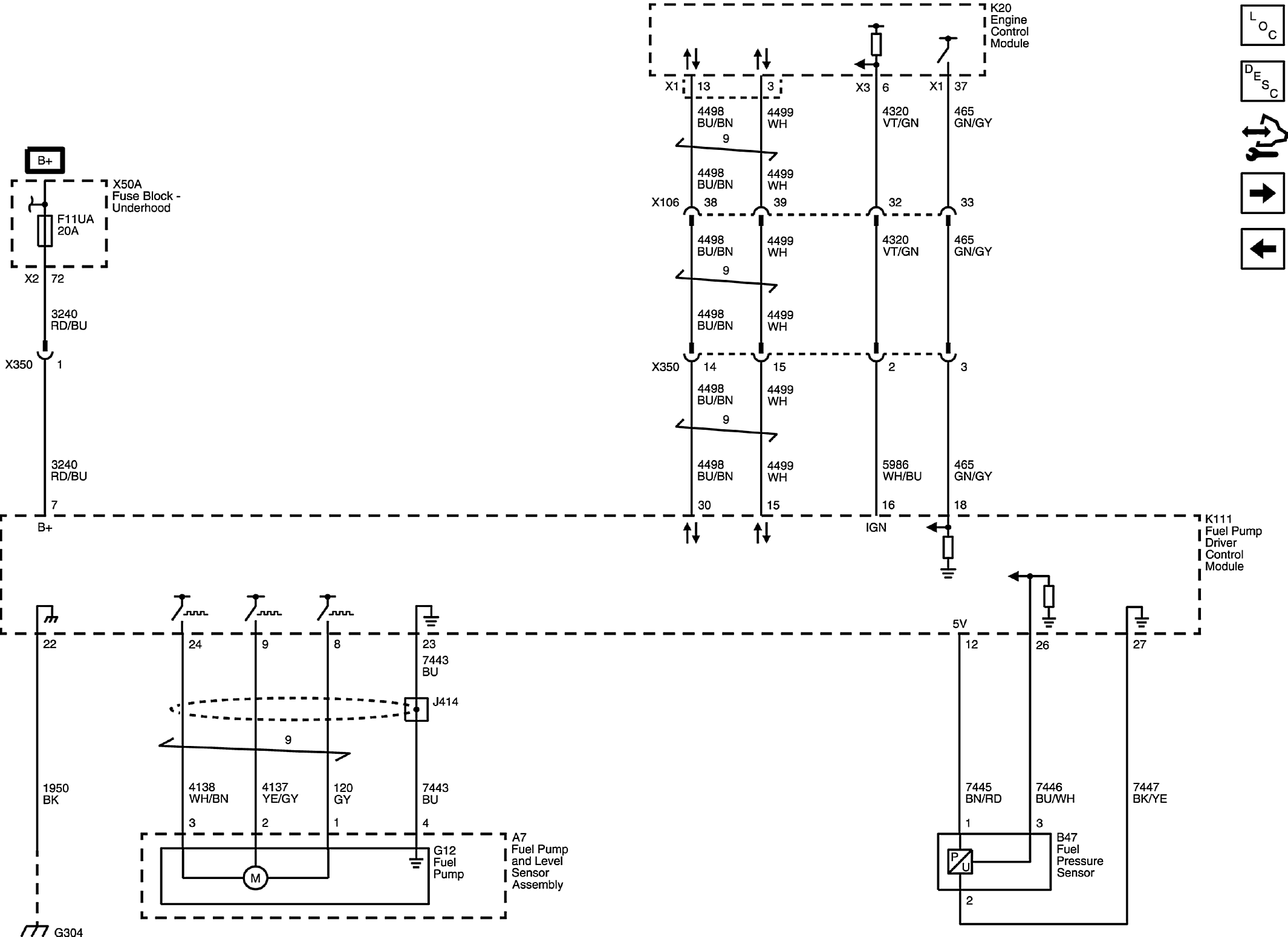

Fuel Controls - Fuel Pump and Fuel Pump Driver Control Module
Fuel Controls - Fuel Pump and Fuel Pump Driver Control Module
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
