Section 4 (Engine Mechanical - 1.5L (LYX))
>>
Schematic Wiring Diagrams
>>
Engine Mechanical Wiring Schematics
>>

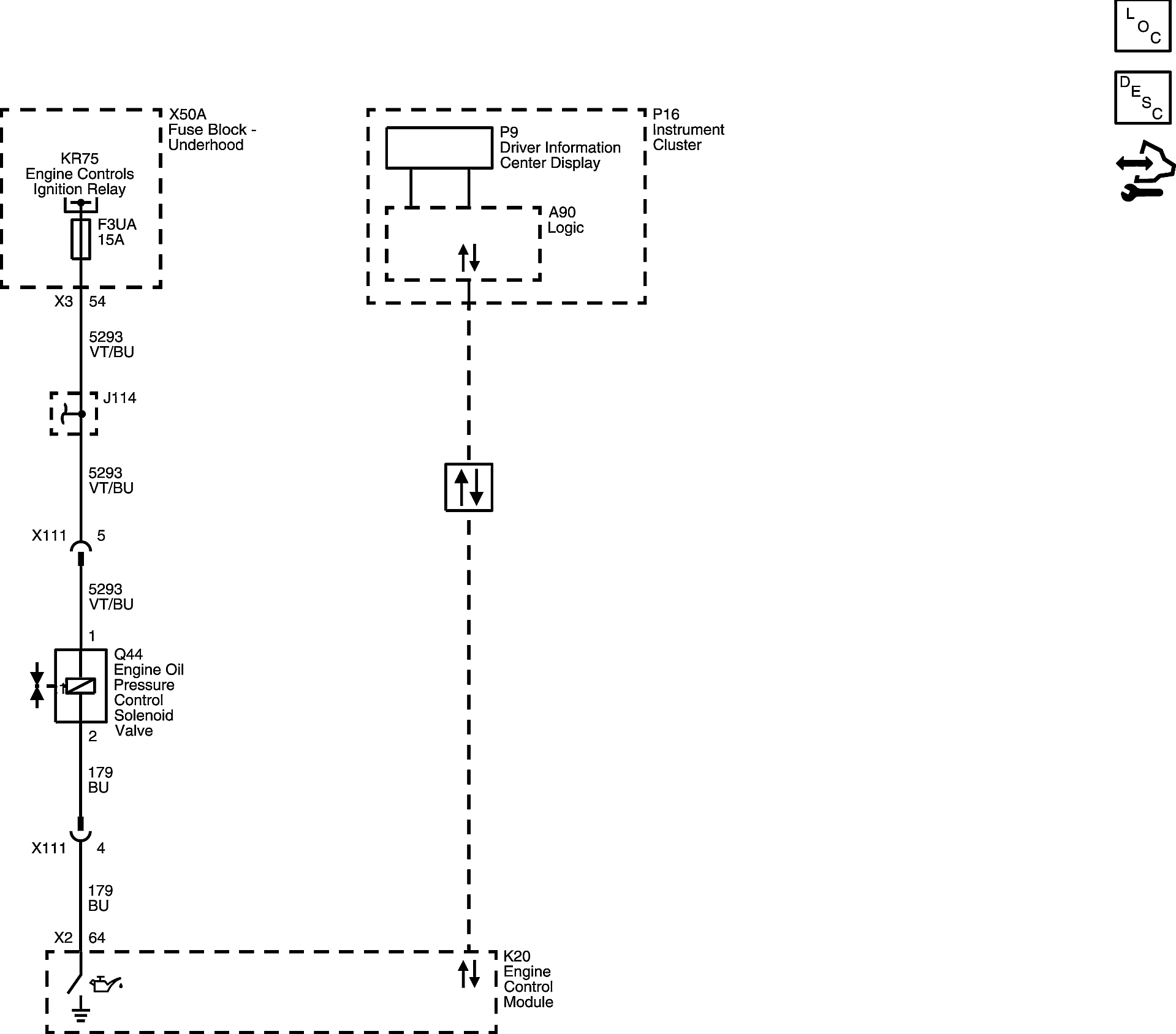

Oil Pressure Control (LYX)
Oil Pressure Control (LYX)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
