Oil Pan Removal (AWD)
WARNING: This page is about a different variant/trim than selected.

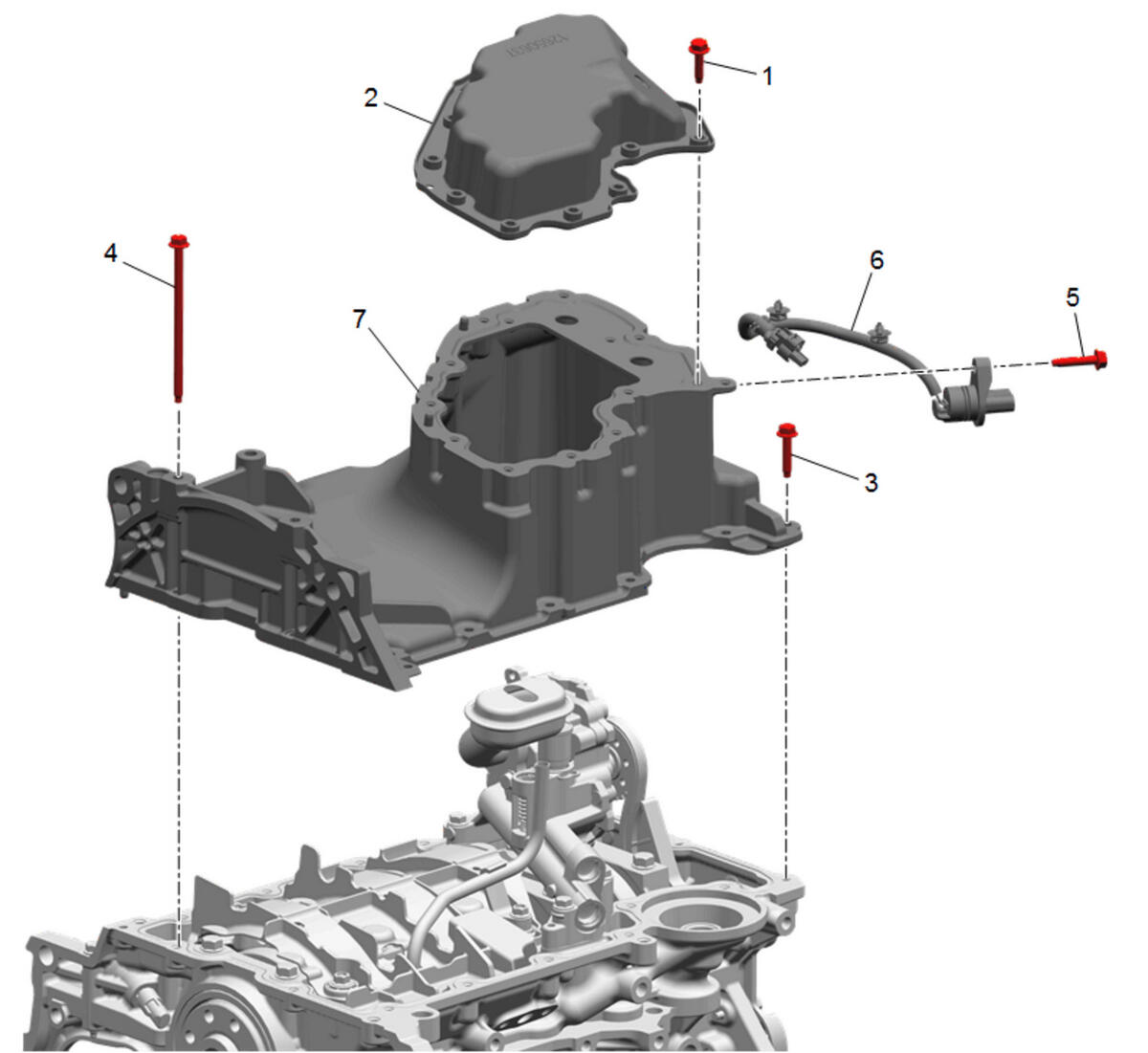

| Callout | Component Name |
|---|---|
| 1 | Lower Oil Pan Bolt[11x] |
| 2 | Lower Oil Pan Procedure Remove the oil pan drain plug, if applicable. Discard the lower oil pan. |
| 3 | Oil Pan Bolt[14x] |
| 4 | Oil Pan Bolt [2x] |
| 5 | Wiring Harness Connector Bolt |
| 6 | Wiring Harness Connector Procedure Disconnect the oil pump control valve connector, then remove through the upper oil pan. |
| 7 | Upper Oil Pan |
