Oil Pan Cleaning and Inspection (AWD)

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

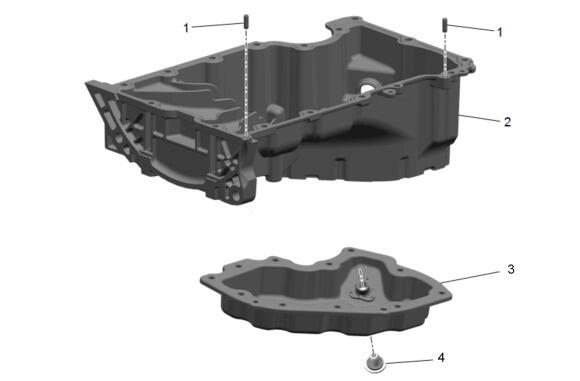

Callout	Component Name
Preliminary Procedures Remove all components prior to cleaning. Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant Clean all components. Inspect each component.
1	Oil Pan Locating Pin [2x]
2	Upper Oil Pan
3	Oil Pan Locating Pin [2x]
4	Lower Oil Pan NOTE: A NEW lower oil pan is installed during reassembly.
5	Oil Pan Drain Plug
