Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

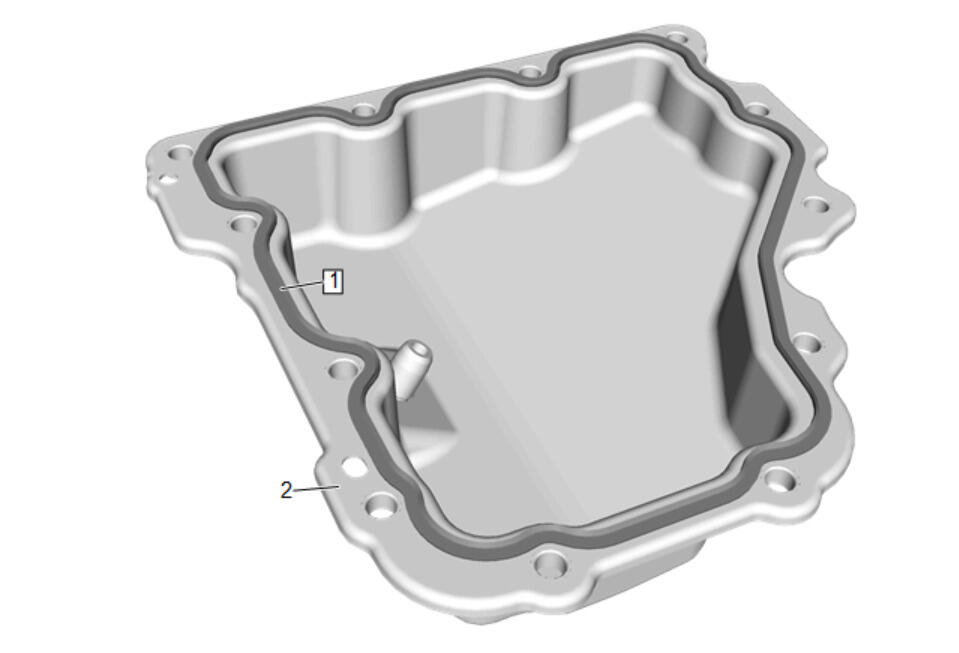

Apply bead of sealer (1) on the level part of the flange around the perimeter of the NEW oil pan (2). Oil Pan Installation (FWD) Oil Pan Installation (AWD)
Courtesy of GENERAL MOTORS COMPANY

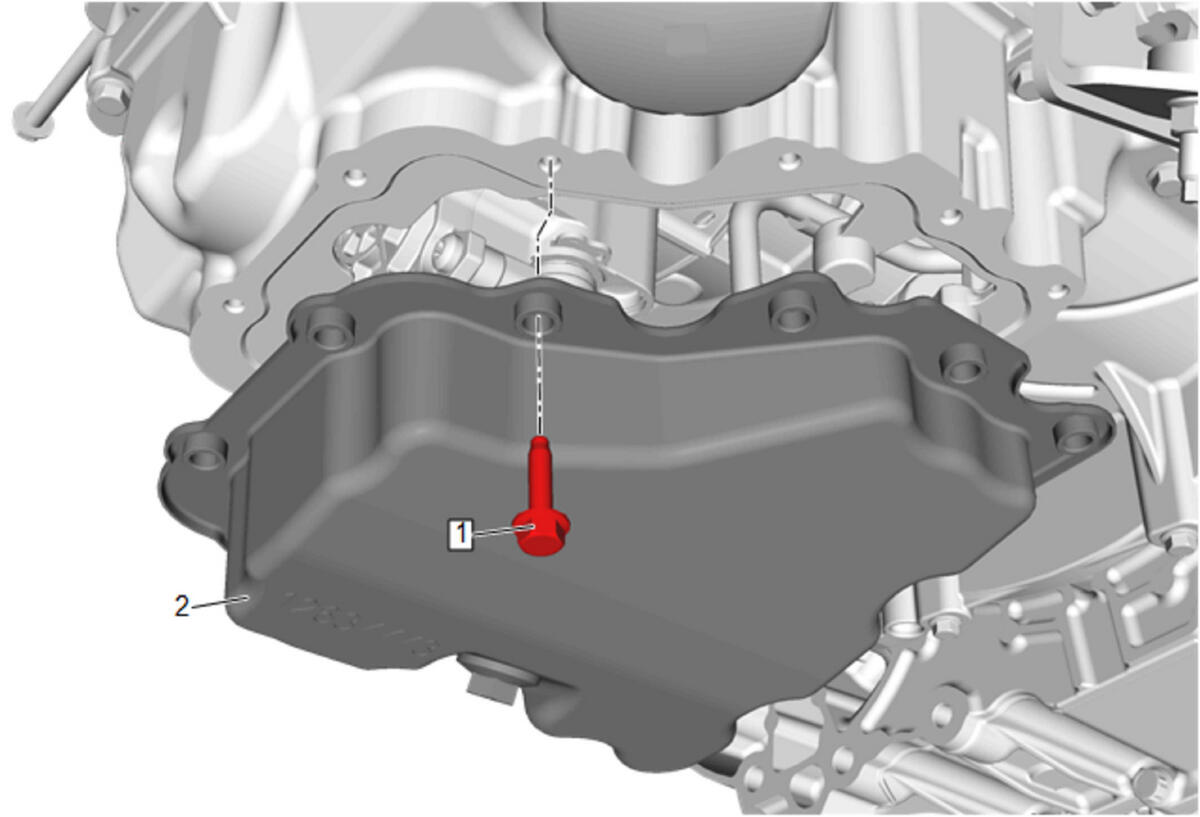

Lower Oil Pan(2) - Install NEW
Lower Oil Pan Bolt(1) - Loosely install[12x]
Lower Oil Pan Bolt(1) - Tighten in sequence - Oil Pan Installation (FWD) Oil Pan Installation (AWD)
Change the engine oil and filter. Engine Oil and Oil Filter Replacement
