Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Crankshaft Position Sensor Reluctor Ring Replacement - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The engine could be equipped with two different rear oil seal designs.

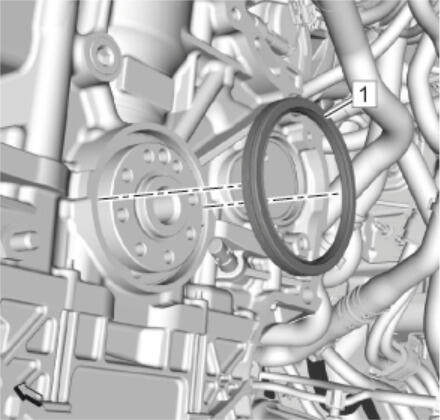

Check which of the crankshaft rear oil seals (1, 2) is installed.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Be careful that the crankshaft will not be damaged while the crankshaft rear oil seal is pulled out. Failing to do so may reduce the leak-tightness and could cause damage to the crankshaft.

NOTE:
Use a suitable tool to remove the seal.

Crankshaft Rear Oil Seal(2)@Crankshaft(1) - Remove
