Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the upper oil pan. Refer to Upper Oil Pan Replacement .

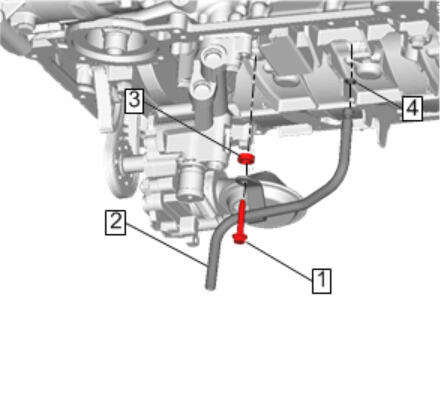

  2. GM3984112Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Note the position of the retainer (3) for proper installation.

    Remove the positive crankcase ventilation oil separator drain pipe fastener (1) then remove the pipe (2).

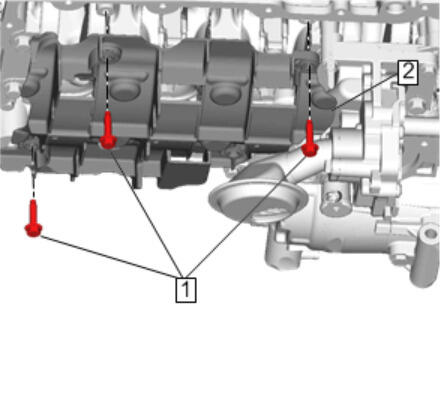

  3. GM3984117Courtesy of GENERAL MOTORS COMPANY

    Remove the oil deflector fasteners (1) then remove the oil deflector (2).
