Crankshaft Oil Deflector Removal
WARNING: This page is about a different variant/trim than selected.

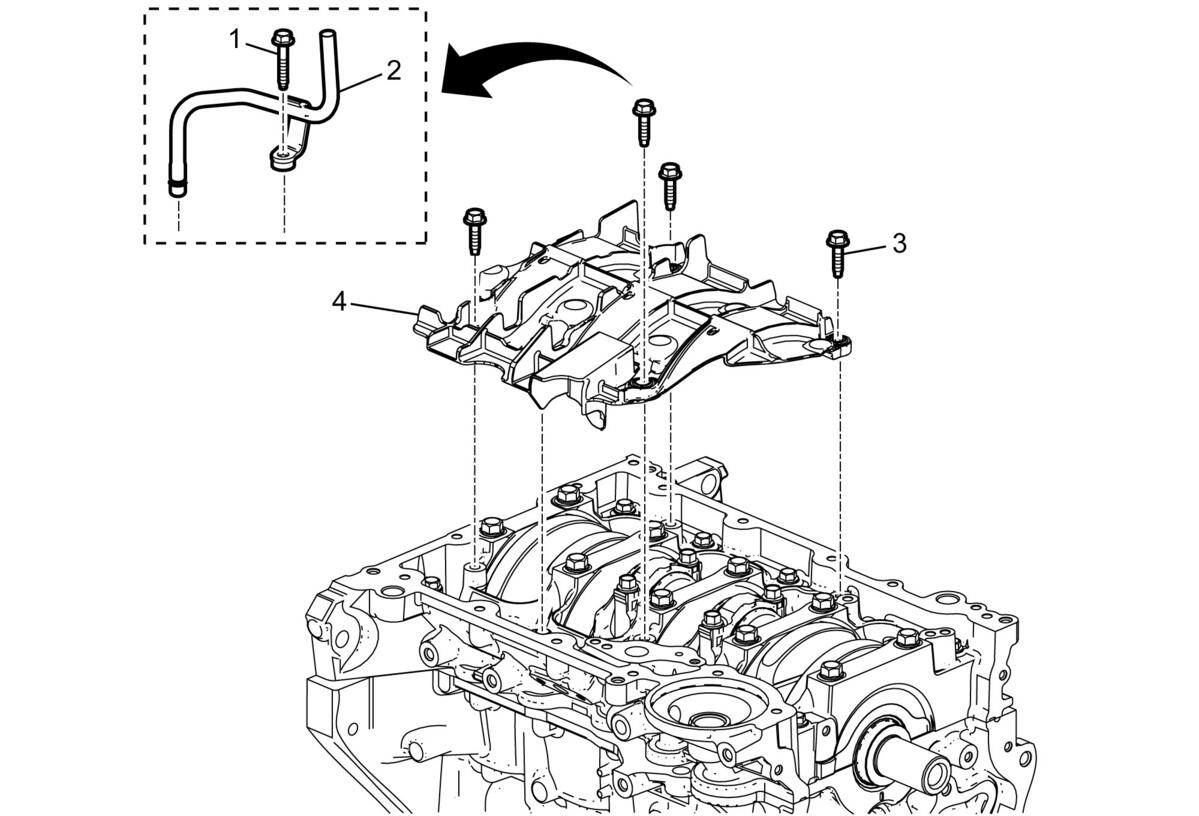

| Callout | Component Name |
|---|---|
| 1 | Positive Crankcase Ventilation Oil Separator Drain Pipe Bolt{ If equipped } |
| 2 | Positive Crankcase Ventilation Oil Separator Drain Pipe{ If equipped } |
| 3 | Crankshaft Oil Deflector Bolt[4x] Crankshaft Oil Deflector Bolt[3x]with Positive Crankcase Ventilation Oil Separator Drain Pipe{ If equipped } |
| 4 | Crankshaft Oil Deflector |
