Camshaft Timing Chain Removal
WARNING: This page is about a different variant/trim than selected.

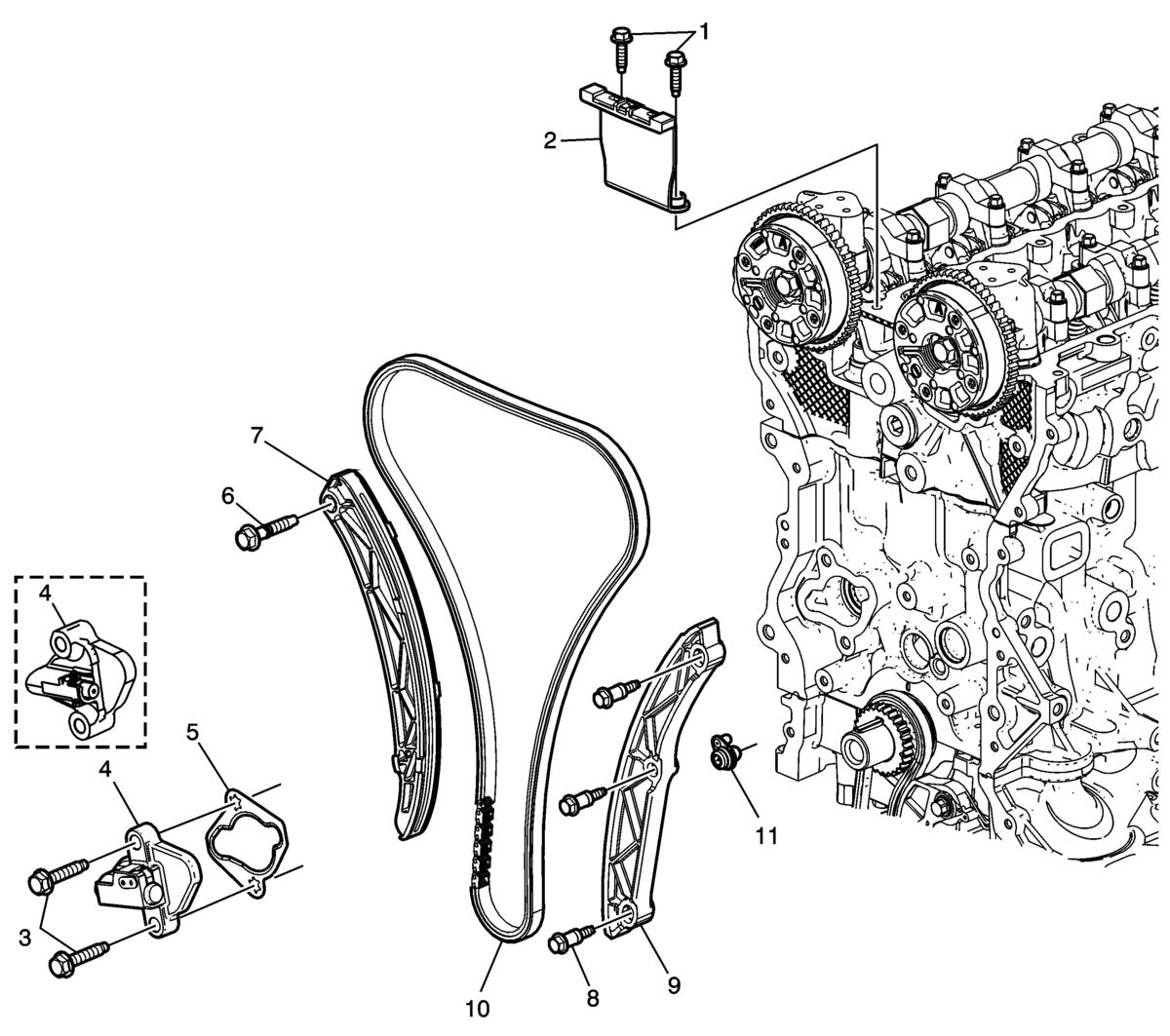

| Callout | Component Name |
|---|---|
| 1 | Timing Chain Guide Bolt (Qty: 2) |
| 2 | Timing Chain Guide - to Cylinder Head |
| 3 | Timing Chain Tensioner Bolt (Qty: 2) |
| 4 | Timing Chain Tensioner Assembly |
| 5 | Timing Chain Tensioner Gasket |
| 6 | Timing Chain Tensioner Shoe Bolt (Qty: 1) |
| 7 | Timing Chain Tensioner Shoe Assembly |
| 8 | Timing Chain Guide Bolt (Qty: 3) |
| 9 | Timing Chain Guide - Exhaust Side |
| 10 | Timing Chain |
| 11 | Timing Chain Oil Nozzle |
