Camshaft Timing Chain Inspection

Special Tools

EN-51367  Camshaft Holder

Equivalent regional tools:Special Tools

1. Camshaft Cover - Remove - Camshaft Cover Replacement
2. Front Wheelhouse Liner-Right Side - Remove - Front Wheelhouse Liner Replacement - Right Side (Equinox)Front Wheelhouse Liner Replacement - Right Side (Terrain)

3. Courtesy of GENERAL MOTORS COMPANY

   Adjust the engine to cylinder 1 top dead center (TDC) of combustion stroke. Using the balancer bolt (3) rotate the crankshaft in direction of engine rotation until the markings (1, 2) line up.

4. Courtesy of GENERAL MOTORS COMPANY

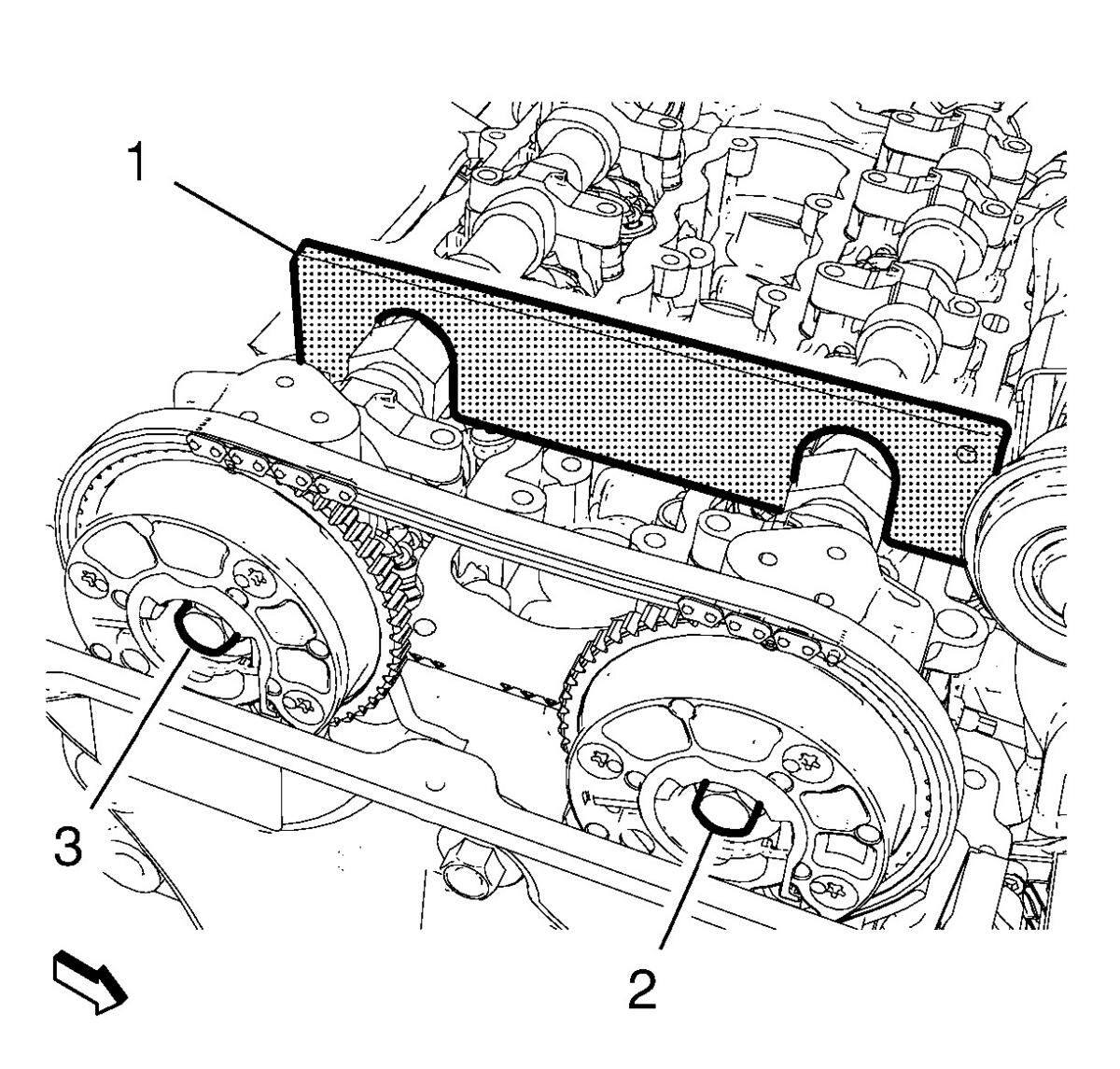

   Install the EN-51367  holder (1).

NOTE:

The marks of the camshaft position actuators must be at the 12 O'clock position.

5. If the EN-51367  holder (1) can be installed, the engine timing is properly adjusted.
6. If the EN-51367  holder (1) can't be installed, inspect for wear, damage and proper installation of the timing chain components and replace as necessary. Camshaft Timing Chain Replacement
7. Remove the EN-51367  holder (1).
8. Camshaft Cover - Install - Camshaft Cover Replacement
9. Front Wheelhouse Liner-Right Side - Install - Front Wheelhouse Liner Replacement - Right Side (Equinox)Front Wheelhouse Liner Replacement - Right Side (Terrain)
