Camshaft Cover Components Removal
WARNING: This page is about a different variant/trim than selected.

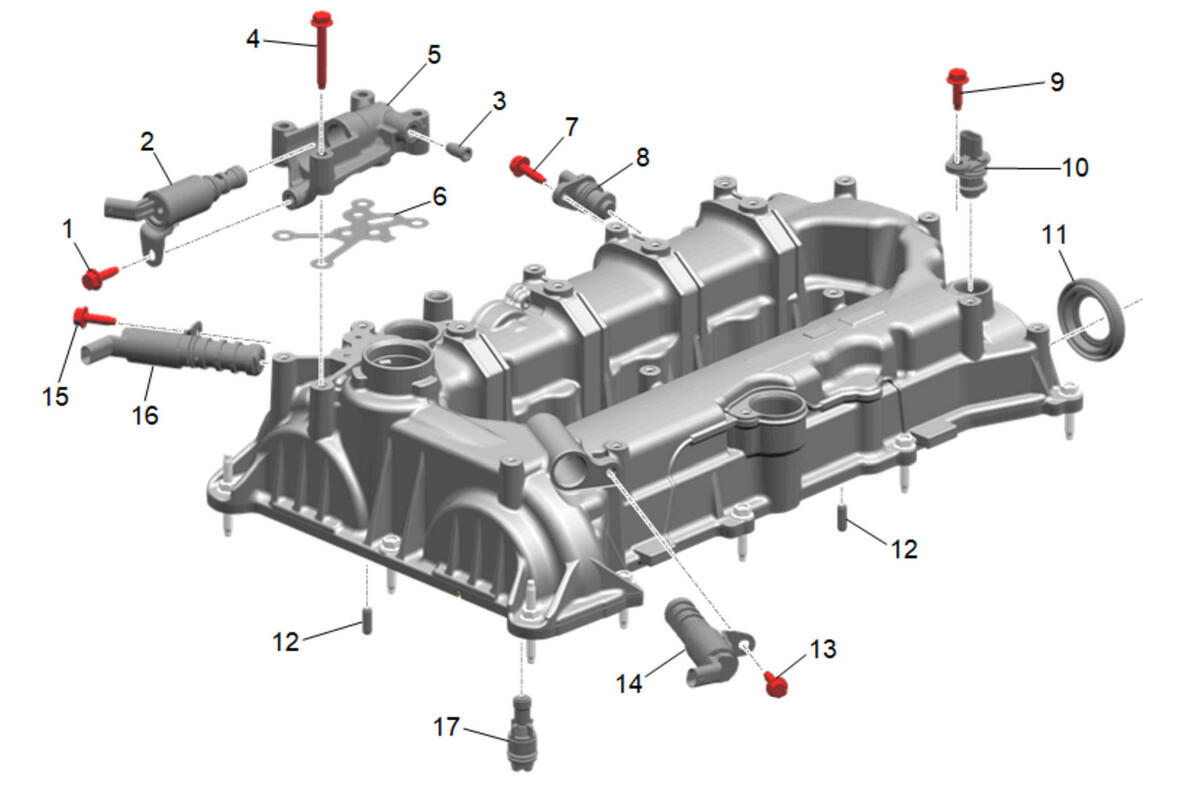

Camshaft Cover Components Removal
| Callout | Component Name |
|---|---|
| 1 | Camshaft Position Actuator Solenoid Valve Bolt |
| 2 | Camshaft Position Actuator Locating Pin Control Valve |
| 3 | Camshaft Cover Opening Plug |
| 4 | Camshaft Housing Bolt[4x] |
| 5 | Camshaft Housing |
| 6 | Camshaft Housing Gasket
NOTE:
Discard the gasket. |
| 7 | Camshaft Position Sensor Bolt |
| 8 | Camshaft Position Sensor |
| 9 | Camshaft Position Sensor Bolt |
| 10 | Camshaft Position Sensor |
| 11 | Vacuum Pump Seal Special Tools EN-51096 Seal Remover Equivalent regional tools: Special Tools . |
| 12 | Camshaft Cover Locating Pin [2x] |
| 13 | Camshaft Position Actuator Solenoid Valve Bolt |
| 14 | Exhaust Camshaft Position Actuator Solenoid Valve |
| 15 | Camshaft Position Actuator Solenoid Valve Bolt |
| 16 | Intake Camshaft Position Actuator Solenoid Valve |
