Camshaft Cover Positive Crankcase Ventilation Components Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

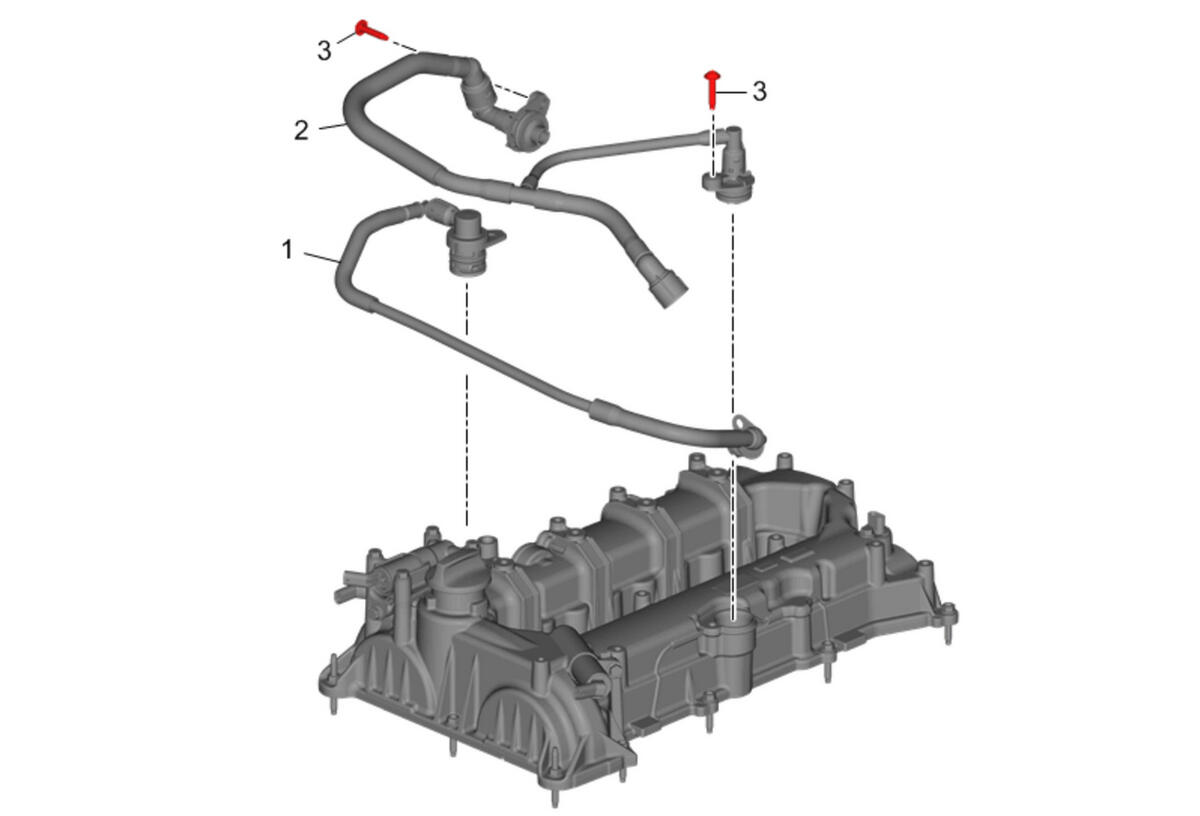

Callout	Component Name
1	Positive Crankcase Ventilation Tube with Positive Crankcase Ventilation Valve - Foul Air NOTE: These components have tamper-proof connections and cannot be disassembled. Procedure Assemble a NEW PCV Tube, NEW PCV valve, and NEW PCV Hose fitting. Install the PCV valve to the camshaft cover. The valve is retained by snapping into the camshaft cover.
2	Positive Crankcase Ventilation Tube with Positive Crankcase Ventilation Valve - Fresh Air NOTE: These components have tamper-proof connections and cannot be disassembled. The fresh air inlet duct is connected to the PCV Tube with a tamper-proof connection. All components must be replaced once removed. Procedure Assemble a NEW PCV tube with NEW PCV valves and a NEW fresh air inlet duct. Install the PCV valves to the camshaft cover.
3	Positive Crankcase Ventilation Valve Bolt [2x] CAUTION: Refer to Fastener Caution . NOTE: Bolts are tamper-proof. Procedure Using EN-50956 bit, install NEW bolts. Tighten 10 N.m (89 lb in) Special Tools EN-50956 Tamper-Proof Drive Bit Equivalent regional tools: Special Tools .

Callout

Component Name

Positive Crankcase Ventilation Tube with Positive Crankcase Ventilation Valve - Foul Air

NOTE:

These components have tamper-proof connections and cannot be disassembled.

Procedure

Assemble a NEW PCV Tube, NEW PCV valve, and NEW PCV Hose fitting.
Install the PCV valve to the camshaft cover. The valve is retained by snapping into the camshaft cover.

Positive Crankcase Ventilation Tube with Positive Crankcase Ventilation Valve - Fresh Air

NOTE:

These components have tamper-proof connections and cannot be disassembled. The fresh air inlet duct is connected to the PCV Tube with a tamper-proof connection. All components must be replaced once removed.

Procedure

Assemble a NEW PCV tube with NEW PCV valves and a NEW fresh air inlet duct.
Install the PCV valves to the camshaft cover.

Positive Crankcase Ventilation Valve Bolt [2x]

CAUTION:

Refer to Fastener Caution .

NOTE:

Bolts are tamper-proof.

Procedure
Using EN-50956 bit, install NEW bolts.
Tighten
10 N.m (89 lb in)
Special Tools
EN-50956 Tamper-Proof Drive Bit
Equivalent regional tools: Special Tools .
