Turbocharger Wastegate Closed
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

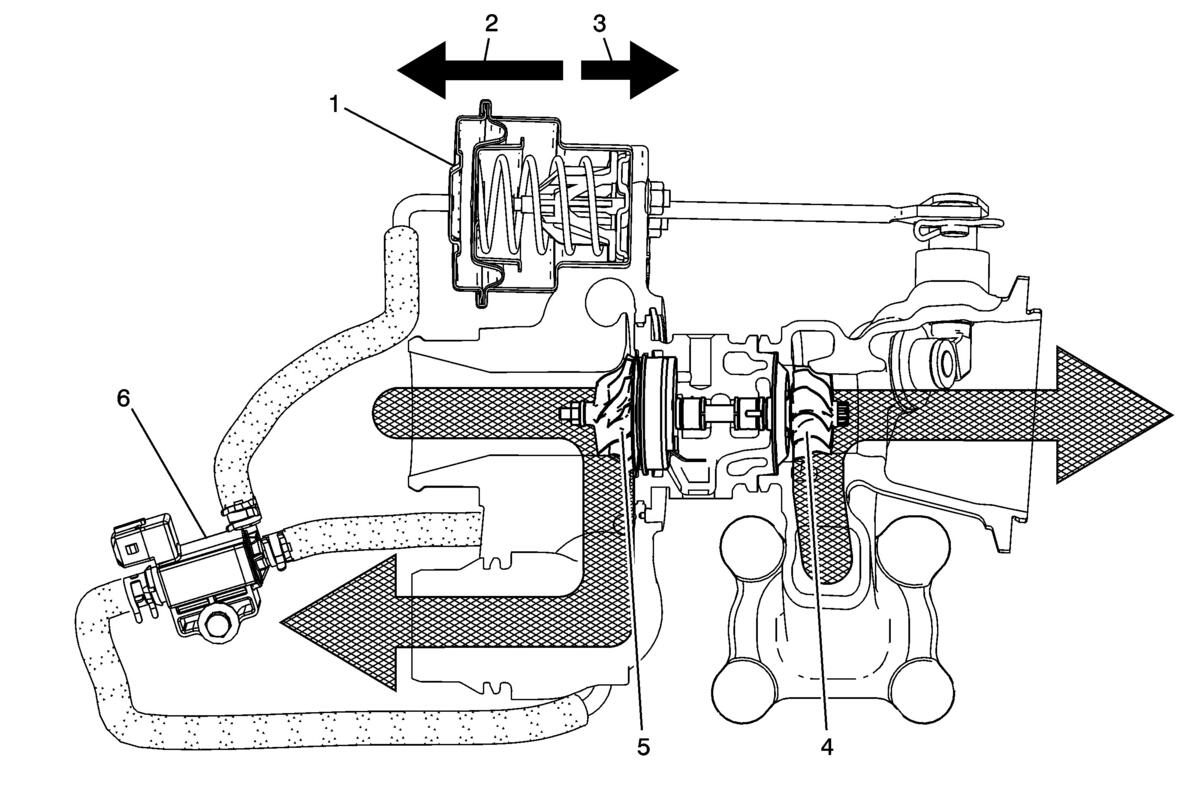

| Callout |
Component Name |
| 1 |
Turbocharger Wastegate Diaphragm Valve |
| 2 |
Spring Force |
| 3 |
Exhaust Gas Pressure |
| 4 |
Turbine |
| 5 |
Compressor |
| 6 |
Turbocharger Wastegate Actuator Solenoid Valve with Duty Cycle at 100 percent |
