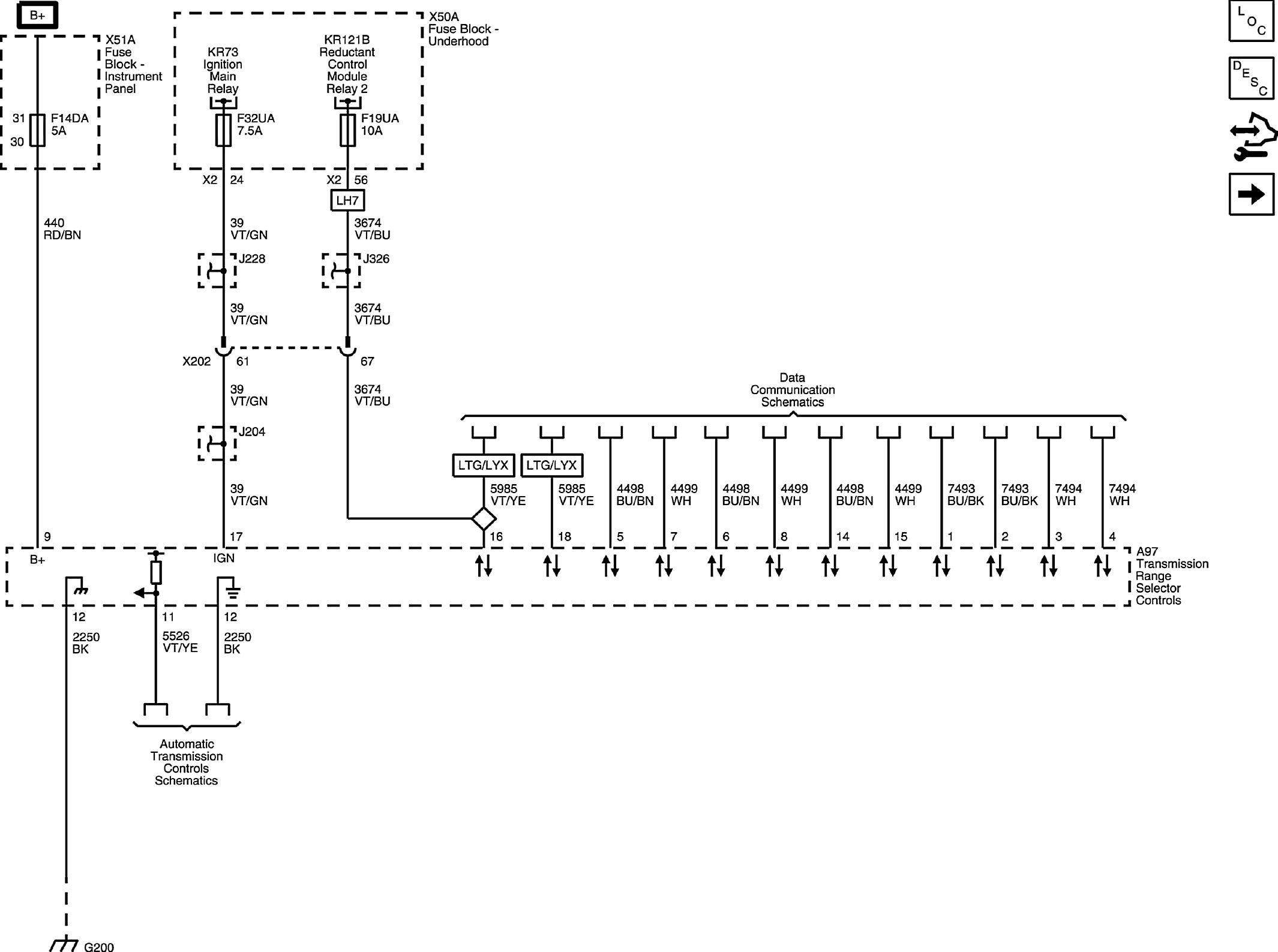

Electronic Shift Controls (EPH)

WARNING: This page is about a different car, the 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
GM5171723Courtesy of GENERAL MOTORS COMPANY
