Installation Procedure
WARNING: This page is about a different car, the 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

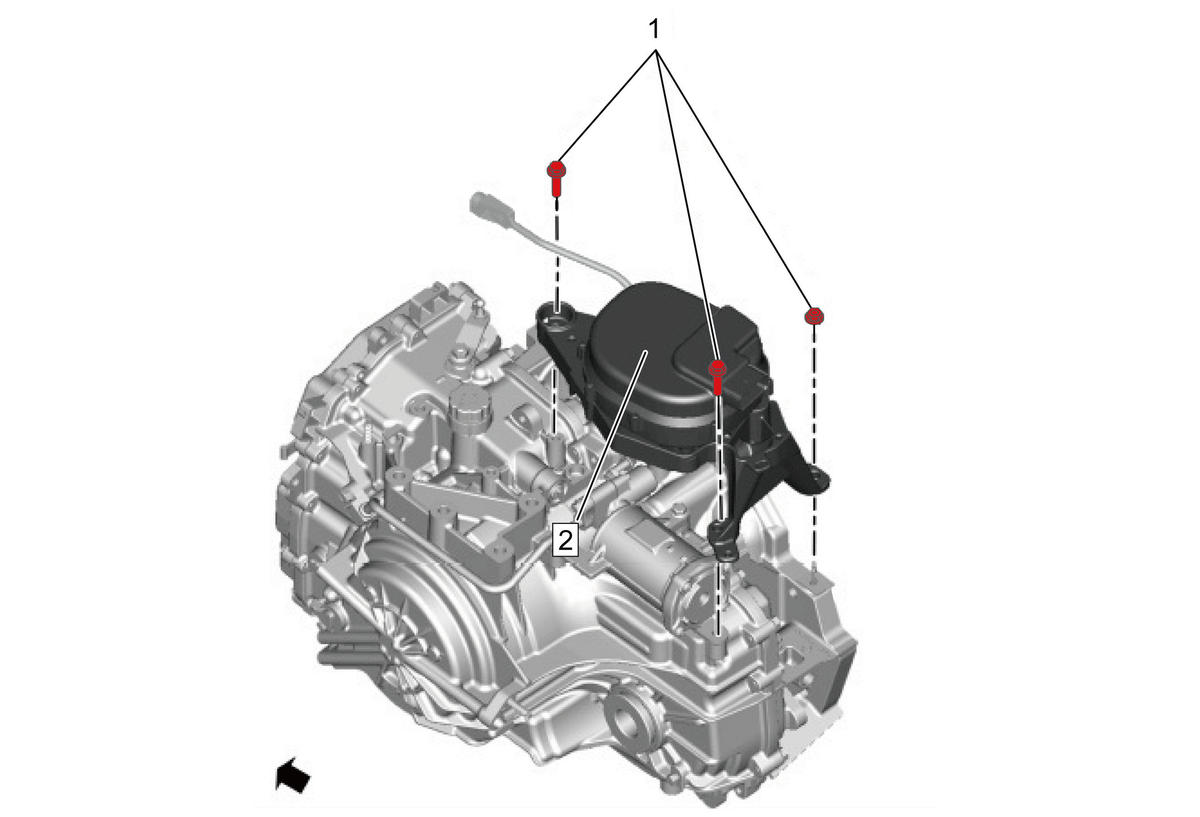

Position the range selector actuator (2) to the transmission.
- Install the three range selector actuator retaining fasteners (1) and tighten to 22 N.m (16 lb ft).
- Connect the range selector actuator lever link.
- Connect the electrical connector.
- Connect the three starter cable retainers to the range selector actuator.
- Reposition the radiator surge tank to the vehicle. Radiator Surge Tank Replacement (LYX without KL9) , or Radiator Surge Tank Replacement (LTG LYX with KL9)
Install the heater inlet and outlet pipe bracket nut and tighten to 22 N.m (16 lb ft).

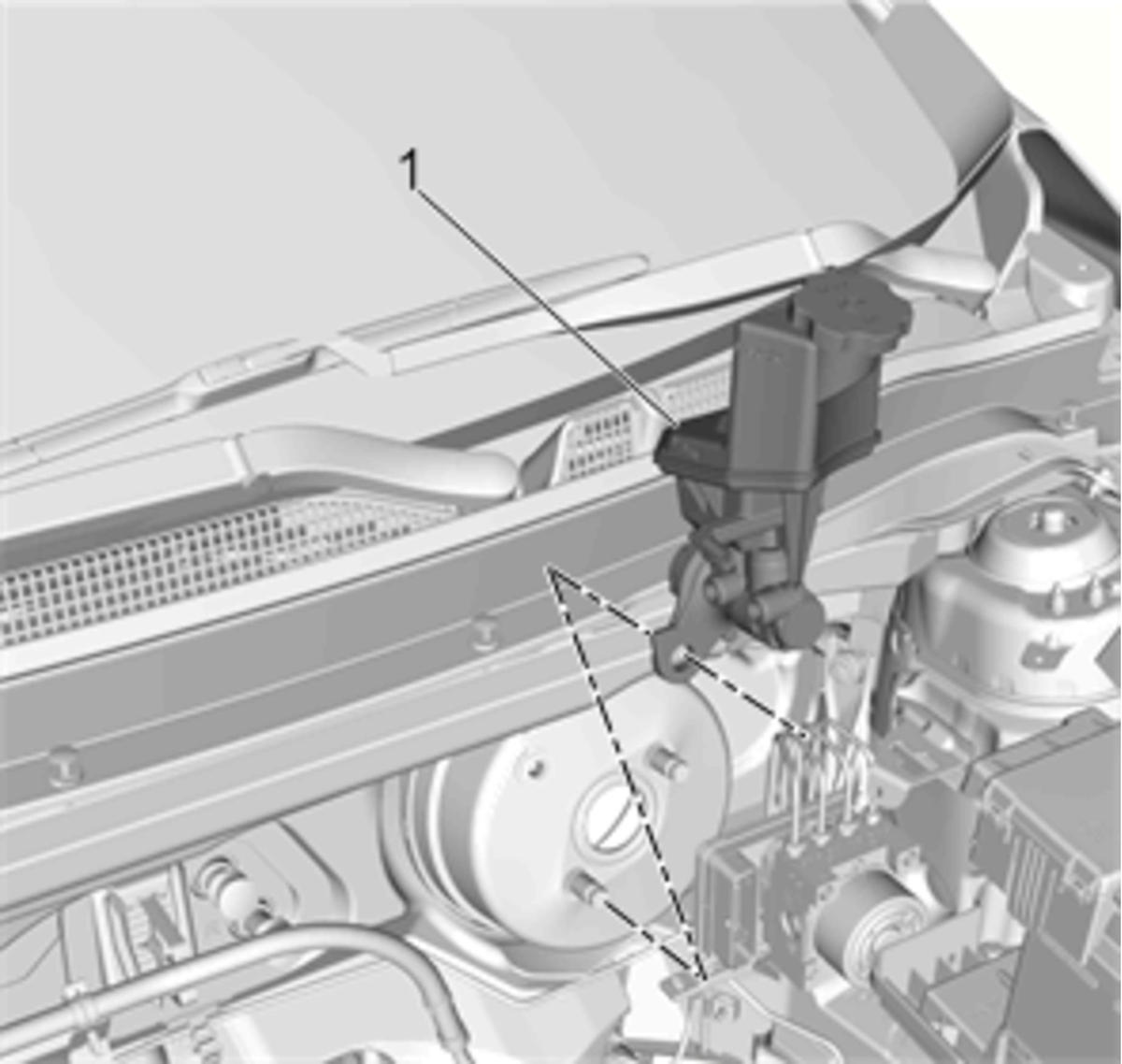

Install the brake master cylinder (1). Brake Master Cylinder Replacement
- Install the primary brake pressure modulator valve pipe. Brake Pressure Modulator Valve Pipe Replacement (Primary) , or Brake Pressure Modulator Valve Pipe Replacement (Secondary)
- Install the secondary brake pressure modulator valve pipe. Brake Pressure Modulator Valve Pipe Replacement (Primary) , or Brake Pressure Modulator Valve Pipe Replacement (Secondary)
- Adjust the range selector lever link. Automatic Transmission Range Selector Lever Link Adjustment
- Install the charge air cooler outlet air tube. Charge Air Cooler Outlet Air Tube Replacement.
- After installation is complete, perform the transmission adaptive values learn procedure. Transmission Adaptive Values Learn
