Auxiliary Fluid Accumulator Replacement

WARNING: This page is about a different car, the 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

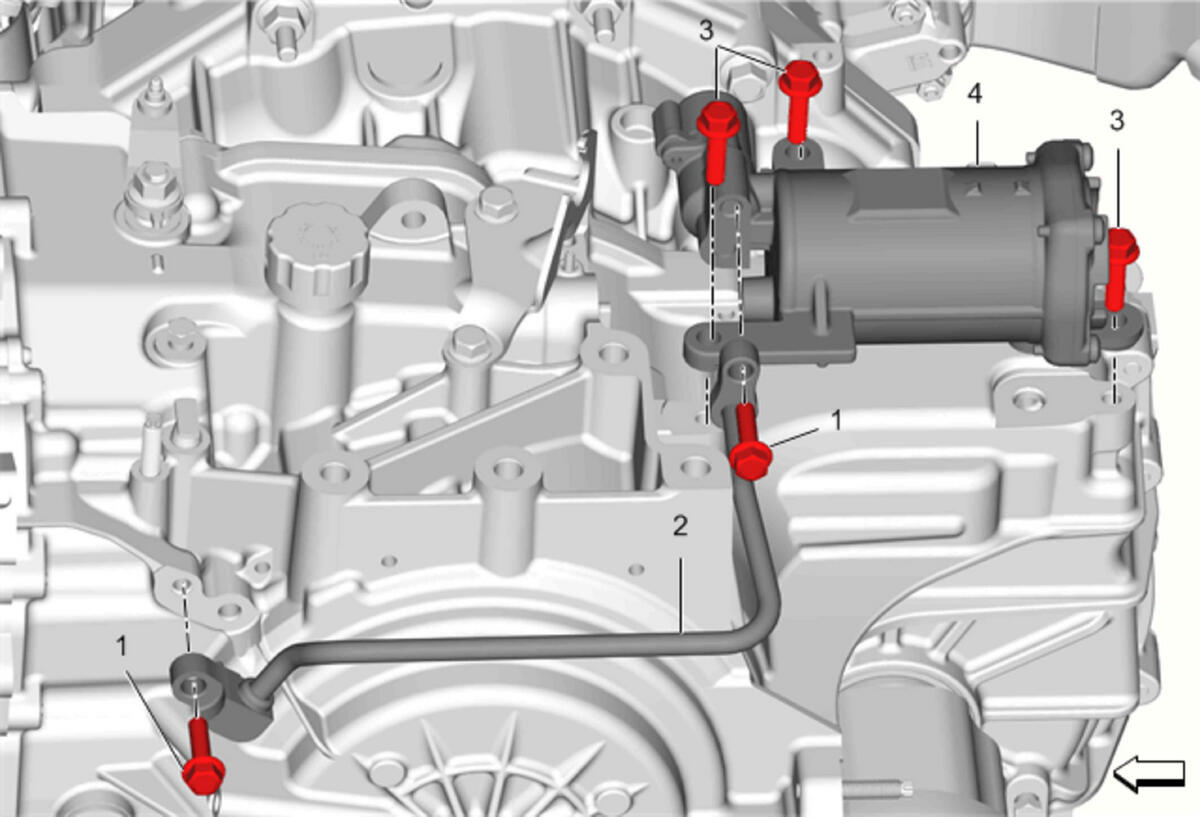

Callout	Component Name
WARNING: The automatic transmission fluid accumulator may be pressurized greater than 120 psi (827 kpa) and fluid may be hot. When servicing accumulator, key must be OFF for a minimum of 10 minutes. Do not open bleeder screw until instructed to do so or personal injury may result. Preliminary Procedures Battery Tray Replacement Range Selector Lever Cable Replacement - Disconnect
1	A/Trans Auxiliary Fluid Accumulator Pipe Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 22N.m (16 lb ft)
2	A/Trans Auxiliary Fluid Accumulator Pipe
3	A/Trans Auxiliary Fluid Accumulator Bolt [3x] Tighten 22N.m (16 lb ft)
4	A/Trans Auxiliary Fluid Accumulator Assembly Procedures Disconnect/connect the electrical connector. Replace seals as necessary. Check the transmission fluid level. Transmission Fluid Level and Condition Check
