S155 Lane Departure Warning Switch
 Courtesy of GENERAL MOTORS COMPANY
|

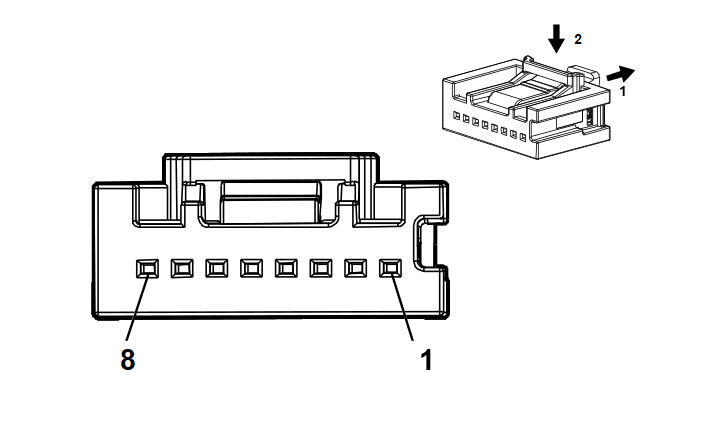

Connector Part Information
- Harness Type: Center Console
- OEM Connector: 13507120
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way F Mini 50 Series (D-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
EL-35616-58 (BK) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control 1 |
I |
- |
| 2 |
0.35 |
GY/WH |
3153 |
Lane Departure Warning Disable Switch Signal |
I |
- |
| 3 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
WH |
6816 |
Indicator Dimming Control |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.35 |
WH |
3152 |
Lane Departure Warning Indicator Control |
I |
- |
| 8 |
0.35 |
BK |
2250 |
Ground 22 |
I |
- |
