Forward Collision Alert Display Bezel Replacement (Equinox)

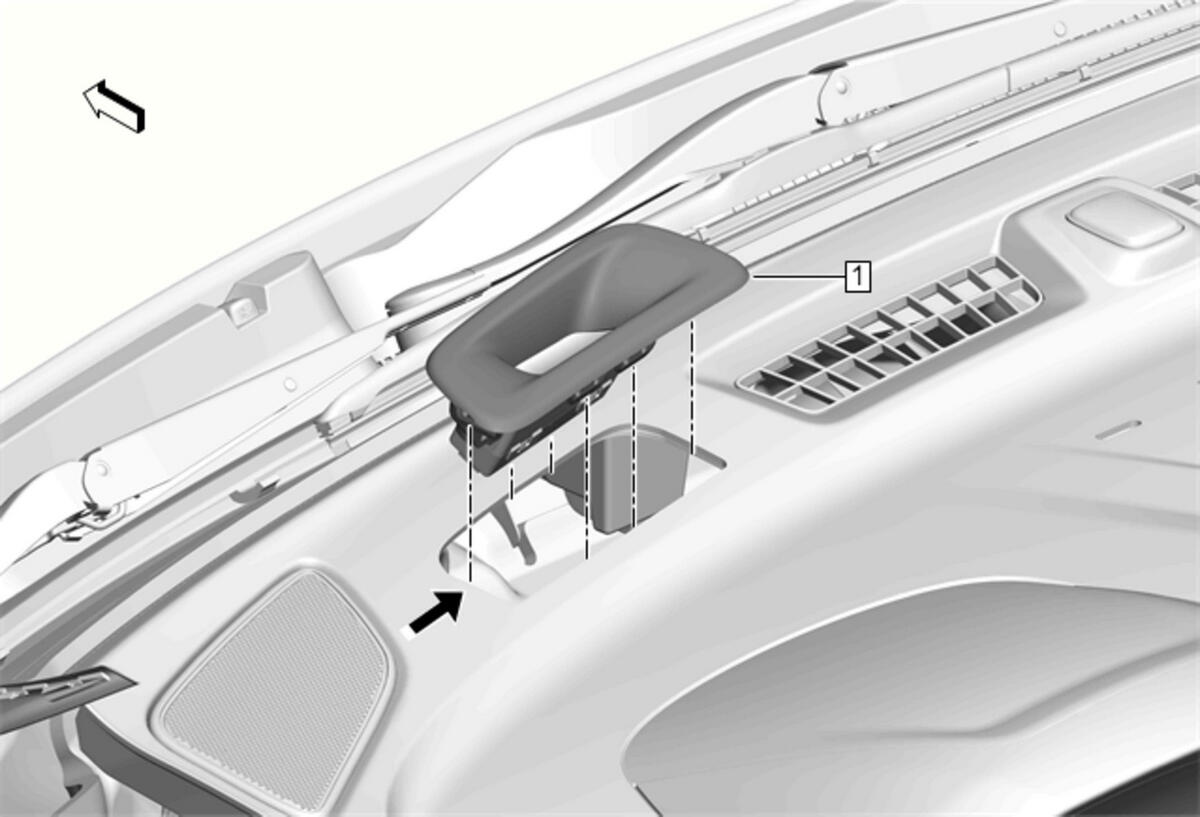

GM4596069Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Forward Collision Alert Display Bezel

Procedure

  1. Using a suitable flat-bladed plastic tool, starting where indicated and work the tool around the bezel to release the retainers.
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
