Front Tire Front Air Deflector Replacement (Equinox)

Courtesy of GENERAL MOTORS COMPANY

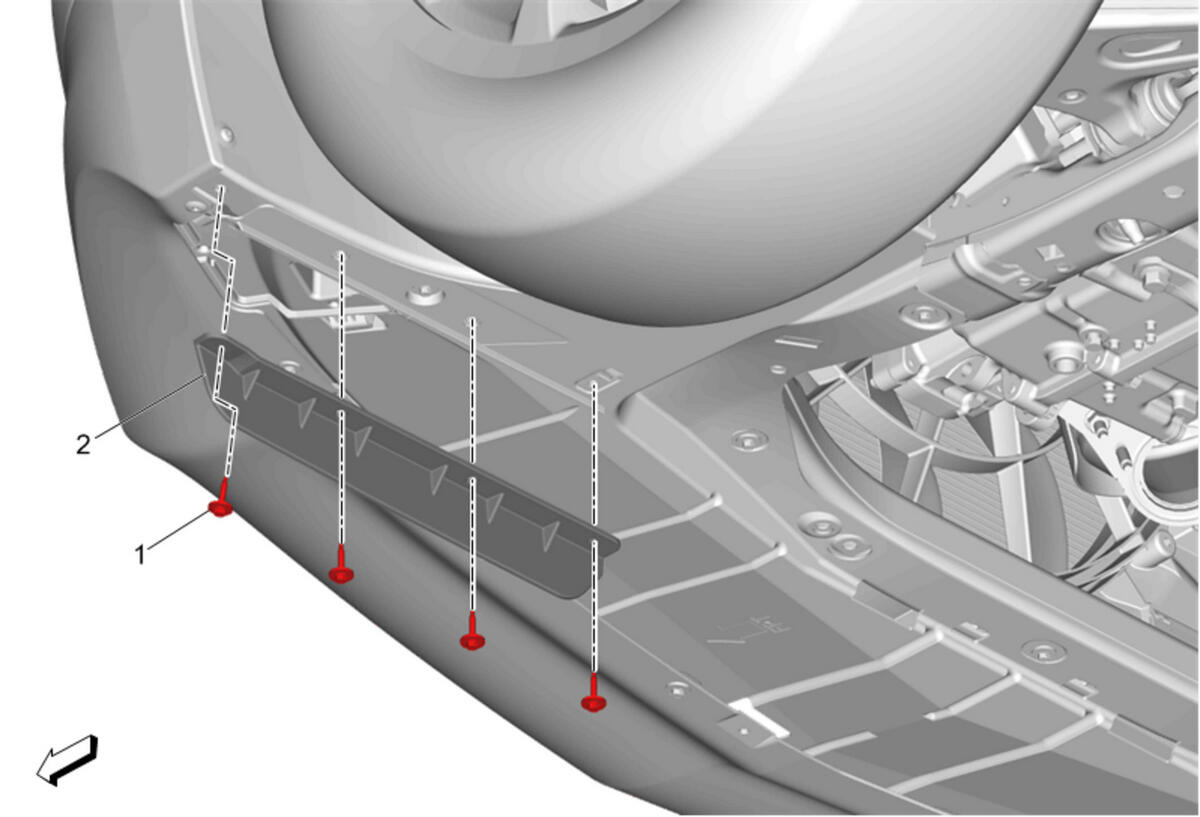

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Front Tire Front Air Deflector Bolt [4x] CAUTION: Refer to Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Front Tire Front Air Deflector Procedure  Remove the support and lower the vehicle. Lifting and Jacking the Vehicle
