Hood Primary Latch Release Cable Handle Replacement

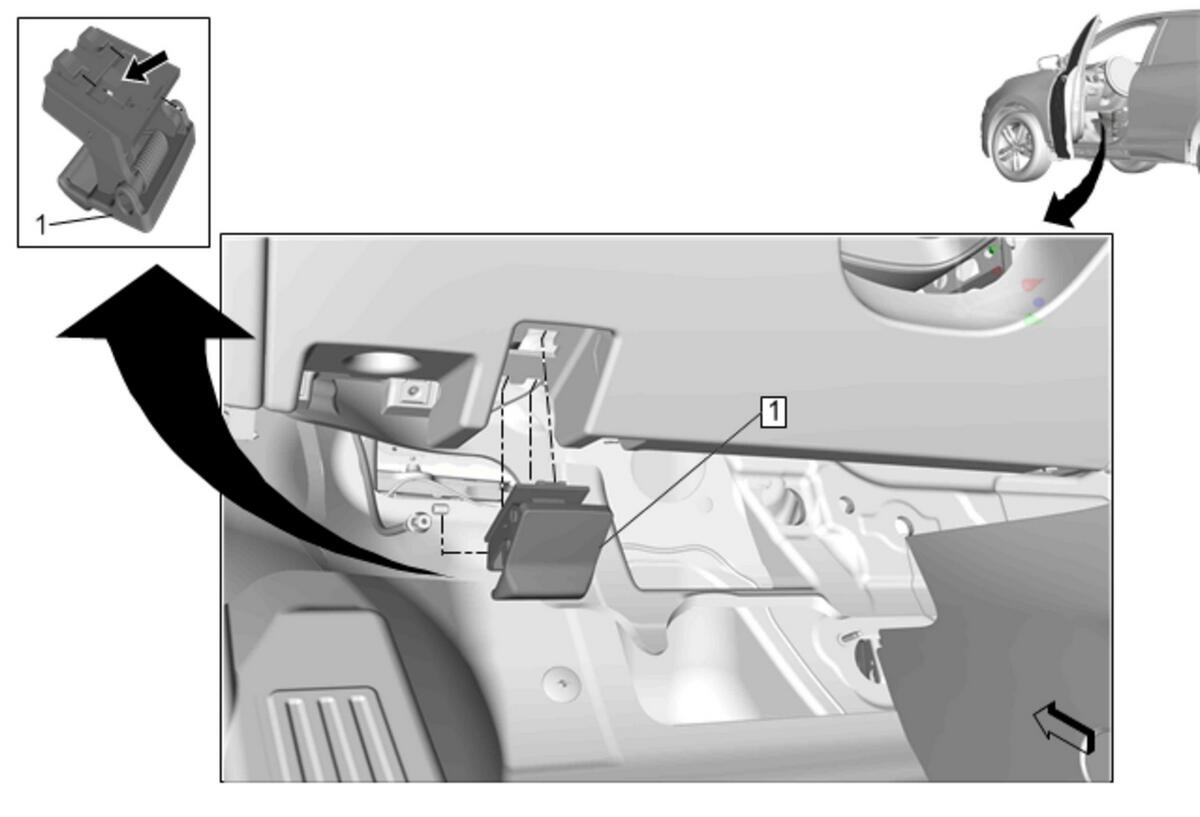

GM4565913Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Hood Primary Latch Release Cable Handle

Procedure

  1. Press the release cable handle inward/downward to release the retainers from the instrument panel.
  2. Disconnect the hood release cable from the hood release handle.
