Liftgate Strut Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

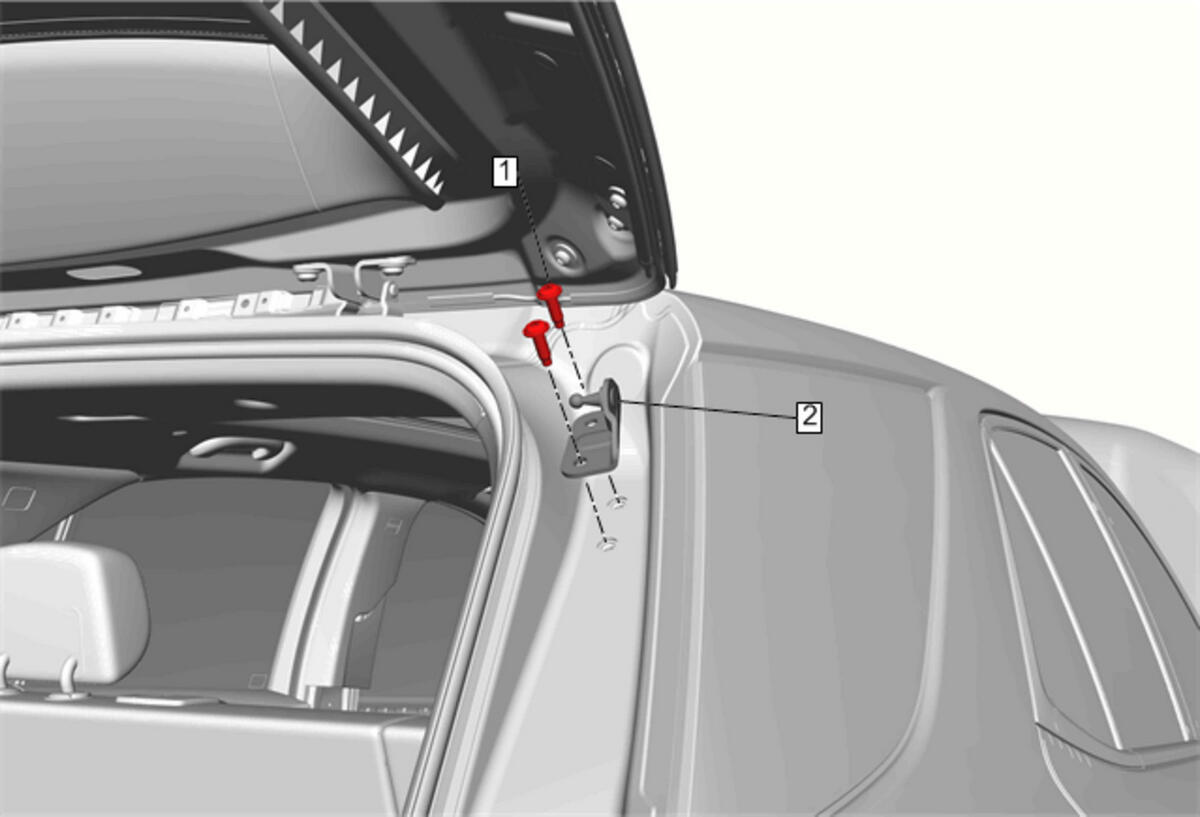

Callout	Component Name
Preliminary Procedures Open the liftgate. Liftgate Strut Replacement (Equinox) , or Liftgate Strut Replacement (Terrain)
1	Liftgate Strut Bracket Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Liftgate Strut Bracket

Callout

Component Name

Preliminary Procedures

Liftgate Strut Bracket Bolt [2x]

CAUTION:

Tighten
22 N.m (16 lb ft)

Liftgate Strut Bracket
