Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Wiring Harness (1) - Install

Courtesy of GENERAL MOTORS COMPANY

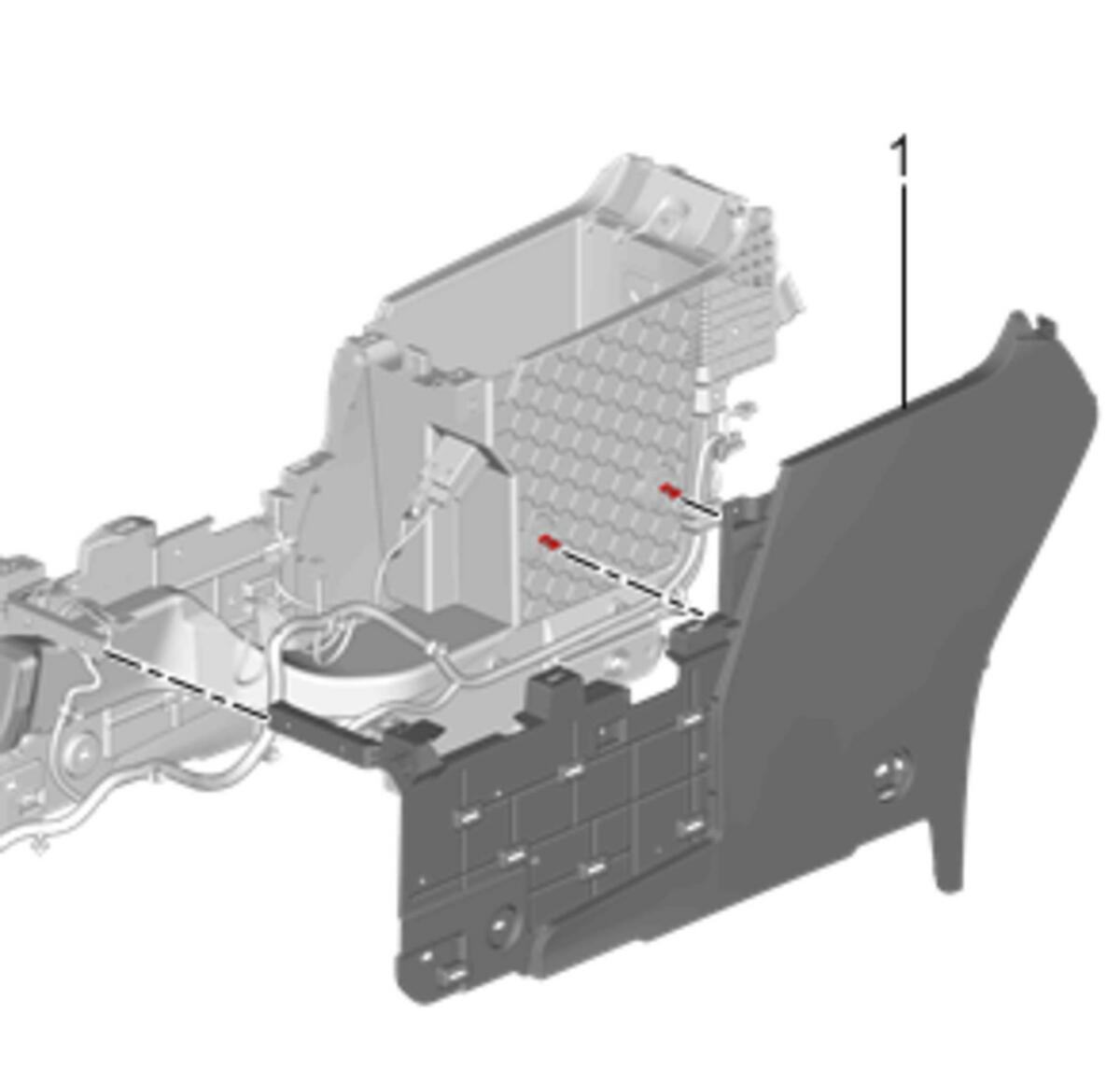

Front Floor Lower Console - Left Side (1) - Install

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Wiring Harness Retainer (1) - Connect

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Wiring Harness Retainer (1) - Connect

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Armrest (1) - Install - Front Floor Console Armrest Replacement (Equinox) , or Front Floor Console Armrest Replacement (Terrain)

Courtesy of GENERAL MOTORS COMPANY

Accessory AC and DC Power Control Module (2) - Install - Accessory AC and DC Power Control Module Replacement (Equinox) , or Accessory AC and DC Power Control Module Replacement (Terrain)

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console (1) - Install - Front Floor Console Replacement (Equinox) , or Front Floor Console Replacement (Terrain)
