Spare Wheel Hoist Lock Cylinder Replacement

Courtesy of GENERAL MOTORS COMPANY

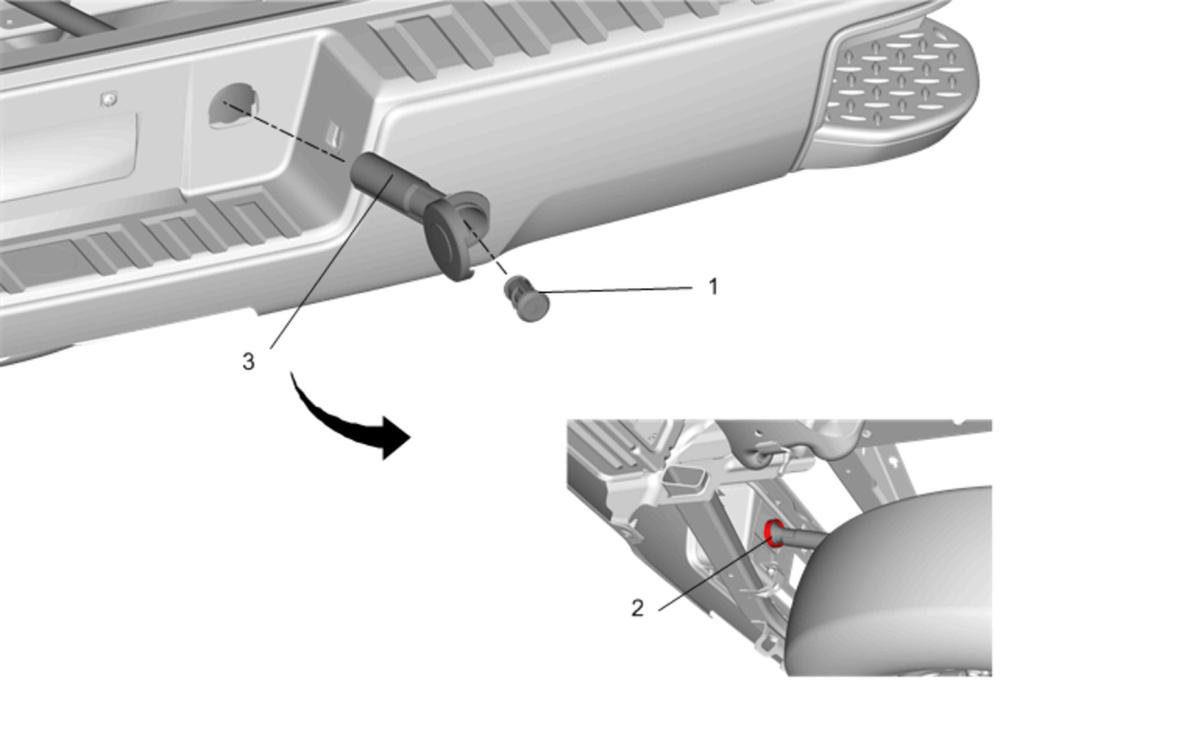

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Spare Wheel Hoist Lock Cylinder Procedure If replacing the spare wheel hoist lock cylinder, coding will be necessary. Refer to Spare Wheel Hoist Lock Cylinder Coding .
2	Spare Wheel Hoist Lock Cylinder Case Retainer Procedure Using the appropriate tool remove the spare wheel hoist lock cylinder case retainer.
3	Spare Wheel Hoist Lock Cylinder Case
