Installation Procedure

Install the rear brake hose.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Install new brake hose fitting gaskets.

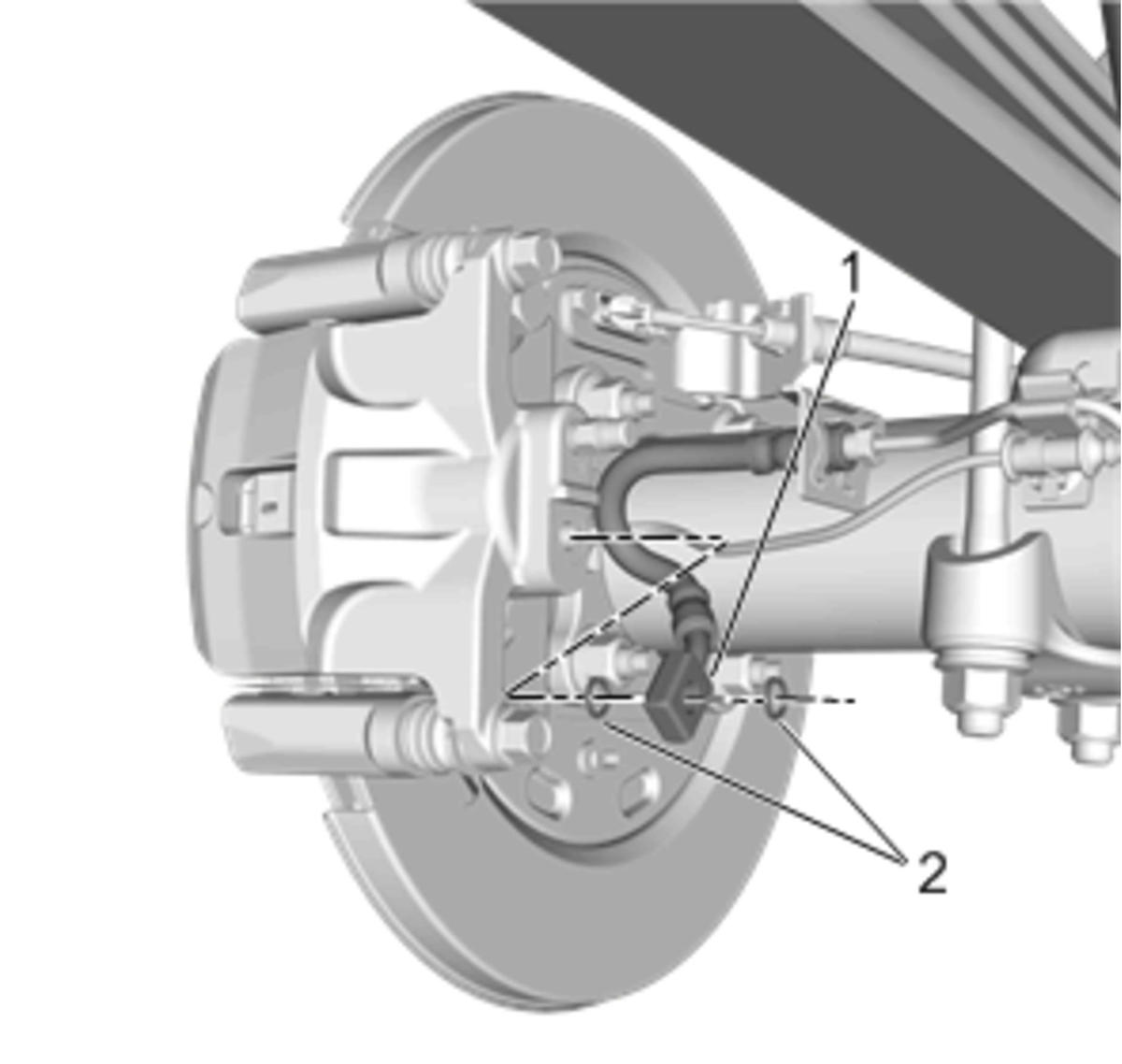

Position the brake hose fitting (1) with 2 new brake hose fitting gaskets (2) to the rear brake caliper.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

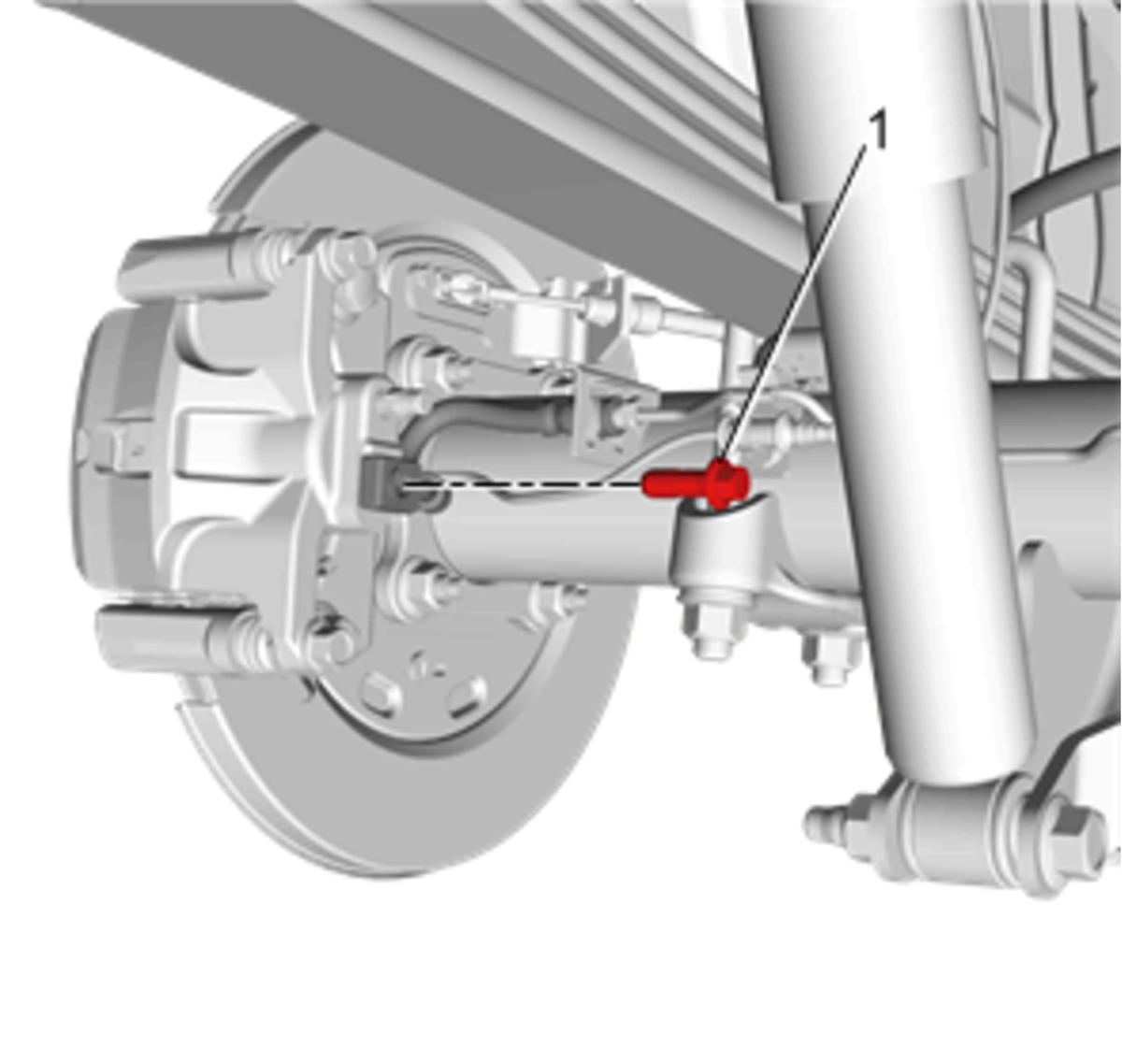

Install the brake hose fitting bolt (1) and tighten to 34 N.m (25 lb ft).
Courtesy of GENERAL MOTORS COMPANY

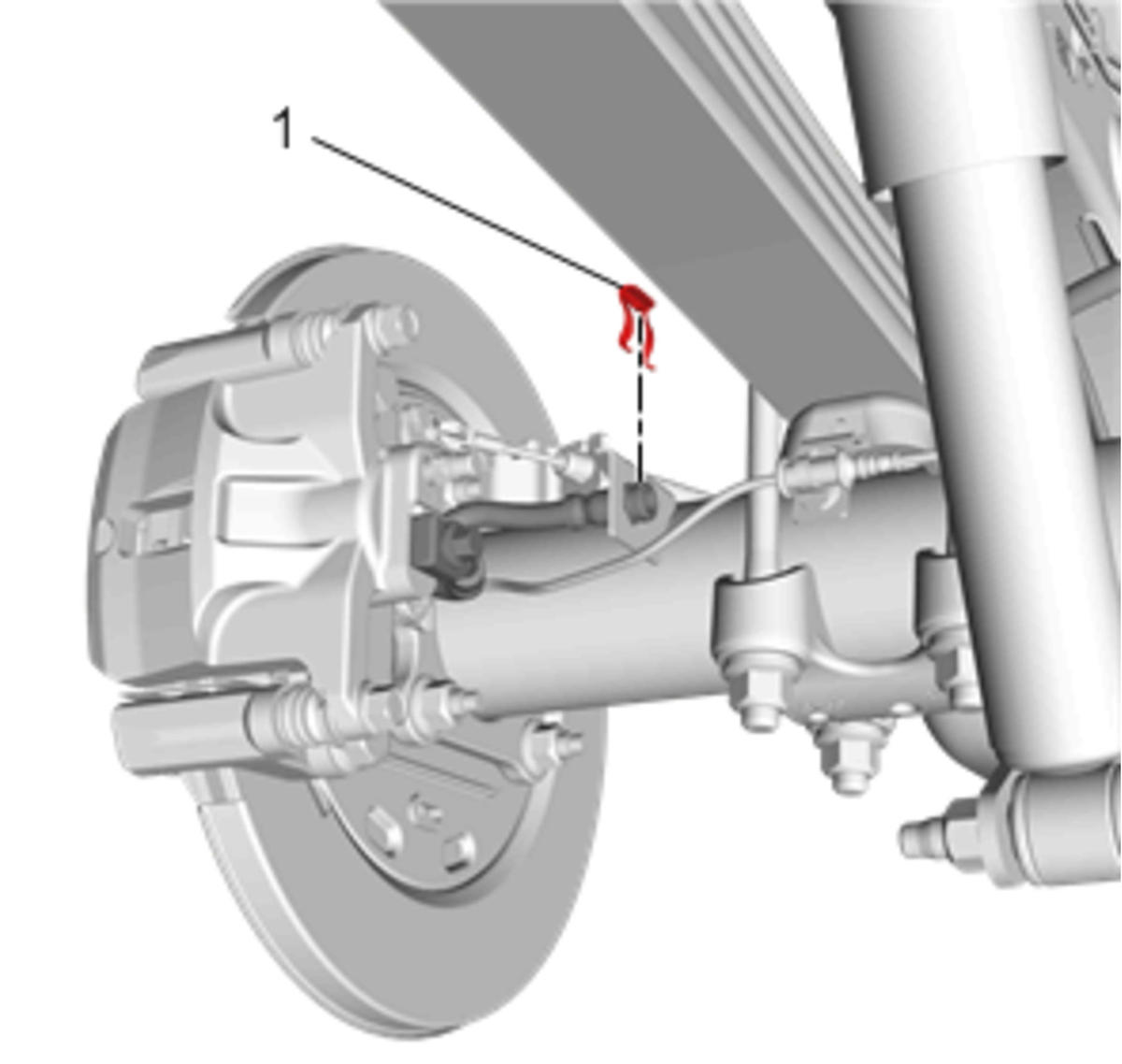

Position the rear brake hose to the rear axle bracket and install the brake hose retaining clip (1).
Courtesy of GENERAL MOTORS COMPANY

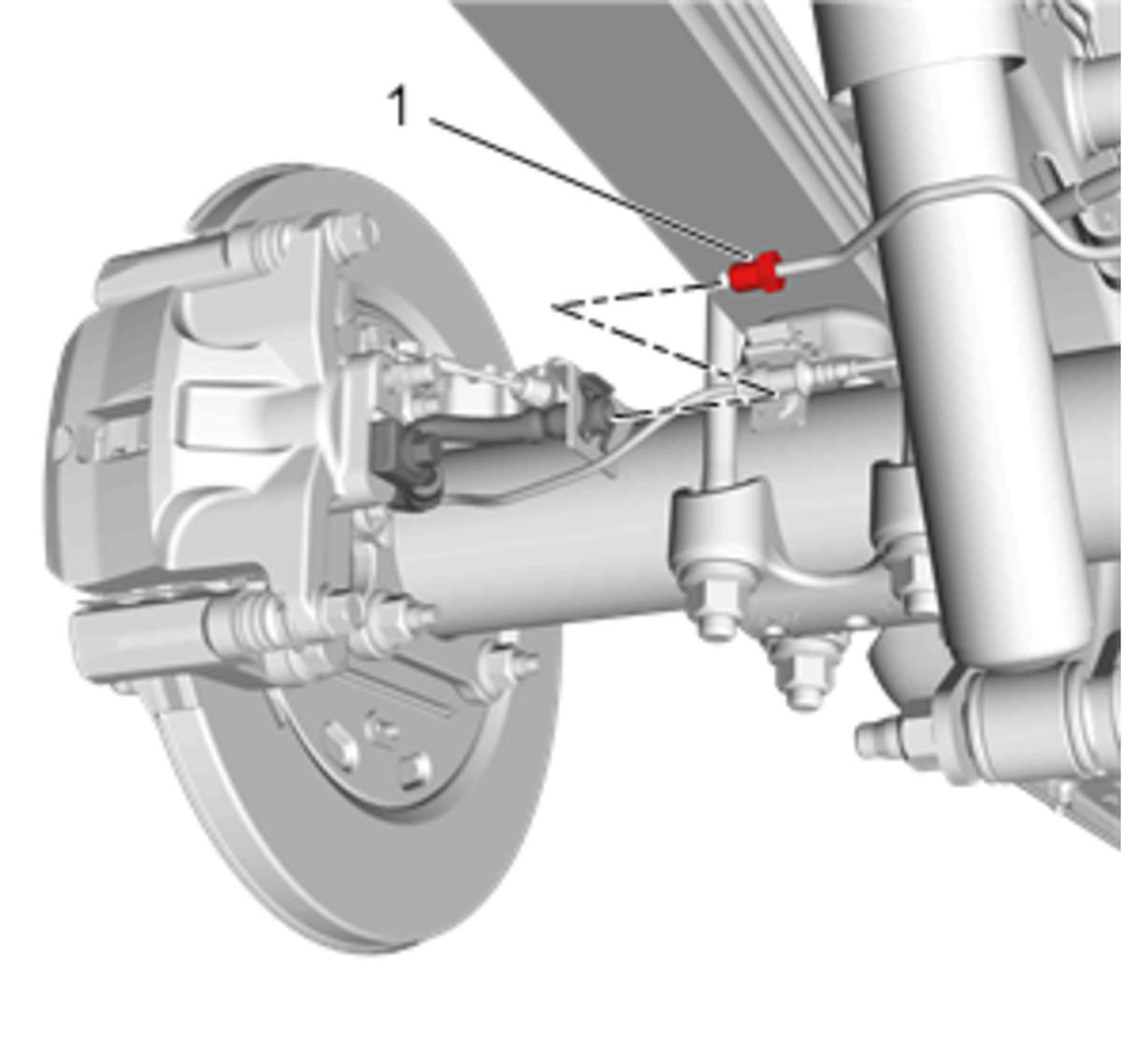

Install the brake pipe fitting (1) to the rear brake hose and tighten the fitting to 16 N.m (12 lb ft).
Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) , or Hydraulic Brake System Bleeding (Pressure) .
