Installation Procedure

  1. Power Brake Booster Vacuum Hose - Install

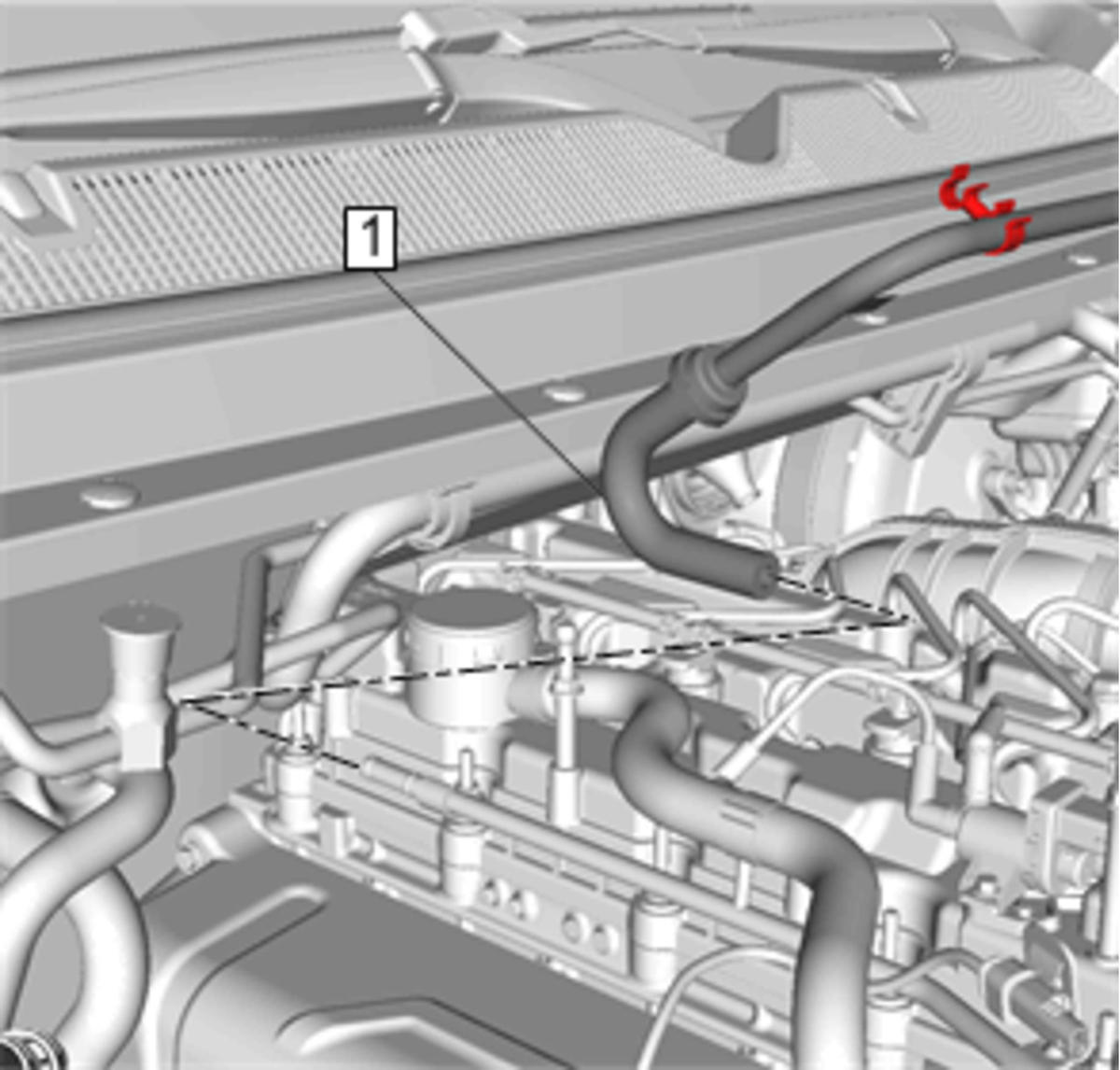

  2. GM4090808Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Vacuum Hose (1) @ Vacuum Pump Pipe - Install

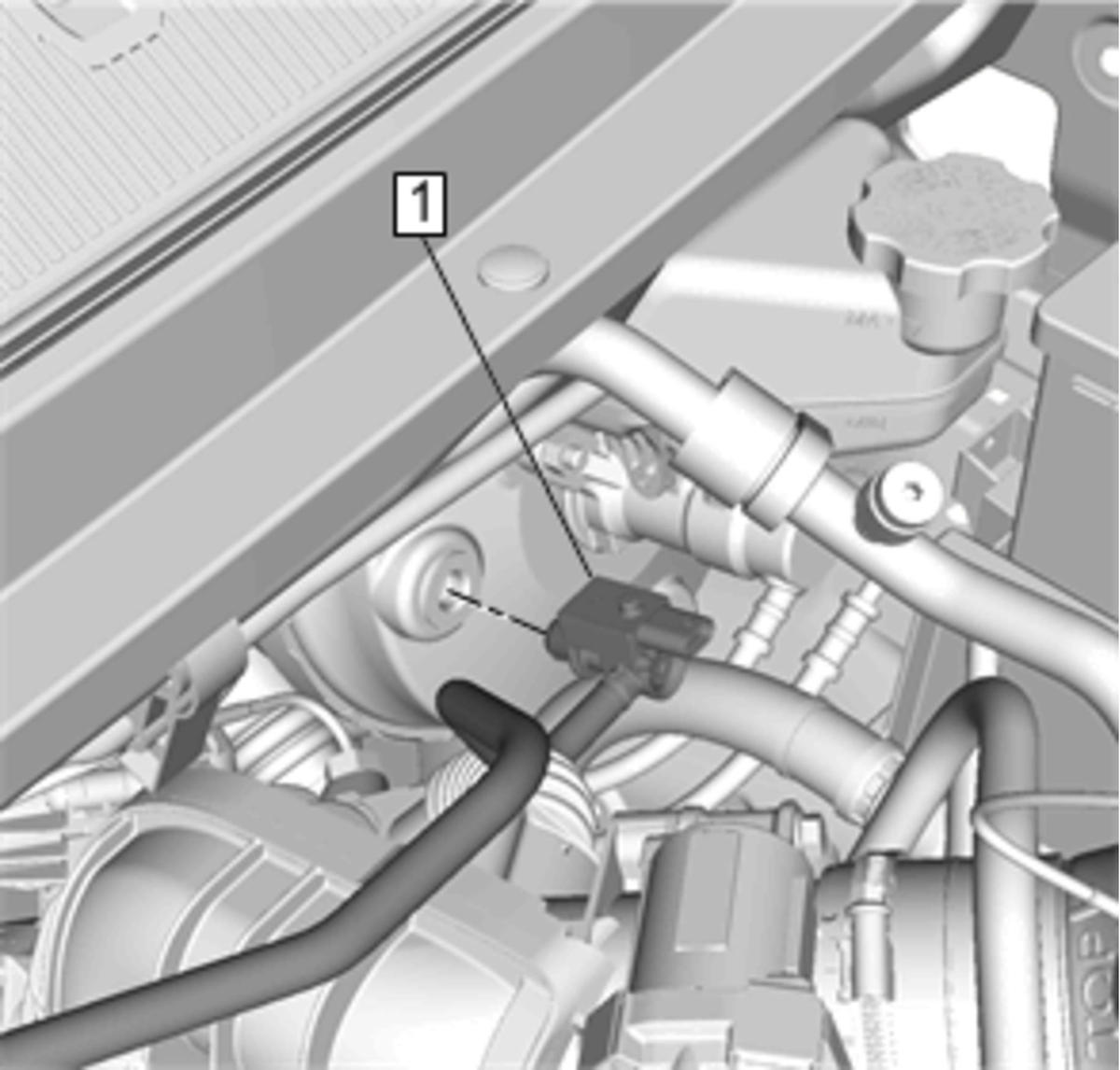

  3. GM4090804Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    A small amount of denatured alcohol may be used to ease assembly.

    Power Brake Booster Vacuum Sensor (1) - Install

  4. Connect the power brake booster vacuum sensor electrical connector.
  5. Intake Manifold Cover Replacement - Install
