Installation Procedure

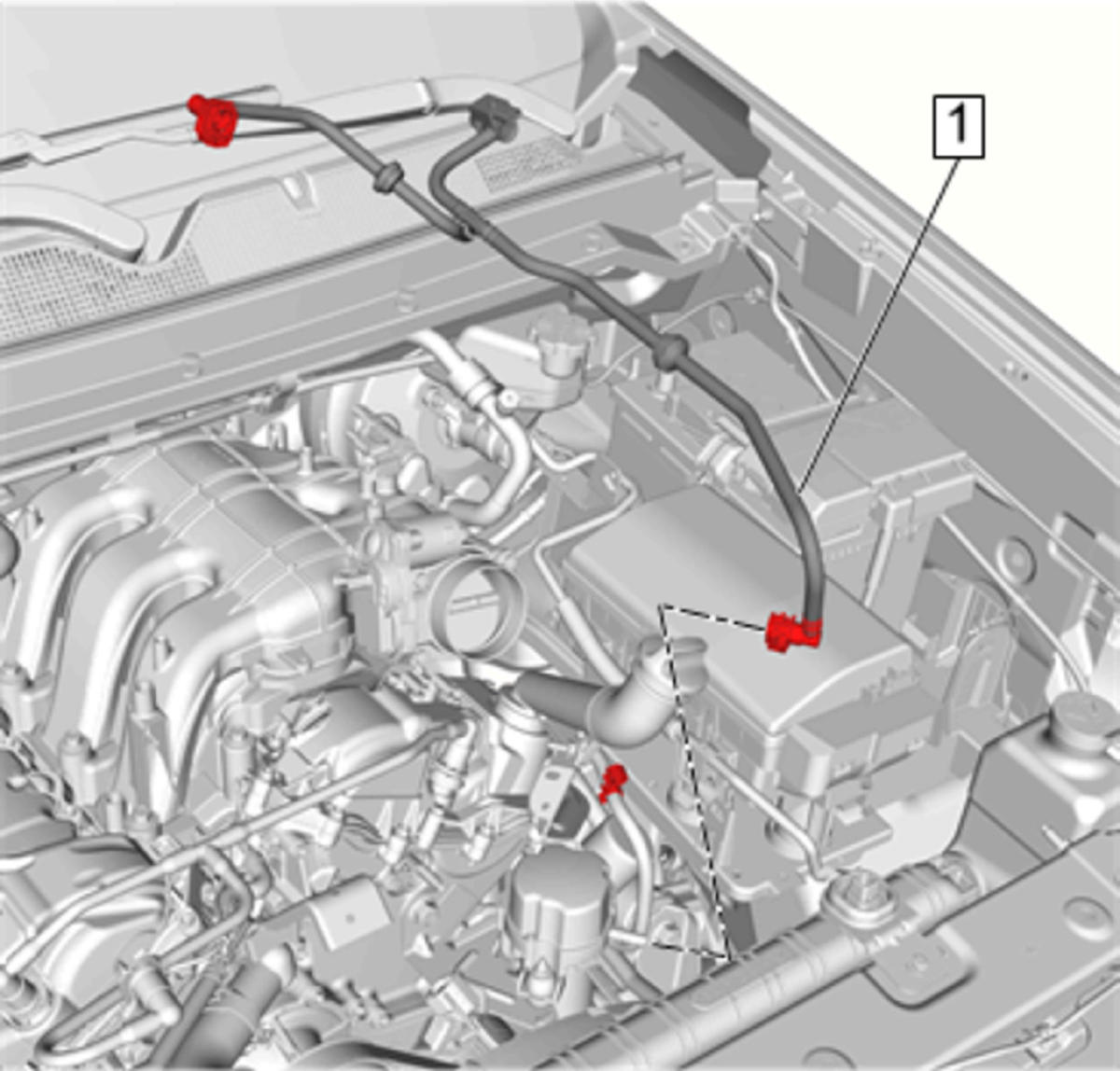

  1. GM4565728Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Vacuum Hose (1) - Install

  2. GM4565723Courtesy of GENERAL MOTORS COMPANY

    Quick Connect Fitting (1) @ Power Brake Booster Pump - Connect

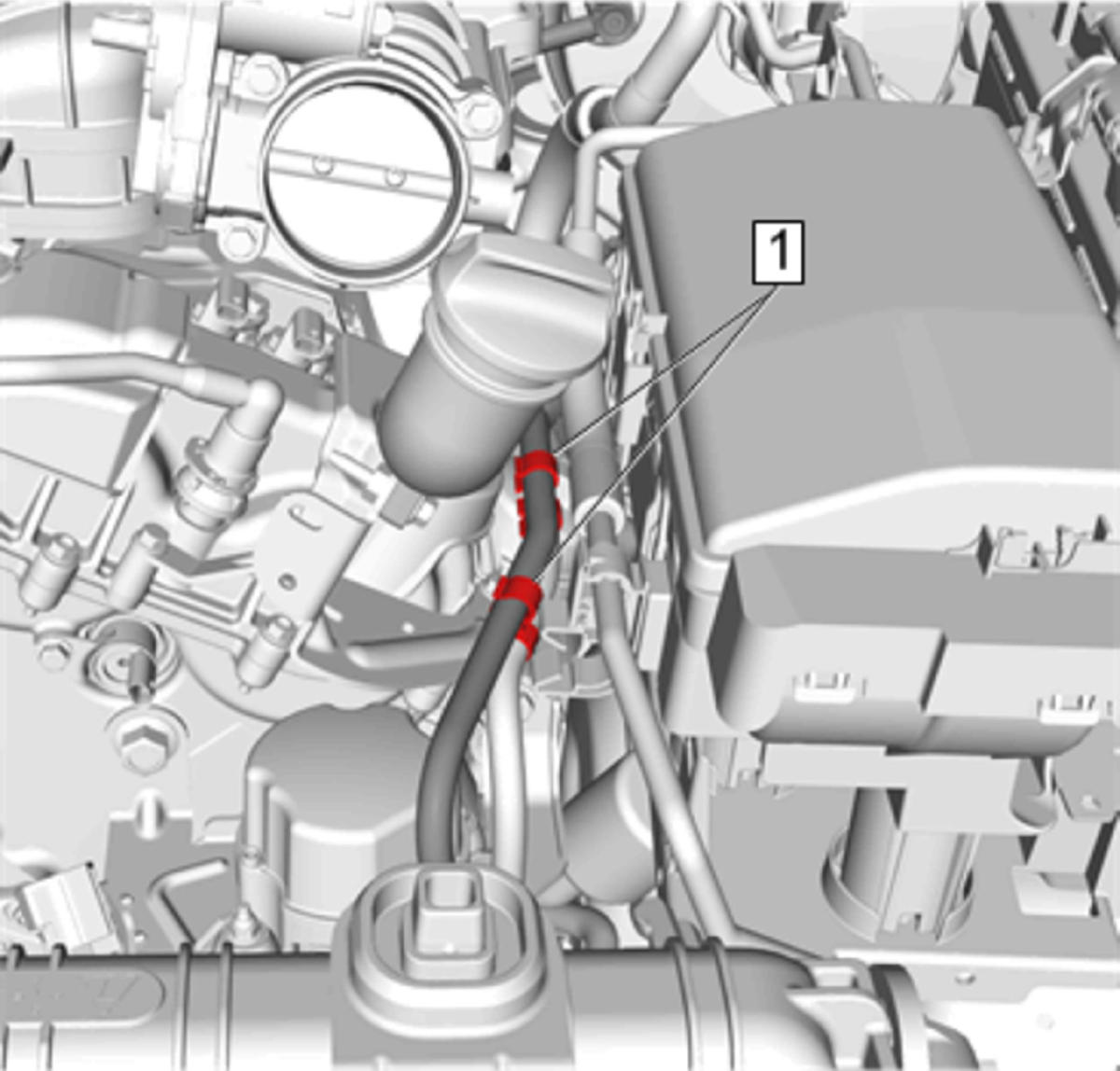

  3. GM4565717Courtesy of GENERAL MOTORS COMPANY

    Clip (1) @ Power Brake Booster Vacuum Hose - Secure [2x]

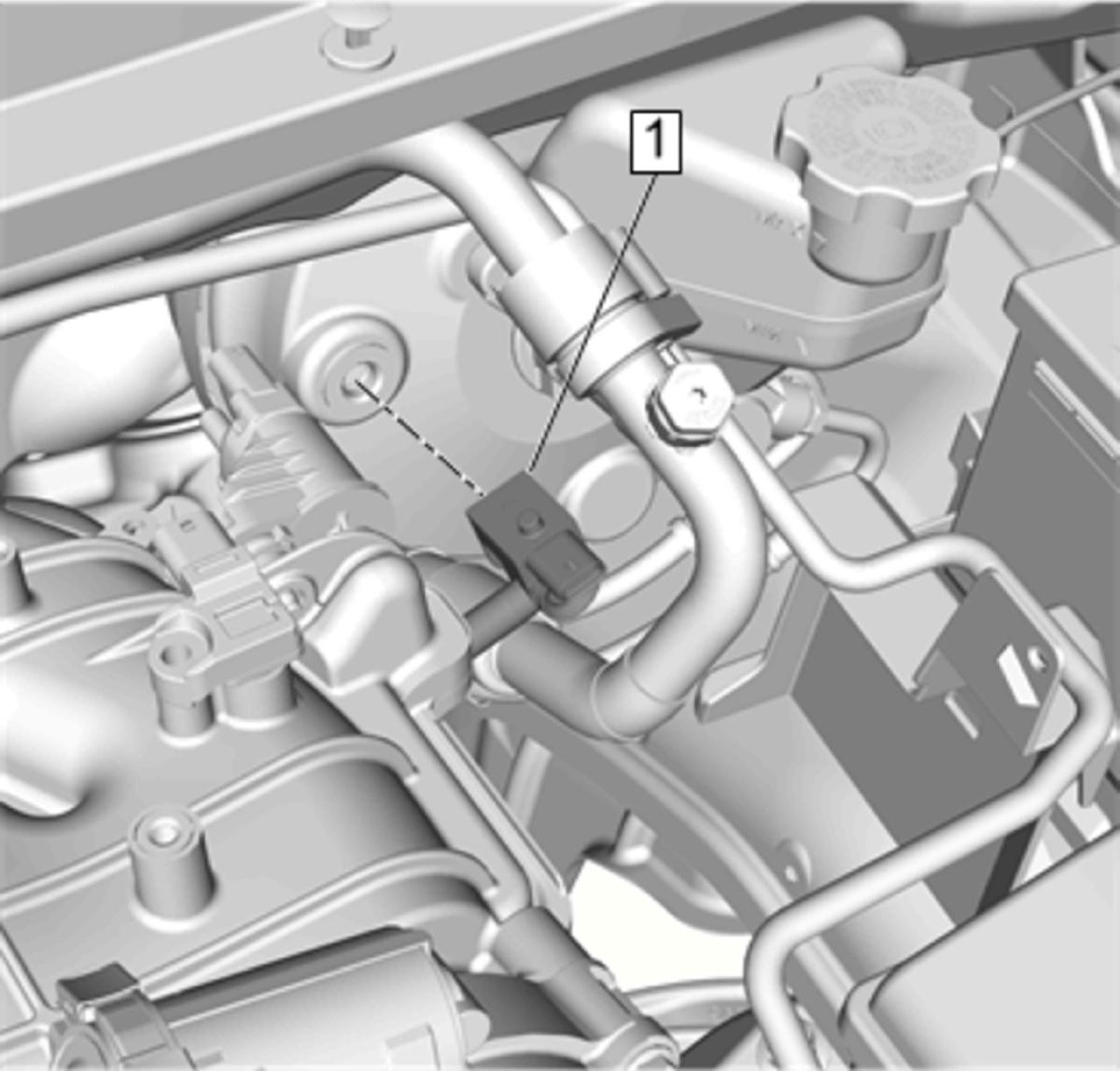

  4. GM4565713Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Vacuum Sensor (1) - Install

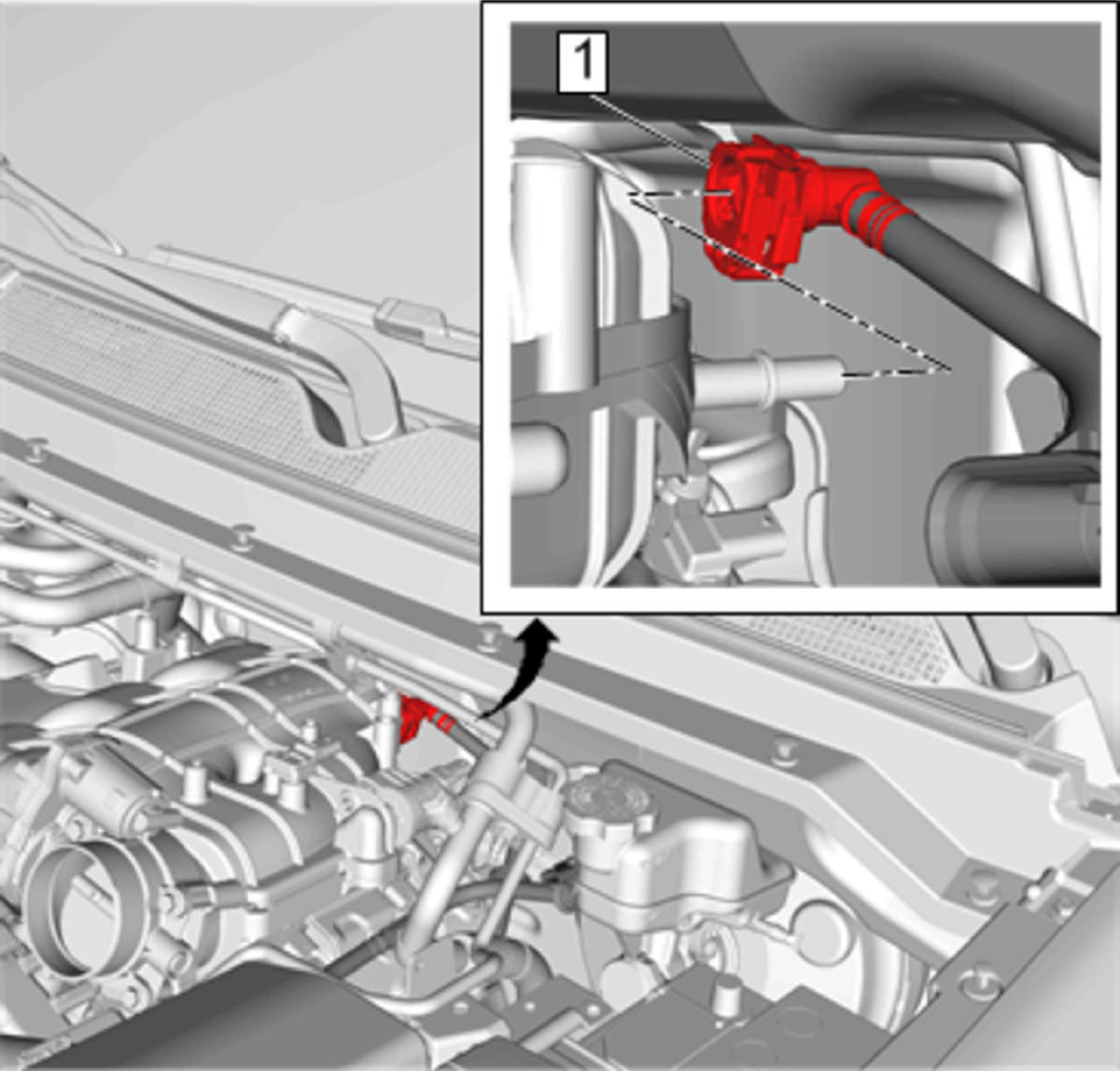

  5. GM4565709Courtesy of GENERAL MOTORS COMPANY

    Quick Connect Fitting (1) @ Intake Manifold - Connect

  6. Connect the power brake booster vacuum sensor electrical connector.
